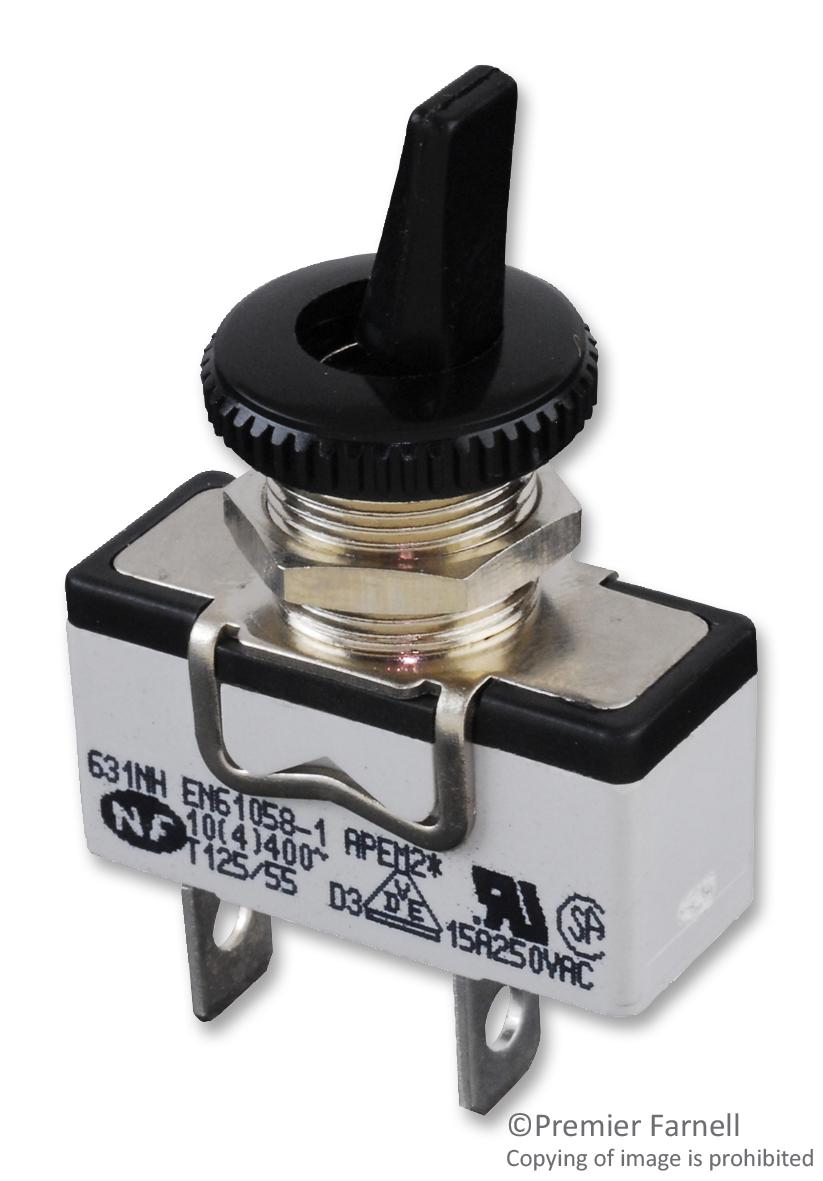

Apem 631NH2 High-Current Toggle Switch
High-current single-pole toggle switch featuring durable construction and versatile options for sealing and actuator customization. Designed to handle demanding electrical loads with reliable contact resistance and high insulation resistance, this switch is suitable for industrial and automation applications. It includes details such as maximum current ratings, temperature range, and compatibility with panels up to 4.5 mm thick. The switch’s robust mechanism and approved ratings ensure safety and longevity in high-current environments, making it an essential control component for automation and machinery control systems.
Apem 631NH2 High-Current Toggle Switch Specifications:
- Maximum current/voltage ratings: see tables below
- Peak current: 30 A max. during 1/2 sine, 250 VAC
- Initial contact resistance: 10 mΩ max.
- Insulation resistance: 1,000 MΩ min. at 500 VDC
- Dielectric strength: 2,000 Vrms 50 Hz between terminals; 2,500 Vrms 50 Hz between terminals and frame
- Electrical life: 10,000 cycles at full load
- Case: polyester UL94-VO
- Actuator: brass, nickel plated
- Contacts: silver/nickel alloy
- Panel thickness: 4.5 mm max.
- Torque: 1.50 Nm (1.10 Ft-lb) max.
- Operating temperature: -20°C to +55°C (-4°F to +131°F)
Buy the Buy EAO High-Current Toggle Switch Part Number 631NH2 Online
Purchase the high-current toggle switch online to benefit from quick delivery and competitive prices. Engineered for industrial environments, it offers reliable switching with peak current handling of 30 A at 250 VAC. The switch features a robust polyester case, nickel-plated brass actuator, and silver/nickel contacts. Suitable for panels up to 4.5 mm thick, it supports 10,000 cycles at full load and maintains excellent insulation resistance. Perfect for automation, machinery, and demanding electrical control solutions, available now at your fingertips.
Order your EAO Series600H 631NH2 durable toggle switch today and ensure reliable high-current control for demanding industrial applications.
Frequently Asked Questions
Where can I buy Apem 631NH2?
You can click on the BUY or RFQ button to purchase 631NH2 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part 631NH2?
You can download the 631NH2 datasheet or visit the Apem website for support.
Who is the manufacturer of 631NH2?
Apem
