Apem Q8F1CXXY12E LED Indicator

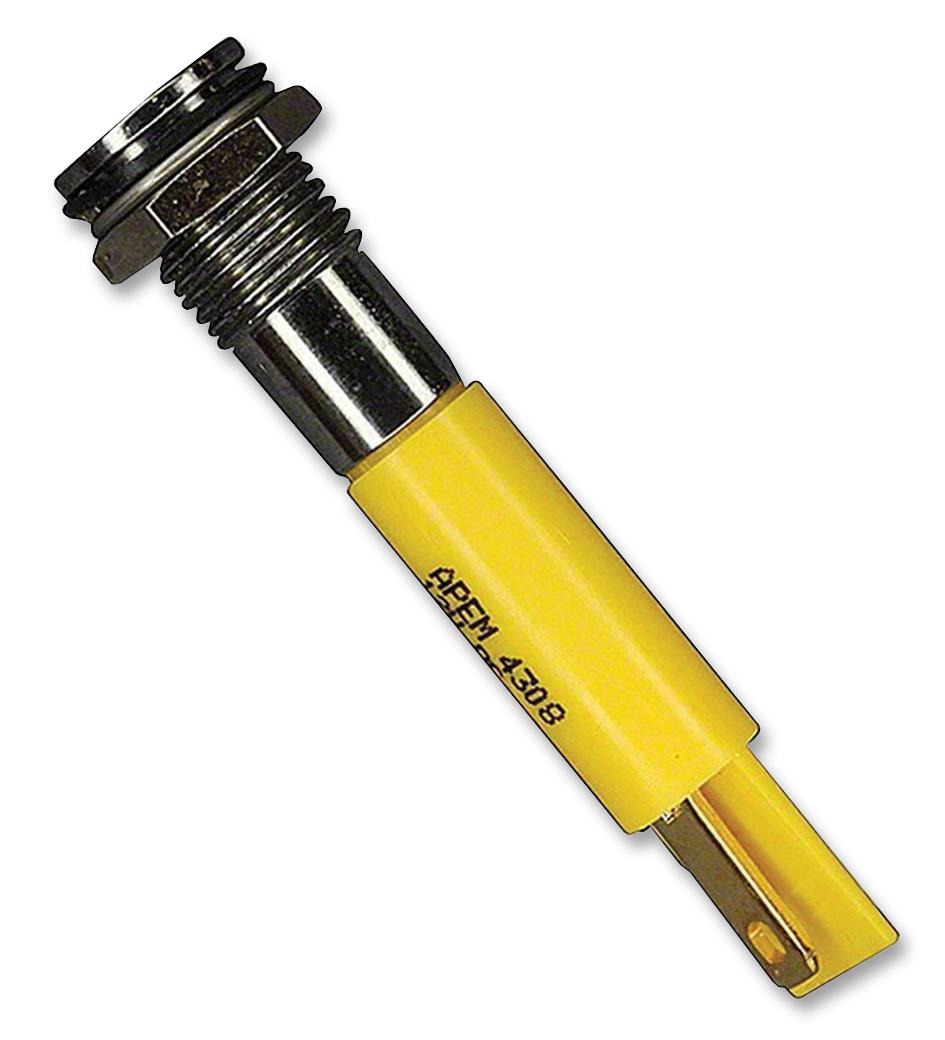

This 8mm panel mount LED indicator features a bright chrome bezel with an IP67 sealing rating, making it suitable for outdoor applications. It utilizes a yellow LED that operates at 12 volts DC, providing high visibility with a luminous intensity of 2,500 med. The indicator includes a recessed, flush bezel style with solder lug terminals and a standard 200mm wire termination. It is designed for durability with options for sealing and various mounting styles, ensuring reliable performance in harsh environments. Perfect for signaling and status indication in industrial and outdoor settings.
Apem Q8F1CXXY12E LED Indicator Specifications:
- Size: 8mm panel mount
- Bezel Finish: Bright chrome with optional recessed or flush styles
- Sealing: IP67 waterproof sealing (EN60529)
- LED Color: Yellow (standard), with options for other colors and bi-color
- Operating Voltage: 12V DC (10.8 to 13.2VDC), 20mA current
- Luminous Intensity: 2,500mcd
- Viewing Angle: 30-100° depending on model
- Max Reverse Voltage: 5V
- Max Panel Thickness: 7mm
- Terminals: Solder lug/faston, 200mm wire or pins
- Material: Brass bezel, epoxy lens, sealed for outdoor use
- Life Expectancy: Approx. 100,000 hours
- Operating Temperature Range: -40°C to +85°C
- Additional Features: Optional IP67 sealing, fixing nut and spring washer included
Buy the Buy APEM LED Indicator Part Number Q8F1CXXY12E Online
Purchase the APEM LED Indicator now online to ensure reliable signaling in demanding outdoor environments. This 8mm LED features a durable bright chrome bezel with IP67 sealing, perfect for outdoor industrial applications. It operates at 12 volts DC, producing high-intensity yellow light with a luminous brightness of 2,500 mcd, providing excellent visibility from various angles. Its robust construction includes solder lug terminals, a standard 200mm wire, and a recessed, flush bezel design, ensuring longevity and durability under harsh weather conditions. Order today for quick delivery and seamless integration into your control panels or signaling systems.
Buy APEM LED Indicator Q8F1CXXY12E now and experience unmatched reliability and high visibility for outdoor signaling applications.
Frequently Asked Questions
Where can I buy Apem Q8F1CXXY12E?
You can click on the BUY or RFQ button to purchase Q8F1CXXY12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q8F1CXXY12E?
You can download the Q8F1CXXY12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q8F1CXXY12E?
Apem
