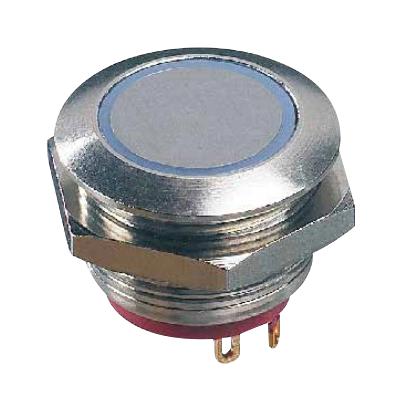

Apem AV9SLD2011001K Tactile Security Switch
The AV series tactile security pushbutton switches with overmolded actuator are designed for industrial use, combining tactile feedback with illuminative options for enhanced visibility. They feature IP67/IP69K sealing, operating in temperatures from -30°C to +70°C, and offer a maximum resistive load of 50 mA at 24VDC. Made from durable materials like PBT, brass, and stainless steel, these switches support various mounting options, LED configurations, and overmolding colors. Suitable for safety and control applications demanding reliable switching performance and environmental resilience.
Apem AV9SLD2011001K Tactile Security Switch Specifications:
- Panel sealing: IP67 or IP69K according to IEC 60529
- Operating temperature: -30°C to +70°C
- Max current/voltage: 50 mA at 24 VDC
- LED voltage: 2 V (3 V max.), current: 20 mA (colored LEDs) or 10 mA (others)
- Contact resistance: 100 mΩ max.
- Insulation resistance: 1,000 MΩ at 500 VDC
- Dielectric strength: 500 Vrms between terminals, 2,000 Vrms to frame
- Electrical life: 1,000,000 cycles
- Travel: 0.7 mm ± 0.1 mm
- Operating force: 7 N ± 2 N
- Panel thickness: 1 to 6 mm
- Material: Case - PBT UL94-VO, Terminals - brass, gold-plated, Contacts - gold-plated dome
- Actuator: stainless steel with thermoplastic overmolding
- Mounting: @ 19.2 mm or @ 22.2 mm panel cut-out, with hex nuts
- Bushing material options: nickel plated brass, chrome plated brass, stainless steel, gold plated brass
- LED options: blue, black, green, grey, yellow, red, white, translucent, amber
- Sealing options: no seal or IP69K with external gasket
- Mounting accessories: standard hardware including hex nuts, additional hardware available
Buy the Industrial Components AV Series – Reliable Tactile Switches for Industrial Applications
Purchase AV series tactile security pushbutton switches online today to benefit from their robust IP67/IP69K sealing, high durability, and versatile mounting options. Designed for industrial environments, these switches ensure reliable operation even in harsh conditions, with options for illumination, various actuator styles, and materials. Secure your control panels and safety systems with these high-performance switches that offer long cycle life and excellent electrical characteristics. Buy online now and experience quick delivery, quality assurance, and technical support tailored for demanding industrial applications.
Get AV series tactile security pushbutton switches today—built for precision, environmental resilience, and long-lasting durability.
Frequently Asked Questions
Where can I buy Apem AV9SLD2011001K?
You can click on the BUY or RFQ button to purchase AV9SLD2011001K from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part AV9SLD2011001K?
You can download the AV9SLD2011001K datasheet or visit the Apem website for support.
Who is the manufacturer of AV9SLD2011001K?
Apem
