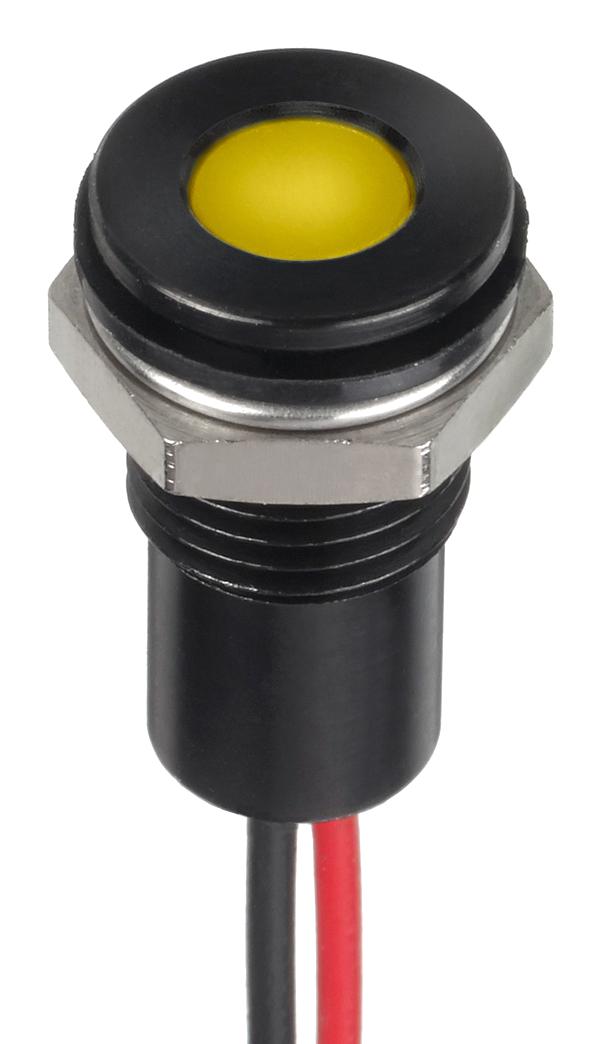

Apem Q8F5BXXHY12E Panel Mount LED Indicator
The Q8 series panel mount LED indicators feature 8 mm size with a variety of bezel styles including prominent, recessed, and flush. They offer high brightness LEDs, with options for diffused or water clear lenses, and various terminal configurations such as solder lug, faston, or wire terminations. These indicators are designed for industrial environments with IP67 sealing, operating temperatures from -40°C to +85°C depending on body material, and a long lifespan of 100,000 hours. Suitable for panel thickness up to 7 mm, they are ideal for status indication and control panels in automation and manufacturing facilities.
Apem Q8F5BXXHY12E Panel Mount LED Indicator Specifications:
- Size: 8 mm
- Bezel Styles: Prominent, recessed, flush
- Lens: 5 mm diffused epoxy or water clear
- Terminals: Solder lug, faston, wires, pins
- Sealing: IP67 option
- Operating Temp Range: -40°C to +85°C (epoxy body), -30°C to +65°C (plastic body)
- Max Reverse Voltage: 5 V
- Viewing Angle: 30-100°
- Life Expectancy: 100,000 hours
- Panel Thickness: Max 7 mm
- LED Types: Standard, super-bright, hyper-bright
- LED Colors: Red, green, yellow, blue, white, orange, bi-color, tri-color
- Operating Voltages: 2.0 to 33 VDC, 110 VAC, 220 VAC, with various current ratings
- Material: Plated brass bezel in chrome, black, satin grey, or stainless steel 316L in flush version
Buy the Buy Q8 series Panel Mount LED Indicators Part Number Q8F5BXXHY12E Online
Order the Q8F5BXXHY12E panel mount LED indicator online and enhance your control panels with high-brightness LEDs, IP67 sealing, and multiple terminal options. Designed for durability in harsh environments, these indicators offer reliable service with a lifespan of 100,000 hours. Perfect for automation, machinery, and industrial equipment, they provide versatile mounting styles and various LED colors to suit your specific application needs. Enjoy fast delivery and trusted quality by purchasing directly from authorized distributors.
Get Q8F5BXXHY12E high-brightness LED indicators today—built for industrial environments with long-lasting durability and versatile mounting options.
Frequently Asked Questions
Where can I buy Apem Q8F5BXXHY12E?
You can click on the BUY or RFQ button to purchase Q8F5BXXHY12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q8F5BXXHY12E?
You can download the Q8F5BXXHY12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q8F5BXXHY12E?
Apem
