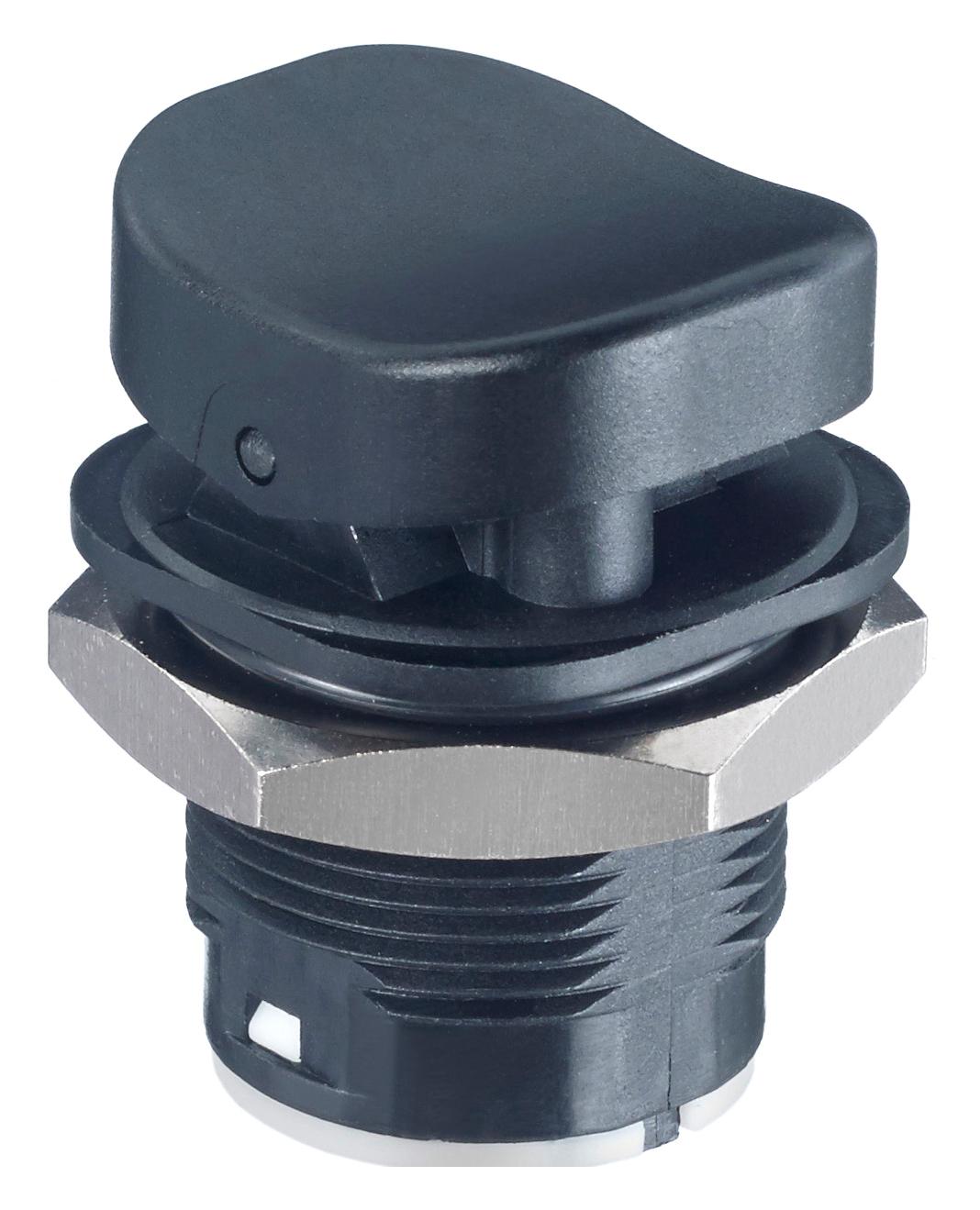

Apem FNRC64SXX2X Sealed rocker switch
The FNR series sealed rocker switches are designed for high-performance industrial applications with excellent front panel sealing (IP69K), and a wide operating temperature range of -40 °C to +85 °C. Engineered with gold alloy contacts, durable PBT cases, and PA6-6 actuators, these switches support up to 24 VDC with currents between 0.03 to 1 A. They feature various electrical functions including 2-position, 3-position, and illuminated options, suitable for demanding environments demanding reliability and easy installation.
Apem FNRC64SXX2X Sealed rocker switch Specifications:
- Maximum voltage rating: 24 VDC
- Current rating: 0.03 to 1 A
- Operating temperature: -40 °C to +85 °C
- Material: Gold alloy contacts, PBT case, PA6-6 actuator
- Mechanical life: 1,000,000 cycles
- Total travel: 15°
- Panel sealing: IP69K
- Operating force: 5 N+1
- Contact Resistance: <100 mohms
- Insulation Resistance: >10 Gohms at 500 VDC
- Dielectric Strength: 1000 Vrms
- LED options: Blue, Green, Red, Yellow, White (20 mA typical), with resistor value based on supply voltage
- Connectors: Molex options for illuminated and non-illuminated versions
Buy the BrandName FNRC64SXX2X – Reliable Sealed Rocker Switch for Industrial Applications
Experience the superior performance of the BrandName FNRC64SXX2X sealed rocker switch. Designed for durability and ease of installation, it features IP69K sealing, gold alloy contacts, and a variety of electrical options including illuminated models. Ideal for industrial control panels requiring high resistance to dust, moisture, and harsh conditions. With a mechanical life of 1 million cycles and operating temperatures from -40 °C to +85 °C, this switch ensures reliable operation in demanding environments. Order online now for fast delivery!
Get BrandName FNRC64SXX2X today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy Apem FNRC64SXX2X?
You can click on the BUY or RFQ button to purchase FNRC64SXX2X from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part FNRC64SXX2X?
You can download the FNRC64SXX2X datasheet or visit the Apem website for support.
Who is the manufacturer of FNRC64SXX2X?
Apem
