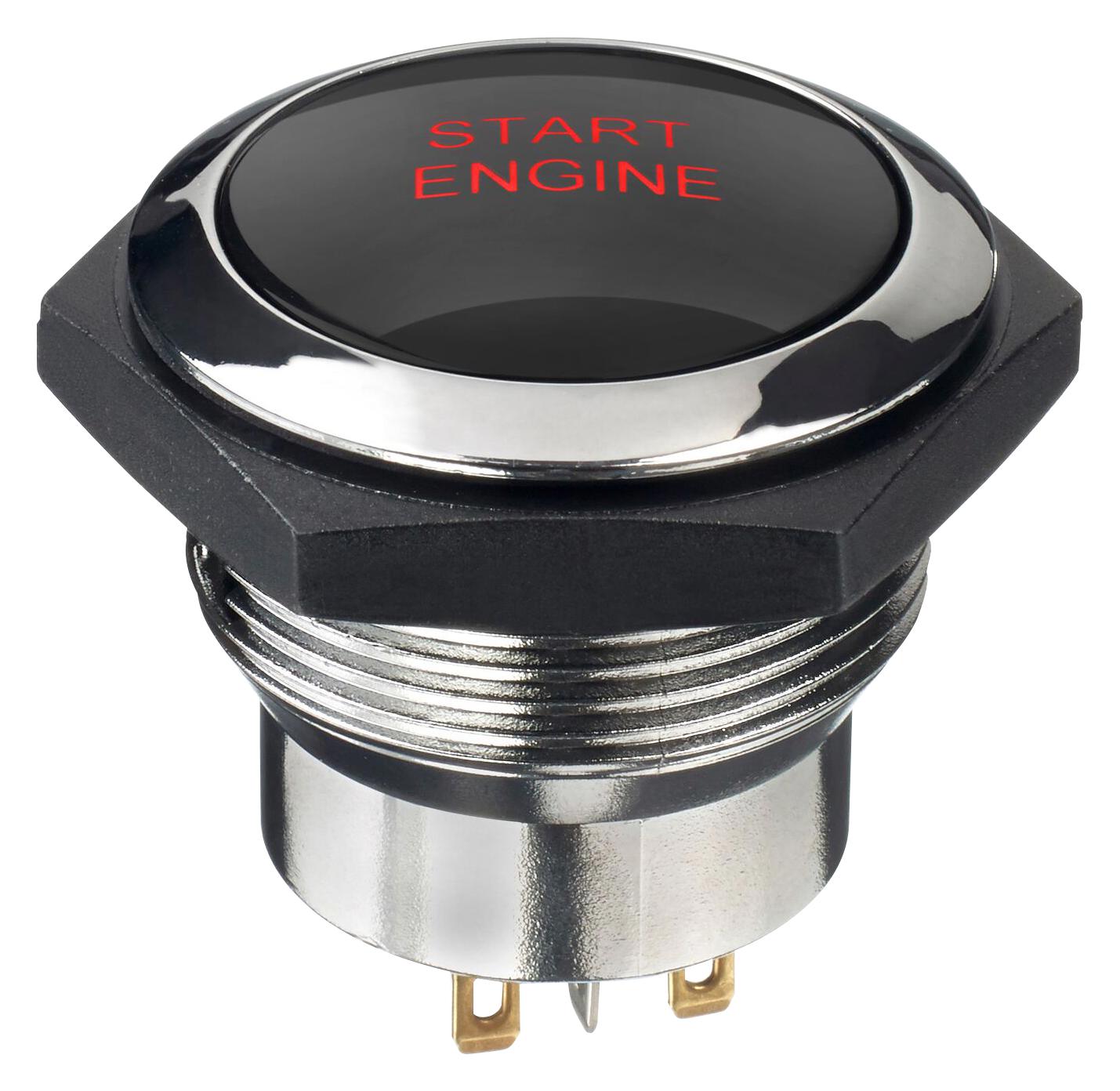

Apem FPDR3D1428F12TV Illuminated Pushbutton Switch
The FP series consists of fully illuminated 30 mm bushing pushbutton switches available in momentary or latching types. These switches feature robust construction with options for snap-in or threaded bushing mounting, and are designed for industrial control applications. They offer excellent electrical insulation with resistances up to 1 GΩ, and can handle currents up to 4A at 12VDC with silver contacts or 200mA with gold plated contacts. The switches are equipped with clearly marked symbols, customizable LED illumination, and are suitable for panel thicknesses of 1.5 mm to 2.5 mm depending on the mounting type. Operating temperature ranges from -40°C to +75°C, ensuring reliable performance in harsh environments.
Apem FPDR3D1428F12TV Illuminated Pushbutton Switch Specifications:
- Diameter: 30 mm
- Mounting: Snap-in for 1.5-2 mm panels, threaded bushing for panels up to 9 mm thick
- Electrical rating: 4A 12VDC resistive load, 200mA 12VDC with gold contacts
- Electrical life: 1 million cycles for momentary, 200,000 for latching models
- Contact resistance: 50 mΩ max
- Insulation resistance: 1 GΩ min at 500VDC
- Dielectric strength: 1,000 Vrms
- Operating temperature: -40°C to +75°C
- Total travel: 2.8 mm ±0.5 mm
- Operating force: 8N ±2N
- Panel thickness: 1.5-2 mm with gasket, up to 2.5 mm without gasket
- Actuator: Round, curved
- LED options: Blue, Green, Red, Yellow, White, Red/Green, Red/Blue
- Symbol marking: Pad printing or laser etching, conforming to ISO standards
- Construction materials: PA46 case, ABS bezel, PA12 actuator
- Certifications: CE Compliant
Buy the APEM FP Series – Reliable Industrial Pushbutton Switches for Control Panels
Enhance your control panel with our robust illuminated pushbutton switches from the FP series. Designed for durability and reliable operation, these 30 mm switches feature optional LED signaling, multiple mounting options, and certified electrical ratings. Perfect for automation, machinery, and industrial applications, they support multiple functions including momentary and latching operations. Easy to install with durable materials, these switches ensure long-lasting performance in demanding environments. Purchase online today for proven quality and fast delivery to meet your project requirements.
Order your APEM Series FP switch today and equip your control panels with dependable, illuminated 30 mm pushbutton switches designed for rugged industrial use.
Frequently Asked Questions
Where can I buy Apem FPDR3D1428F12TV?
You can click on the BUY or RFQ button to purchase FPDR3D1428F12TV from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part FPDR3D1428F12TV?
You can download the FPDR3D1428F12TV datasheet or visit the Apem website for support.
Who is the manufacturer of FPDR3D1428F12TV?
Apem
