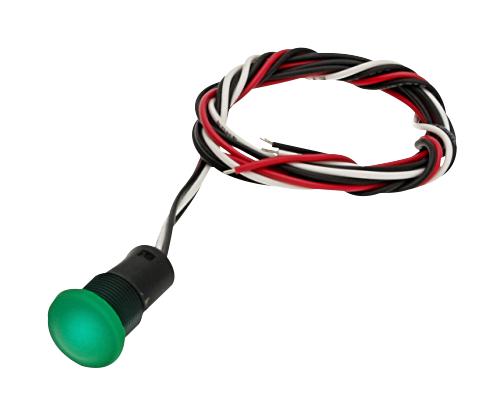

Apem IXR3W13W Illuminated Pushbutton Switch
The IX series illuminated pushbutton switch offers high durability and environmental resistance, suitable for harsh conditions with IP67/IP69K sealing. It features a compact design with backlit markings, strong tactile feedback, and an actuator diameter of 12 mm. Capable of withstanding shocks up to 100 g and salt spray exposure, it supports electrical ratings of 100 mA at 28 VDC and 2 A at 28 VDC, making it ideal for industrial control panels requiring reliable operation and clear LED illumination in tough environments.
Apem IXR3W13W Illuminated Pushbutton Switch Specifications:
- Panel thickness: 2 to 8mm
- Actuator diameter: 12 mm
- Total travel: 2 mm (+0.3 mm)
- Operating temperature: -40 °C to +85 °C
- Shock resistance: 100 g IEC 512-4, test 6c
- Sealing: IP67 front panel, IP69K according to DIN 40050-9
- Electrical ratings: 100 mA 28 VDC, 2 A 28 VDC
- Contact resistance: 100 mΩ max
- Insulation resistance: 1 GΩ at 500 VDC
- Dielectric strength: 1500 Vrms
- LED voltage: Red 19V, Yellow 23V, Green 32V, White 33V
- LED current: 20 mA
- Materials: Case thermoplastic UL94-VO, actuator silicone, contacts brass gold plated
- Soldering temperature: max 320 °C for 3 sec
- Actuation force: approximately 7 N
Buy the Generic Brand IXR3W13W – Reliable Pushbutton Switch for Industrial Applications
Enhance your industrial control systems with this durable, IP67/IP69K rated illuminated pushbutton switch. Designed for harsh environments, it features a 12 mm bushing, LED backlighting with multiple color options, and robust electrical ratings. Its compact construction and high shock resistance make it ideal for control panels subjected to demanding conditions. Easy to install, with simplified wiring and reliable sealing, this switch ensures long-lasting operation and clear visual feedback, making it the perfect choice for industrial automation and machinery control systems.
Order your Generic Brand Series IXR3W13W pushbutton switch today and give your industrial controls the dependable durability they need in harsh environments.
Frequently Asked Questions
Where can I buy Apem IXR3W13W?
You can click on the BUY or RFQ button to purchase IXR3W13W from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part IXR3W13W?
You can download the IXR3W13W datasheet or visit the Apem website for support.
Who is the manufacturer of IXR3W13W?
Apem
