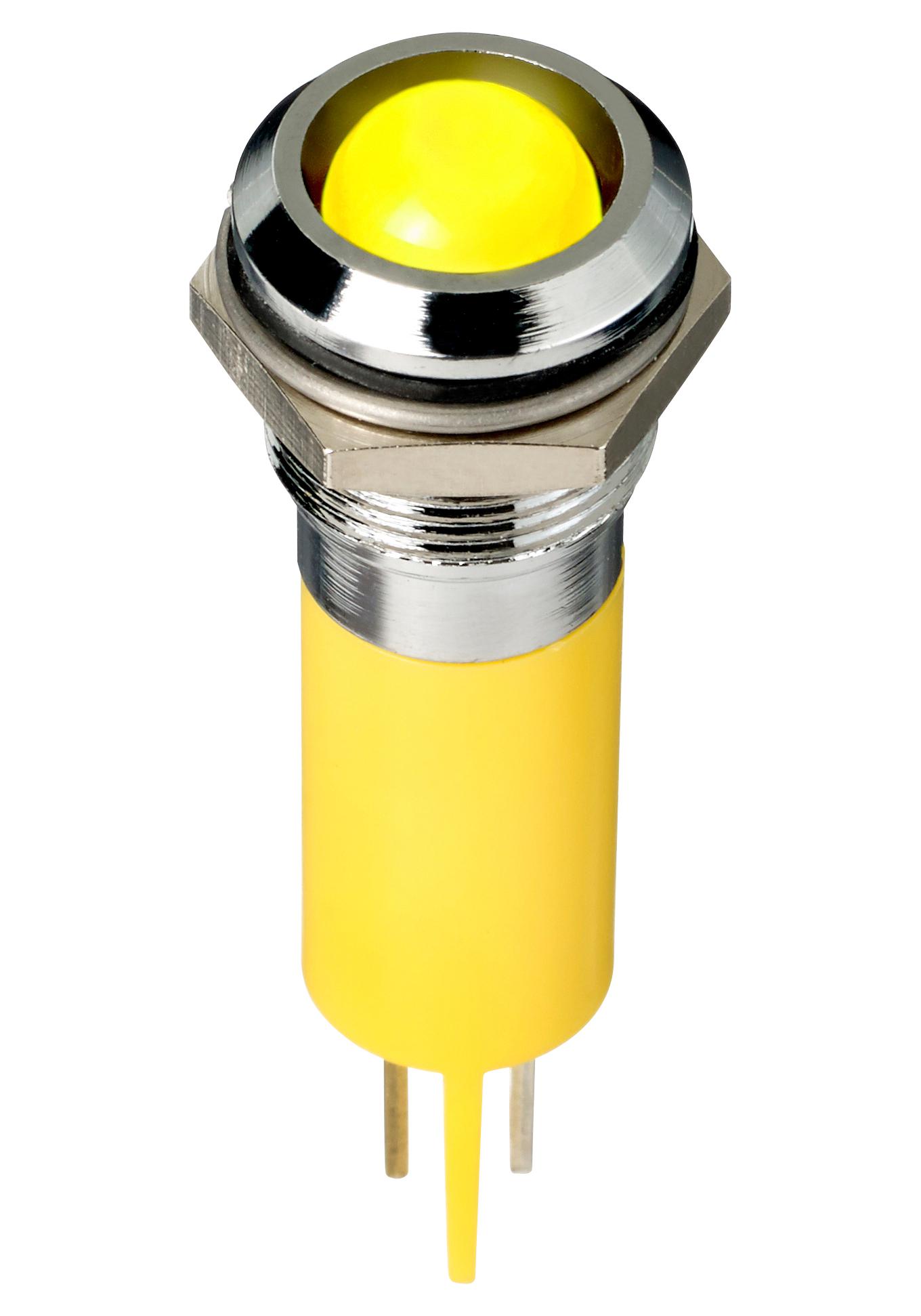

Apem Q127P1CXXHY12E Panel Mount LED Indicator
The Q12-7 series comprises panel mount LED indicators with a 12.7 mm (0.5 inch) size, designed for reliable visual signaling in industrial environments. Featuring a variety of LED colors including red, green, yellow, blue, white, and orange, these indicators offer super bright and hyper bright illumination options. They support voltage ranges from 2VDC up to 220VAC, with multiple terminal types like solder lug, faston, pins, or wire terminations for versatile installation. With an IP67 sealing option and a life expectancy of 100,000 hours, these indicators are suitable for demanding applications requiring durability and high visibility.
Apem Q127P1CXXHY12E Panel Mount LED Indicator Specifications:
- Size: 12.7 mm (0.5 inch) panel mount
- LED Colors: Red, Green, Yellow, Blue, White, Orange, Bi-color, Tri-color
- Illumination: Super Bright and Hyper Bright LEDs
- Operating Voltage: 2VDC to 220VAC
- Terminal Types: Solder Lug, Faston, Pins, Wires (200 mm long)
- Sealing: IP67 (optional)
- Temperature Range: -30°C to +65°C (plastic body), -40°C to +85°C (epoxy body)
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100°
- Life Expectancy: 100,000 hours
- Material: Bezel of plated brass finished in bright chrome, black, or satin grey; Moulded polycarbonate rear body
- Panel Thickness: Max 7 mm
- Max Reverse Voltage: 5 V
- Current: 20 mA (typically)
- Additional features: Wide voltage support, various terminal styles, sealed and unsealed versions
Buy the Generic 12-7 Series – Reliable Panel Mount LED Indicators for Industrial Applications
Get the reliable panel mount LED indicator from the 12-7 series now available online. Designed for industrial signaling, these indicators come in multiple colors, high brightness options, and various terminal types for easy installation. With an IP67 sealing option and an impressive lifespan, these LEDs withstand demanding environments. Compatible with voltages from 2VDC to 220VAC, they offer versatile mounting and reliable performance for control panels, machinery, and extensive industrial uses. Order today to upgrade your signaling system effortlessly.
Order your Generic Series12-7 LED indicators today and enhance your industrial projects with high brightness and durable signaling solutions.
Frequently Asked Questions
Where can I buy Apem Q127P1CXXHY12E?
You can click on the BUY or RFQ button to purchase Q127P1CXXHY12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q127P1CXXHY12E?
You can download the Q127P1CXXHY12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q127P1CXXHY12E?
Apem
