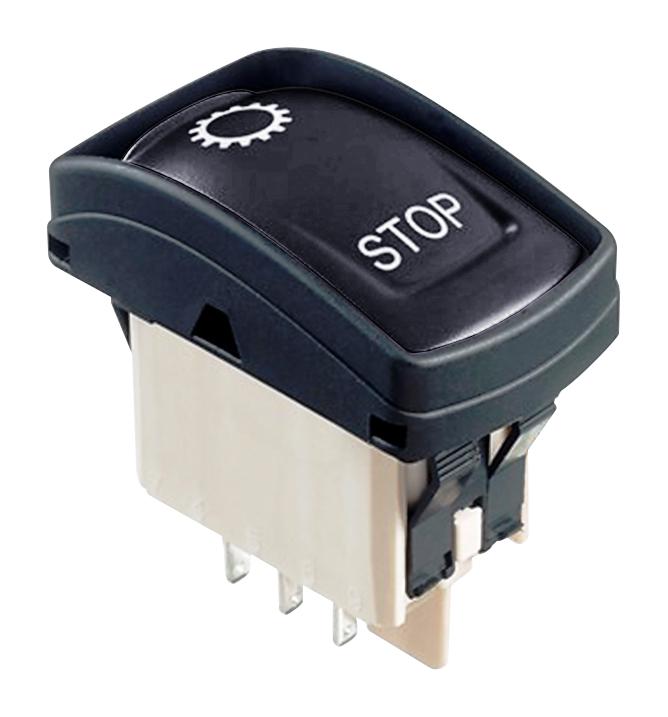

Apem KH147AAZEFG22N01XX02 Power rocker switch
The KH series power rocker switches feature protection guards, IP69K sealing, and are resistant to salt spray, vibration, and extreme temperatures. They are available with illuminated or non-illuminated options, with silver or gold-plated contacts, and suitable for panel thicknesses from 0.8 mm to 4.6 mm. These sturdy switches are designed for industrial applications, offering high electrical ratings with resistive and lamp loads, and a mechanical life of at least 150,000 cycles. They include various symbols, mounting accessories, and guaranteed sealing for harsh environments.
Apem KH147AAZEFG22N01XX02 Power rocker switch Specifications:
- Sealing: IP69K according to DIN 40050-9
- Salt spray resistance: 96 hours according to IEC 512-6
- Vibration resistance: 10-500 Hz / 10 g
- Operating temperature: -40°C to +85°C
- Current/voltage with resistive load: Silver contacts 5A 24VDC, 100,000 cycles; Gold contacts 20mA 12V, 150,000 cycles
- Current/voltage with lamp load: Silver contacts 100W 24VDC, 10,000 cycles; other functions 60W 24VDC
- Contact resistance: 10 mΩ max
- Insulation resistance: 1,000 MΩ min at 500 VDC
- Dielectric strength: 2000 Vrms minimum
- Mechanical life: 150,000 cycles minimum
- Panel thickness: 0.8 mm to 4.6 mm (recommended 2-3.5 mm)
- Materials: Case PA 6-6, actuator ABS, bezel PA 6-6
- Contacts & terminals: Brass, silver grain, silver or gold plated
- Cover sealing: IP69K standard
Buy the Buy KH Series Power Rocker Switch Part Number KH147AAZEFG22N01XX02 Online
Discover the KH series power rocker switch, engineered for industrial use with IP69K sealing, high electrical ratings, and durable construction. Ideal for harsh environments, it offers versatile illumination options, robust materials, and excellent resistance to salt spray, vibration, and extreme temperatures. Suitable for panel thicknesses from 0.8 to 4.6 mm, it provides a long mechanical life of 150,000 cycles. Easy to install and equipped with various symbols and accessories, order online now for dependable performance in your critical applications.
Order your KH Series power rocker switch KH147AAZEFG22N01XX02 today and ensure reliable operation in demanding industrial environments.
Frequently Asked Questions
Where can I buy Apem KH147AAZEFG22N01XX02?
You can click on the BUY or RFQ button to purchase KH147AAZEFG22N01XX02 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part KH147AAZEFG22N01XX02?
You can download the KH147AAZEFG22N01XX02 datasheet or visit the Apem website for support.
Who is the manufacturer of KH147AAZEFG22N01XX02?
Apem
