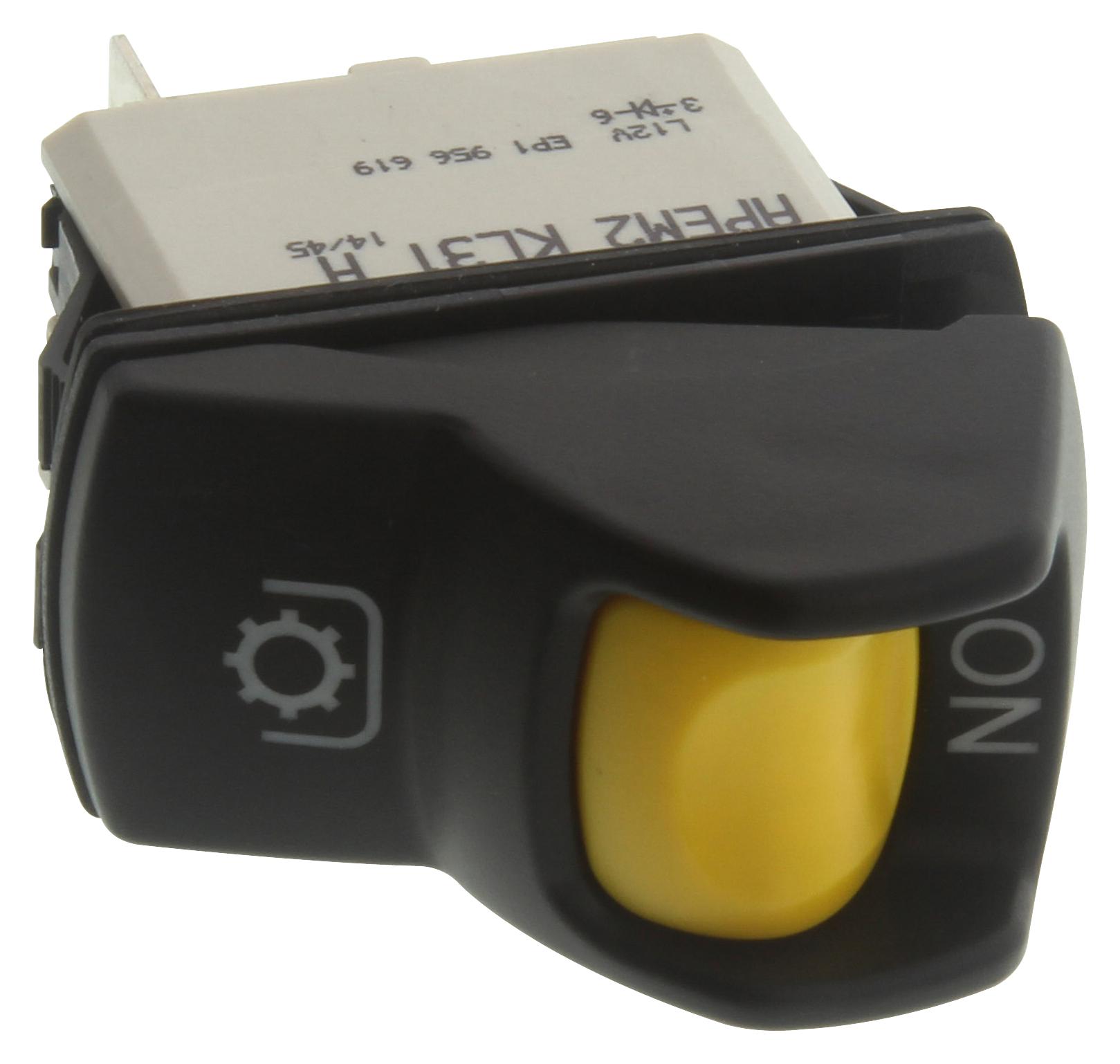

Apem KL315AKEA225N0160 Locking Power Switch
The KL series locking power rocker switches are rugged, panel-mount switches designed for industrial environments, offering distinct sealed options of IP68 and IP69K. Features include an ergonomic design with laser-etched symbols, illuminated or non-illuminated versions, and a protected position. They have a mechanical life of at least 150,000 cycles, resist harsh conditions with salt spray resistance up to 96 hours, and operate efficiently from -40°C to +85°C. Constructed with durable materials like PA 6-6 case and ABS actuator, these switches suit diverse industrial control applications, ensuring reliable operation in demanding settings.
Apem KL315AKEA225N0160 Locking Power Switch Specifications:
- Sealing options: IP68 front panel, IP69K panel sealing available
- Salt spray resistance: 96 hours according to IEC 512-6 test 11f
- Operating temperature: -40°C to +85°C
- Mechanical life: minimum 150,000 cycles
- Panel thickness: 0.8 mm to 4.6 mm, recommended 2-3.5 mm
- Materials: Case made of PA 6-6, actuator of ABS or elastomeric membrane
- Contacts: Brass, silver grain, silver plated or gold plated
- Electrical ratings: 5 A 24 VDC, 10 A 24 VDC, 20 A 12 VDC, etc.
- Initial contact resistance: 10 mΩ max
- Insulation resistance: at least 1,000 MΩ at 500 VDC
- Dielectric strength: ≥2000 Vrms between terminals
Buy the APEM KL315AKEA225N0160 – Reliable Locking Power Rocker Switch for Industrial Applications
Order the reliable locking power switch online today to ensure robust performance in industrial environments. With sealed IP68/IP69K options and high mechanical durability, this switch is ideal for demanding control applications. It features laser-etched symbols for clarity, operates efficiently from -40°C to +85°C, and boasts a minimum lifespan of 150,000 cycles. Perfect for panel mounting in rugged settings, it guarantees long-term, trouble-free operation with easy installation and dependable electrical ratings.
Get APEM KL315AKEA225N0160 today—built with durable materials for long-lasting industrial control solutions.
