Apem QS81XXHB110 Panel Mount LED Indicator
The QS series snap-in panel-mount LED indicators are available in multiple colors including red, green, yellow, blue, orange, and white (clear). They feature various termination options such as solder lug/Faston, 6mm (with 2 x 0.5mm terminals), 8mm, 10mm, 12mm (with 2.8 x 0.8mm terminals), or wires with a standard length of 200mm. The wiring typically uses 24 AWG for 6mm and 8mm LEDs, and 22 AWG for 10mm and 12mm LEDs. Red wire indicates the anode (+), while black wire indicates the cathode (-). Models include bi-color LEDs, suitable up to 28VDC, with daylight-visible high-brightness options, standard and flashing types, all UL recognized for industrial use.
Apem QS81XXHB110 Panel Mount LED Indicator Specifications:
- Available in sizes: 6mm, 8mm, 10mm, 12mm
- Operating Temperature Range: -30 °C to +65 °C
- Max Reverse Voltage: 5 V
- Life Expectancy: 100,000 hours
- Panel Thickness: 0.8 to 1.6 mm
- Material: Moulded polycarbonate
- Standard wire length: 200mm
- Wire Gauge: 24 AWG (6mm & 8mm), 22 AWG (10mm & 12mm)
- LED colors: Red, Green, Yellow, Blue, White, Orange
- Termination options: Solder lug/Faston, wires
- LED types: Standard, High Brightness, Flashing
- Voltage options: 6VDC, 12VDC, 24VDC, 110VAC, 220VAC, up to 28VDC
- Electrical Specs: Forward Voltage 2V-32V depending on color and type, Max current 20mA
- Mounting: Snap-in front panel mounting without hardware

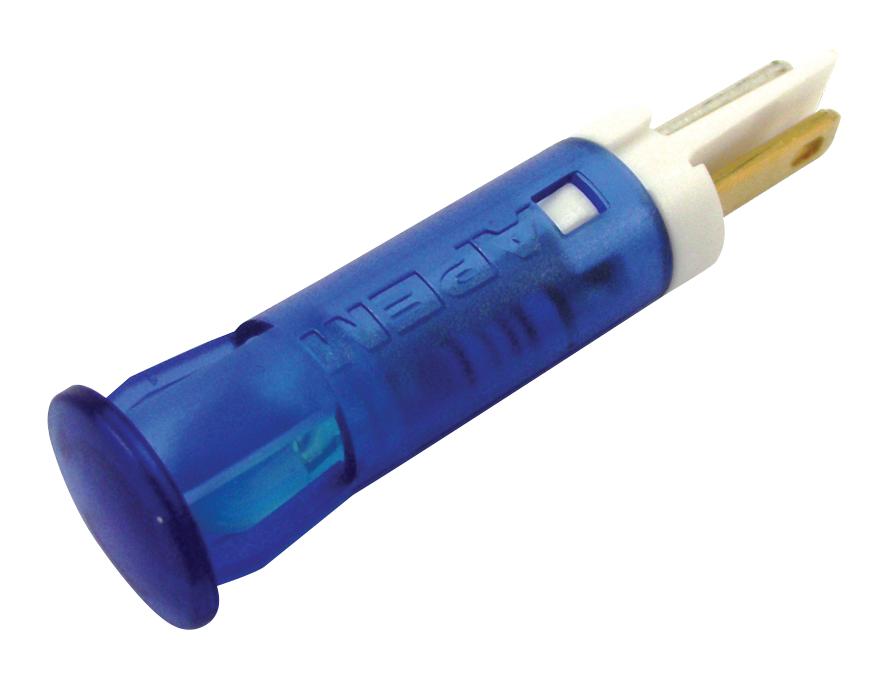

Buy the Buy APEM QS Series LED Indicators Part Number QS81XXHB110 Online
Order the APEM QS series panel mount LED indicator online today for reliable performance and easy installation. These versatile indicators come in multiple sizes and colors, featuring snap-in mounting for hassle-free setup. They offer standard and high-brightness LEDs suitable for daylight viewing, with options for flashing and bi-color functionality up to 28 volts DC. Made from durable polycarbonate, these UL recognized components are ideal for industrial, control, and signaling applications. Get yours now for high-quality, long-lasting visibility in your equipment.
Get APEM QS81XXHB110 today—built for industrial signaling with high brightness and easy snap-in mounting.
Frequently Asked Questions
Where can I buy Apem QS81XXHB110?
You can click on the BUY or RFQ button to purchase QS81XXHB110 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part QS81XXHB110?
You can download the QS81XXHB110 datasheet or visit the Apem website for support.
Who is the manufacturer of QS81XXHB110?
Apem
