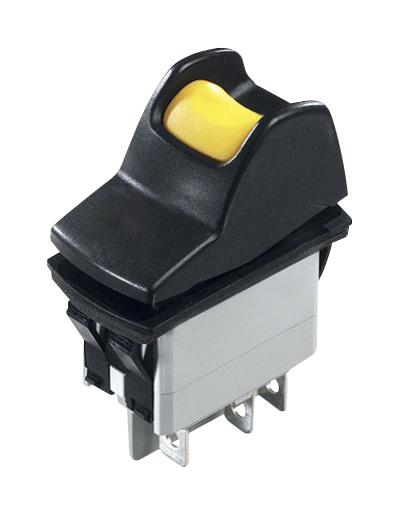

Apem KL462AKXA125 Locking Power Rocker Switch
The KL series locking power rocker switches are designed for industrial control applications, offering protected positions, patented ergonomic design, laser-etched symbols, and optional sealing to IP69K for water and dust resistance. They feature silver or gold-plated contacts with current ratings up to 20 A, 24 VDC, and mechanical life of 150,000 cycles. Suitable for panel thicknesses from 0.8 mm to 4.6 mm, these switches incorporate durable materials like PA 6-6 and ABS. They meet environmental standards including salt spray resistance and operating temperatures from -40°C to +85°C, ensuring reliable performance in demanding environments.
Apem KL462AKXA125 Locking Power Rocker Switch Specifications:
- Current/Voltage Rating: 20 A 12 V DC, 5 A 24 V DC, 10 A 24 V DC, gold plated contacts for high cycle service
- Mechanical Life: 150,000 cycles
- Panel Thickness: 0.8 mm to 4.6 mm, recommended 2 mm to 3.5 mm
- Materials: PA 6-6 case, ABS actuator, brass contacts with silver or gold plating
- Sealing Options: IP68 (front components), IP69K (panel sealing optionally available)
- Environmental Resistance: Salt spray for 96 hours, operating temperature from -40°C to +85°C
- Dimensions: Based on panel cut-out with recommended range of mounting panels
- Electrical Insulation Resistance: ≥1,000 MΩ at 500 VDC
- Dielectric Strength: ≥2,000 Vrms between terminals
- Water and dust resistant: Optional ultrasonic welding for complete sealing
Buy the Apem KL462AKXA125 – Reliable Locking Power Rocker Switch for Industrial Applications
Enhance your control systems with the reliable KL series locking power rocker switch. Featuring IP69K sealing, high current ratings, and durable construction, this switch ensures lasting performance even in harsh environments. Easy to install with flexible mounting options and a mechanical life of 150,000 cycles, it is ideal for industrial control panels requiring water and dust resistance. Available with laser-etched symbols and optional sealed variants, the KL series provides dependable switching solutions for demanding industrial applications. Buy online now for fast delivery and quality assurance.
Order your Apem SeriesKL462AKXA125 locking power rocker switch today and enhance your control panel with durable, water-resistant switching solutions.
Frequently Asked Questions
Where can I buy Apem KL462AKXA125?
You can click on the BUY or RFQ button to purchase KL462AKXA125 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part KL462AKXA125?
You can download the KL462AKXA125 datasheet or visit the Apem website for support.
Who is the manufacturer of KL462AKXA125?
Apem
