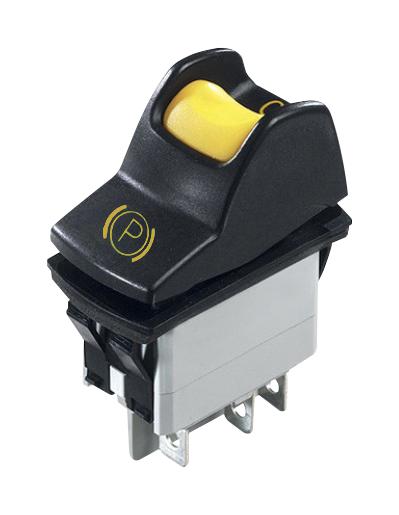

Apem KL462AKXA125N01A65 Locking Power Switch
The locking power rocker switch series offers durable, IEC-rated sealing options including IP68 and IP69K, suitable for harsh environments. Featuring illuminated or non-illuminated models with laser-etched symbols for clarity, these switches are designed with robust materials like PA 6-6 and ABS. They support resistive loads up to 20A at 12V DC, with a mechanical life of 150,000 cycles. The switches are versatile for panel thicknesses from 0.8 mm to 4.6 mm and come with various terminal configurations and optional sealing for water and dust resistance.
Apem KL462AKXA125N01A65 Locking Power Switch Specifications:
- Sealing options: IP68 to front panel, IP69K with optional sealing
- Shell material: PA 6-6 case, ABS actuator, elastomeric membrane unlocking actuator, PA 6-6 bezel
- Electrical ratings: 5A 24VDC, 10A 24VDC, 20A 12VDC (resistive load), gold or silver plated contacts
- Mechanical life: 150,000 cycles minimum
- Operating temperature: -40°C to +85°C
- Panel thickness: 0.8 mm to 4.6 mm, recommended 2-3.5 mm
- Dimensions: Custom cut-outs per model, panel sealing compatible with IEC and DIN standards
- Material: Brass contacts, silver grain or gold plated, brass terminals
- Water and dust resistance: Sealing optional, ultrasonic welding as standard
- Terminal types: Screw, solder lug, quick-connect, with various configurations for modular wiring
- LED illumination: 20mA at nominal voltage, multiple colors available, laser etched symbols resistant to UV, water, petrol, and tear
Buy the Buy APEM Locking Power Rocker Switch Part Number KL462AKXA125N01A65 Online
Order the high-quality locking power switch online today for reliable performance in demanding environments. Designed with IP68/IP69K sealing, it offers excellent dust and water resistance. Suitable for industrial controls, it supports resistive loads up to 20A at 12V DC, with a mechanical lifespan of 150,000 cycles. The switch features laser-etched symbols for visibility, robust materials like PA 6-6 and ABS, and various terminal options like screw, solder lug, and quick-connects. Perfect for panel installation requiring durability, sealing, and electrical reliability.
Get APEM KL462AKXA125N01A65 today—built for precision, water resistance, and long-lasting durability in tough industrial conditions.
Frequently Asked Questions
Where can I buy Apem KL462AKXA125N01A65?
You can click on the BUY or RFQ button to purchase KL462AKXA125N01A65 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part KL462AKXA125N01A65?
You can download the KL462AKXA125N01A65 datasheet or visit the Apem website for support.
Who is the manufacturer of KL462AKXA125N01A65?
Apem
