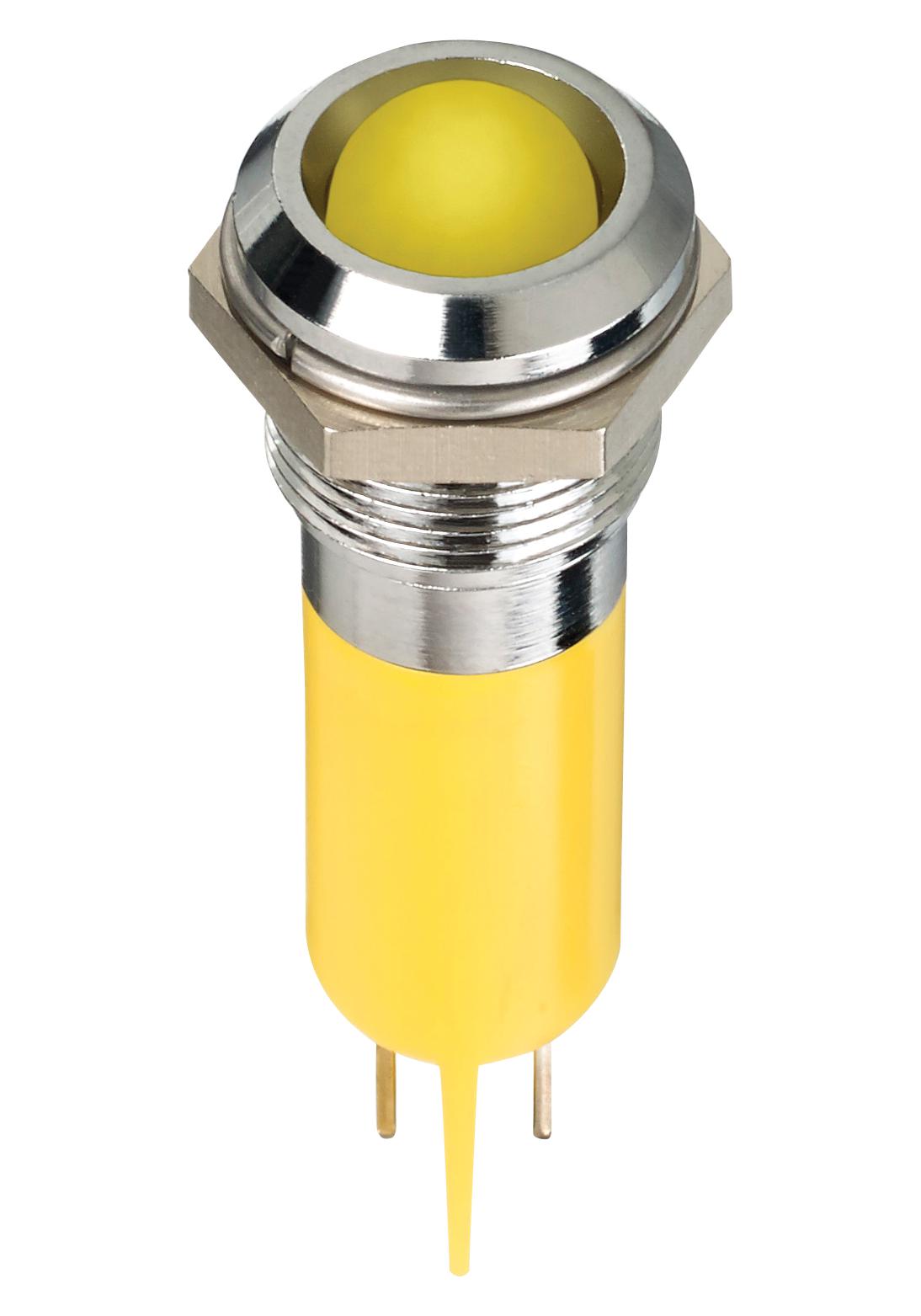

Apem Q12P1CXXHY220E Panel Mount LED Indicator
The Q12 Series 12mm panel mount LED indicators feature a prominent bezel and are available with different LED colors, voltages, and sealing options. They include diffused epoxy lenses or super bright LEDs, with options for water-clear or diffused diffusers. Designed for easy mounting with solder lug, faston terminals, or wires, these indicators operate from 2VDC to 220VAC, with IP67 sealing for protection against dust and water. Ideal for panel status indication, they offer high brightness, long life expectancy of 100,000 hours, and are UL Recognized for reliability.
Apem Q12P1CXXHY220E Panel Mount LED Indicator Specifications:
- Mounting hole: 12mm
- Bezel Type: Prominent
- Finish: Bright Chrome, Satin Grey
- Lens: Diffused epoxy or water-clear super bright LEDs
- Operating Voltage: 2VDC to 220VAC
- Operating Current: 20mA max
- Sealing: IP67 option available
- Lifespan: 100,000 hours
- Temperature Range: -40°C to +85°C
- Viewing Angle: 30-100°
- Max Reverse Voltage: 5V
- Connections: Solder lug, faston terminals, pins, or wires
- Panel Thickness: up to 7mm
- Certifications: UL Recognized
- Operating Voltage Tolerance: ±10%
Buy the Buy APEM LED Indicators Part Number Q12P1CXXHY220E Online
Purchase the APEM Panel Mount LED Indicator Q12P1CXXHY220E online to enhance your panel's visibility and operational reliability. Featuring a prominent bezel and a choice of diffused epoxy lenses or super bright LEDs, these indicators are suitable for a wide range of voltages from 2VDC to 220VAC. They are IP67 sealed for dust and water resistance, ensuring durability in harsh environments. Easy to install with solder lug, faston terminals, or wires, they provide long life expectancy of 100,000 hours, making them a dependable choice for industrial and automation applications.
Get APEM LED indicators Q12P1CXXHY220E today—designed for high brightness, IP67 sealing, and long-lasting durability in industrial panels.
Frequently Asked Questions
Where can I buy Apem Q12P1CXXHY220E?
You can click on the BUY or RFQ button to purchase Q12P1CXXHY220E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q12P1CXXHY220E?
You can download the Q12P1CXXHY220E datasheet or visit the Apem website for support.
Who is the manufacturer of Q12P1CXXHY220E?
Apem
