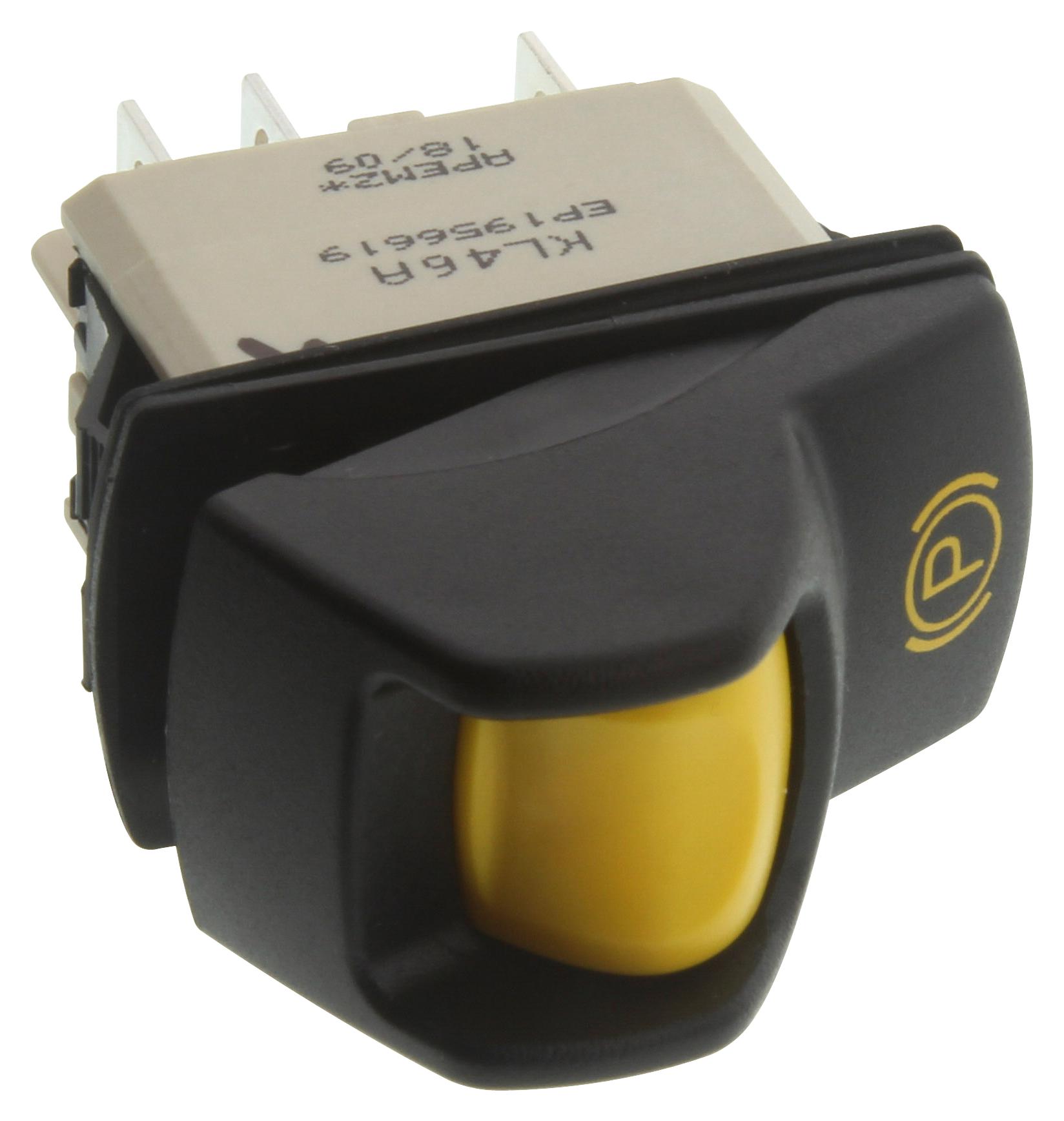

Apem KL462AKXA125NXXA65 Locking Power Switch
The KL series locking power rocker switches offer reliable operation with protected positions, patented ergonomic design, and laser-etched symbols. They feature illuminated or non-illuminated options and are optionally sealed to IP68 or IP69K for enhanced water and dust resistance, suitable for industrial environments. With resistive load current ratings up to 20 A and 12 VDC, they support extensive electrical functions including ON, OFF, MOM, and multi-position configurations. Constructed from durable materials like PA 6-6 and ABS, these switches are DIN-rail compatible, with easy panel mounting and multiple terminal options for versatile connectivity, ensuring robust performance in demanding applications.
Apem KL462AKXA125NXXA65 Locking Power Switch Specifications:
- Sealings: IP68 front panel components, optional IP69K
- Operating temperature: -40°C to +85°C
- Mechanical life: 150,000 cycles minimum
- Panel thickness: 0.8 mm to 4.6 mm (recommended 2 mm to 3.5 mm)
- Material: PA 6-6 case, ABS actuator, brass contacts
- Contact ratings: 5 A 24 VDC, 10 A 24 VDC, 20 A 12 VDC, gold plated contacts for D version with 20 mA 12 V
- Electrical resistance: initial contact resistance max. 10 mΩ, insulation resistance min. 1,000 MΩ at 500 VDC, dielectric strength: 2,000 Vrms
- Termination: screw, solder lug, quick-connect, or normalized quick-connect options
- Environmental: salt spray resistance up to 96 hours
- Water and dust resistance: optional sealing with ultrasonic welding, IP68/IP69K certified
- Dimensions: panel cut-out varies by model, mounting panel recommended thickness 1.10 to 6 mm
- Symbols: laser-etched, water, petrol resistant, UV resistant according to EN61058-1 and ISO standards
- Colors: multiple LED illumination options including white, red, green, yellow, blue, and amber
Buy the ApeM KL462AKXA125NXXA65 – Reliable Locking Power Rocker Switch for Industrial Applications
Order the ApeM locking power rocker switch KL462AKXA125NXXA65 online today to benefit from its rugged design, versatile sealing options, high electrical ratings, and multiple mounting and terminal configurations. Ideal for industrial automation, machinery, and control panels, this switch guarantees reliable operation even in harsh conditions. Enjoy quick and secure online purchasing with fast delivery, ensuring your projects stay on schedule while enhancing safety and operational efficiency with this durable, sealed switch—perfect for demanding industrial applications.
Buy ApeM KL462AKXA125NXXA65 now and experience unmatched reliability, sealed water/dust resistance, and durable performance for demanding industrial environments.
Frequently Asked Questions
Where can I buy Apem KL462AKXA125NXXA65?
You can click on the BUY or RFQ button to purchase KL462AKXA125NXXA65 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part KL462AKXA125NXXA65?
You can download the KL462AKXA125NXXA65 datasheet or visit the Apem website for support.
Who is the manufacturer of KL462AKXA125NXXA65?
Apem
