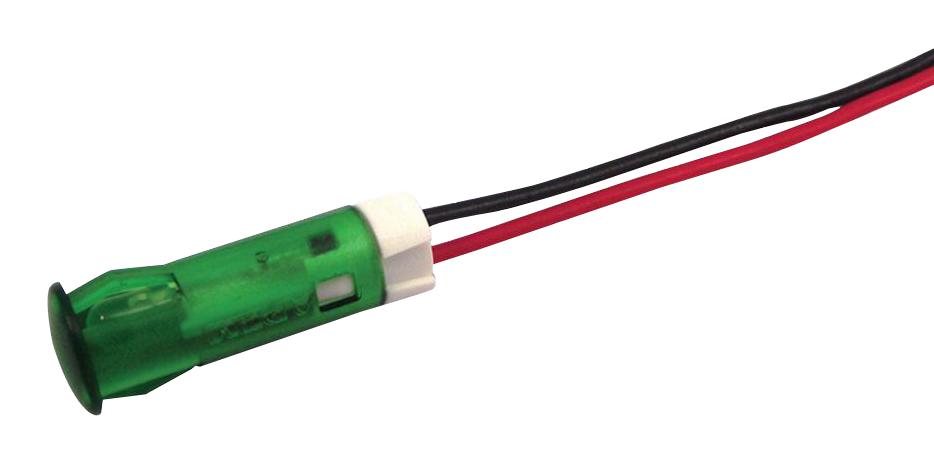

Apem QS63XXG24 LED Indicator
The QS63XXG24 from APEM is a green LED indicator within the QS series, designed for panel mounting with a snap-in installation. It features a polycarbonate (UL94V-0) lens and body, with a diffused flat lens for clear visibility. The indicator is suitable as a replacement for traditional filament and neon indicators in various applications such as catering equipment, fire alarm panels, power distribution panels, battery chargers, power supplies, and household or commercial appliances. It operates within a voltage range of 21.6 to 26.4 VDC at 20 mA, with a viewing angle of 30 degrees and a life expectancy of 100,000 hours. The LED has a standard brightness of 20 mcd, with a maximum reverse voltage of 5 V, and forward voltage of 2.2 V. It includes a 200 mm long PVC connecting wire and is rated for operation between -30°C and +85°C. The mounting requires a 6 mm front panel cut-out, with no additional hardware necessary for snap-in installation.
Apem QS63XXG24 LED Indicator Specifications:
- Operating Voltage Range: 21.6 to 26.4 VDC
- Forward Voltage: 2.2 V
- Reverse Voltage: 5 V max
- Luminous Intensity: 20 mcd
- Viewing Angle: 30 degrees
- Lifespan: 100,000 hours
- Operating Temperature Range: -30°C to +85°C
- Material: Polycarbonate UL94V-0
- Mounting Hole Size: 6 mm
- Connection: 200 mm PVC wire
- Diffused flat lens design
- Snap-in panel mounting, no additional hardware required
Buy the Buy APEM Green LED Indicator Part Number QS63XXG24 Online
Purchase the APEM QS63XXG24 green LED indicator online and enjoy quick, hassle-free delivery. With its durable polycarbonate construction, diffused lens, and simple snap-in mounting, it’s perfect for industrial, household, and commercial applications. Operating efficiently at 21.6 to 26.4 VDC and boasting a lifespan of 100,000 hours, this indicator ensures dependable illumination. Its easy wiring and compact size make installation seamless, providing a reliable solution for equipment status indication and control panels. Order now for fast, secure online shopping experience.
Buy APEM QS63XXG24 now and experience reliable, long-lasting LED indicator performance with effortless snap-in mounting.
Frequently Asked Questions
Where can I buy Apem QS63XXG24?
You can click on the BUY or RFQ button to purchase QS63XXG24 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part QS63XXG24?
You can download the QS63XXG24 datasheet or visit the Apem website for support.
Who is the manufacturer of QS63XXG24?
Apem
