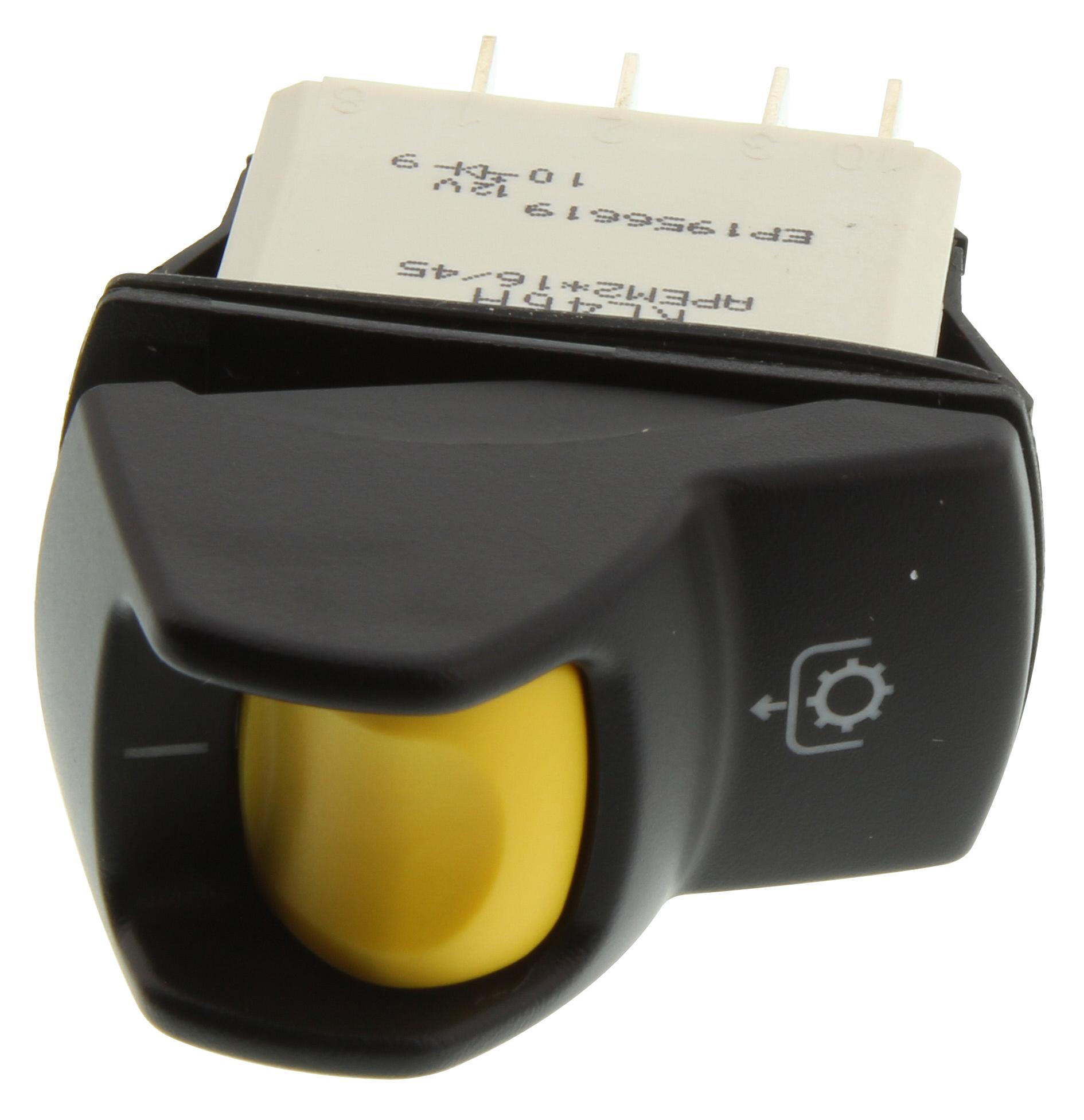

Apem KL46FAKFG225N0461 Power switch
The KL series locking power rocker switches are designed for industrial applications, featuring protected positions, patented ergonomic design, laser-etched symbols, illumination options, and optional sealing up to IP69K. They are ideal for harsh environments with resistance to salt spray, operating temperatures from -40°C to +85°C, and various sealing options. These switches have a current rating up to 20A at 12 VDC, durable mechanical life of 150,000 cycles, and a panel thickness compatible from 0.8 mm to 4.6 mm. Made of robust materials with brass contacts, they ensure reliable electrical performance and environmental resistance.
Apem KL46FAKFG225N0461 Power switch Specifications:
- Current/Voltage Rating: 20A 12 VDC, 10A 24 VDC, 20A 12 V (silver contacts); 20mA 12 V (gold contacts)
- Mechanical Life: 150,000 cycles minimum
- Operating Temperature: -40°C to +85°C
- Panel Thickness: 0.8 mm to 4.6 mm (recommended 2–3.5 mm)
- Sealing Options: IP68 (front components), IP69K (panel sealing)
- Materials: Case PA 6-6, Actuator ABS, Bezel PA 6-6, Contacts Brass, Silver or Gold plated
- Dimensions: Panel cut-out approximately 25 mm x 40 mm
- Electrical Certifications: Resistant to salt spray (96 hours IEC 512-6 test), dielectric strength 2000 Vrms
- Environmental Resistance: Sealed against water, dust, UV, and petrol (EN 61058-1)
- Construction: Ultrasonically welded frame, optional sealing to prevent water ingress
- Markings: Laser-etched symbols, illuminated or non-illuminated options, various LED color options
Buy the APEM KL46FAKFG225N0461 – Reliable Industrial Power Switch for Harsh Environments
Order the APEM power switch KL46FAKFG225N0461 online today to enjoy quick delivery and trusted quality. This rugged industrial switch features protected positions, durable materials, and sealing options up to IP69K, making it ideal for harsh environments. Whether you need illumination, high current capacity, or environmental resistance, this switch delivers reliable operation with a mechanical life of 150,000 cycles. Perfect for machinery, control panels, and automation. Secure your equipment today by purchasing this high-performance power rocker switch online for seamless installation and long-lasting performance.
Buy APEM KL46FAKFG225N0461 now and experience unmatched reliability and performance in demanding industrial settings.
Frequently Asked Questions
Where can I buy Apem KL46FAKFG225N0461?
You can click on the BUY or RFQ button to purchase KL46FAKFG225N0461 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part KL46FAKFG225N0461?
You can download the KL46FAKFG225N0461 datasheet or visit the Apem website for support.
Who is the manufacturer of KL46FAKFG225N0461?
Apem
