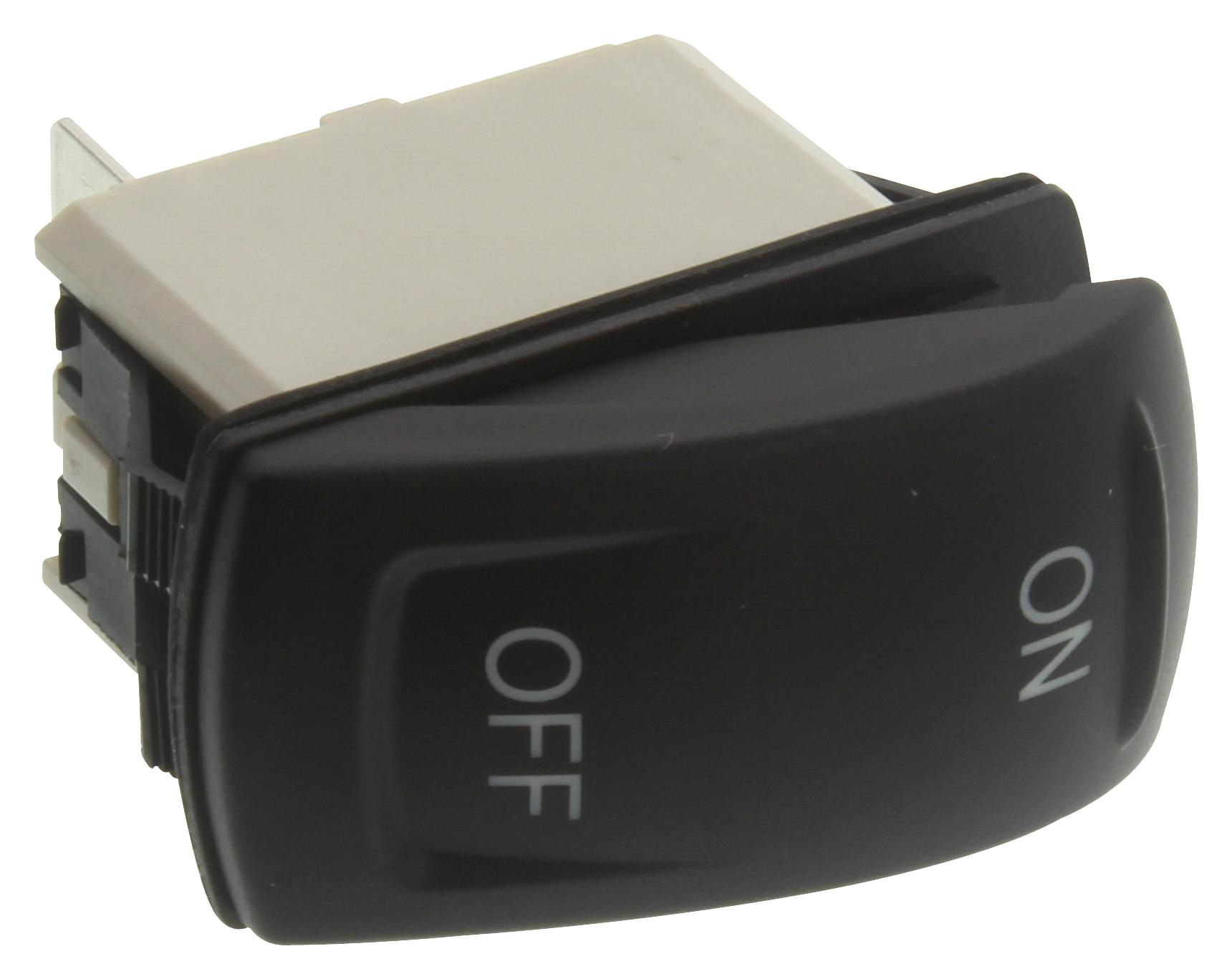

Apem KR315AKPXD22N01XX02 Power Rocker Switch
The Power rocker switches in the KR series feature a distinctive rocker design with a wide selection of colors and laser-etched symbols. These switches optionally seal to IP68 or IP69K, making them highly resistant to environmental factors such as water, dust, salt spray, vibrations, and temperature fluctuations from -40°C to +85°C. They support resistive loads up to 20A and 24VDC with a mechanical life of 150,000 cycles. Crafted from durable materials like PA 6-6 and ABS, they are suitable for demanding industrial and automotive applications, offering reliable switching performance.
Apem KR315AKPXD22N01XX02 Power Rocker Switch Specifications:
- Sealing options: IP68 to front panel components, IP69K panel sealing available
- Salt spray resistance: 96 hours according to IEC 512-6, test 11f
- Vibration resistance: 10-500 Hz / 10 g per IEC 60068-2-6
- Operating temperature: -40°C to +85°C
- Current/voltage rating: 5 A 24 VDC (silver contacts, resistive load), 20 A 12 VDC, 20 mA@12 V (gold contacts)
- Mechanical life: 150,000 cycles minimum
- Panel thickness: 0.8 mm to 4.6 mm, recommended 2-3.5 mm
- Materials: Case - PA 6-6, Actuator - ABS, Bezel - PA6-6
- Contact materials: Brass, silver plated (A, S) or gold plated (D)
- Sealed by ultrasonic welding, optional panel sealing available
- Physical dimensions vary, with mounting options for various panel thicknesses
- Suitable for industrial, automotive, and control panel applications
Buy the Buy KR Series Power Rocker Switch Part Number KR315AKPXD22N01XX02 Online
Purchase the high-quality KR Series power rocker switch KR315AKPXD22N01XX02 online today. With IP68/IP69K sealing options, wide color choices, laser-etched symbols, and ratings up to 20A at 24VDC, this switch is perfect for demanding industrial and automotive uses. Its robust construction from durable materials and long mechanical lifespan ensure high performance and reliability. Whether for control panels or equipment, buy online to take advantage of fast delivery, competitive pricing, and trusted quality, making your project safer and more efficient.
Order your KR Series power rocker switch KR315AKPXD22N01XX02 today and ensure reliable operation with environmentally sealed durability.
Frequently Asked Questions
Where can I buy Apem KR315AKPXD22N01XX02?
You can click on the BUY or RFQ button to purchase KR315AKPXD22N01XX02 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part KR315AKPXD22N01XX02?
You can download the KR315AKPXD22N01XX02 datasheet or visit the Apem website for support.
Who is the manufacturer of KR315AKPXD22N01XX02?
Apem
