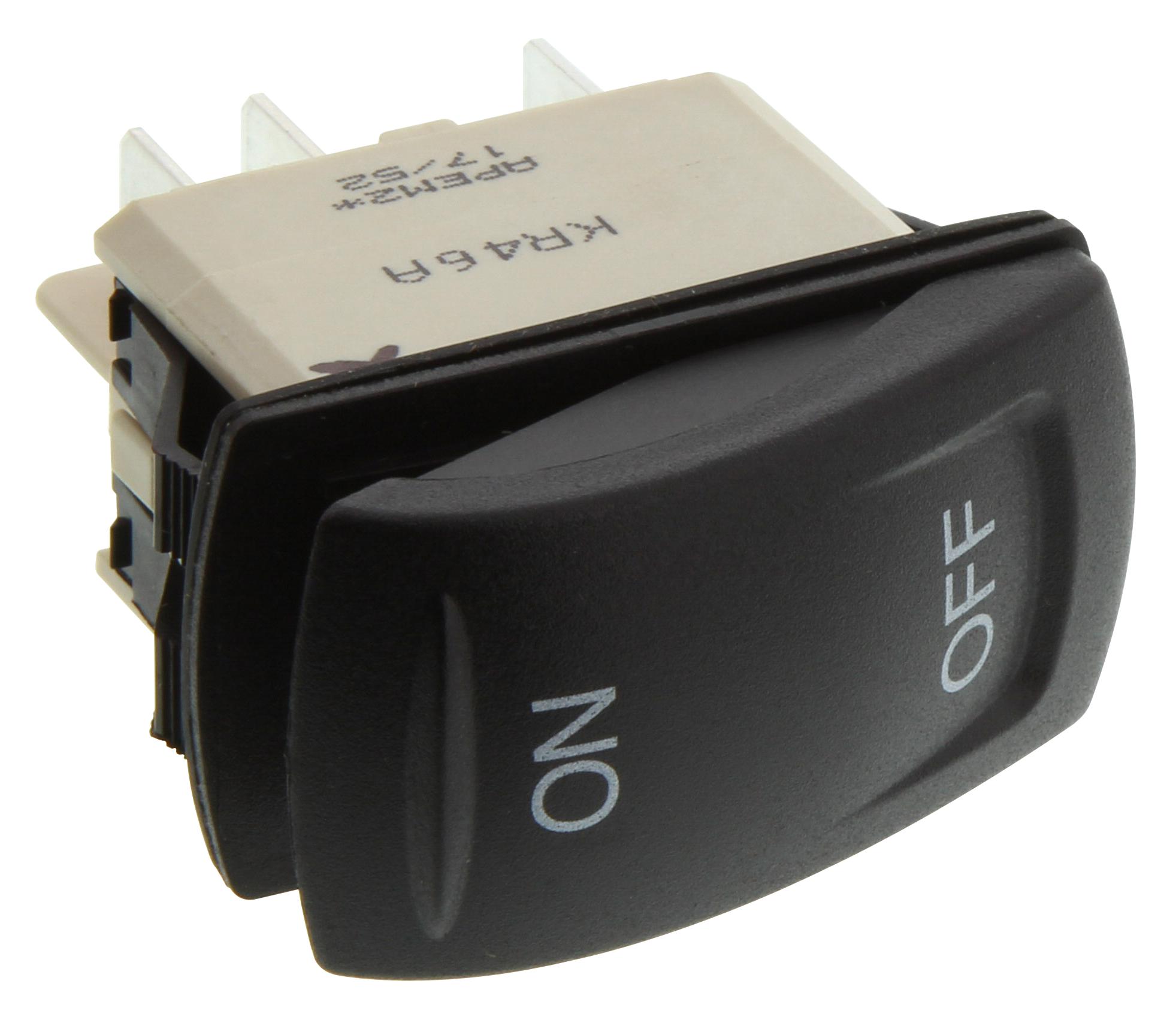

Apem KR463AKXXA12N01XX02 Power Rocker Switch
The Power rocker switch series features distinctive rocker design with wide color choices and laser-etched symbols. Available in illuminated or non-illuminated options, some with IP68 or IP69K sealing for water and dust resistance. Suitable for panel mounting with a thickness of 0.8 mm to 4.6 mm, these switches support resistive loads up to 20 A at 12 VDC or 24 VDC, with a mechanical life of 150,000 cycles. Made from durable materials like PA 6-6 and ABS, they are ideal for demanding industrial applications and environmental resistance.
Apem KR463AKXXA12N01XX02 Power Rocker Switch Specifications:
- Sealing options: IP68 (front components only), IP69K sealing available
- Operating temperature range: -40°C to +85°C
- Mechanical life: 150,000 cycles
- Current / Voltage rating with resistive load: 5 A 24 VDC, 10 A 24 VDC, 20 A 12 VDC
- Material: PA 6-6 case, ABS actuator, brass contacts silver or gold plated
- Dimensions: Panel cut-out variances include 25 mm to 51 mm, panel thickness from 0.8 mm to 5 mm
- Electrical resistance: Initial contact resistance maximum 10 mΩ
- Insulation resistance: Minimum 1,000 MΩ at 500 VDC
- Dielectric strength: 2,000 Vrms between terminals
- Vibration resistance: 10-500 Hz / 10 g
Buy the APEM Series KR Power Rocker Switch: KR463AKXXA12N01XX02
Experience the reliability and environmental resistance of our Power Rocker Switch series. Designed for demanding industrial applications, these switches feature IP68/IP69K sealing, laser-etched symbols, and a choice of illuminated or non-illuminated options in multiple colors. Constructed with durable materials like PA 6-6 and brass contacts, they support resistive loads up to 20 A and have a life cycle of 150,000 cycles. Easy to install with panel thickness compatibility and suitable for environments with dust, water, or vibration exposure. Buy online now for high-quality, industrial-grade switching solutions.
Order your APEM Series KR power rocker switch today and enhance your industrial control panels with reliable water-resistant functionality and durable construction.
Frequently Asked Questions
Where can I buy Apem KR463AKXXA12N01XX02?
You can click on the BUY or RFQ button to purchase KR463AKXXA12N01XX02 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part KR463AKXXA12N01XX02?
You can download the KR463AKXXA12N01XX02 datasheet or visit the Apem website for support.
Who is the manufacturer of KR463AKXXA12N01XX02?
Apem
