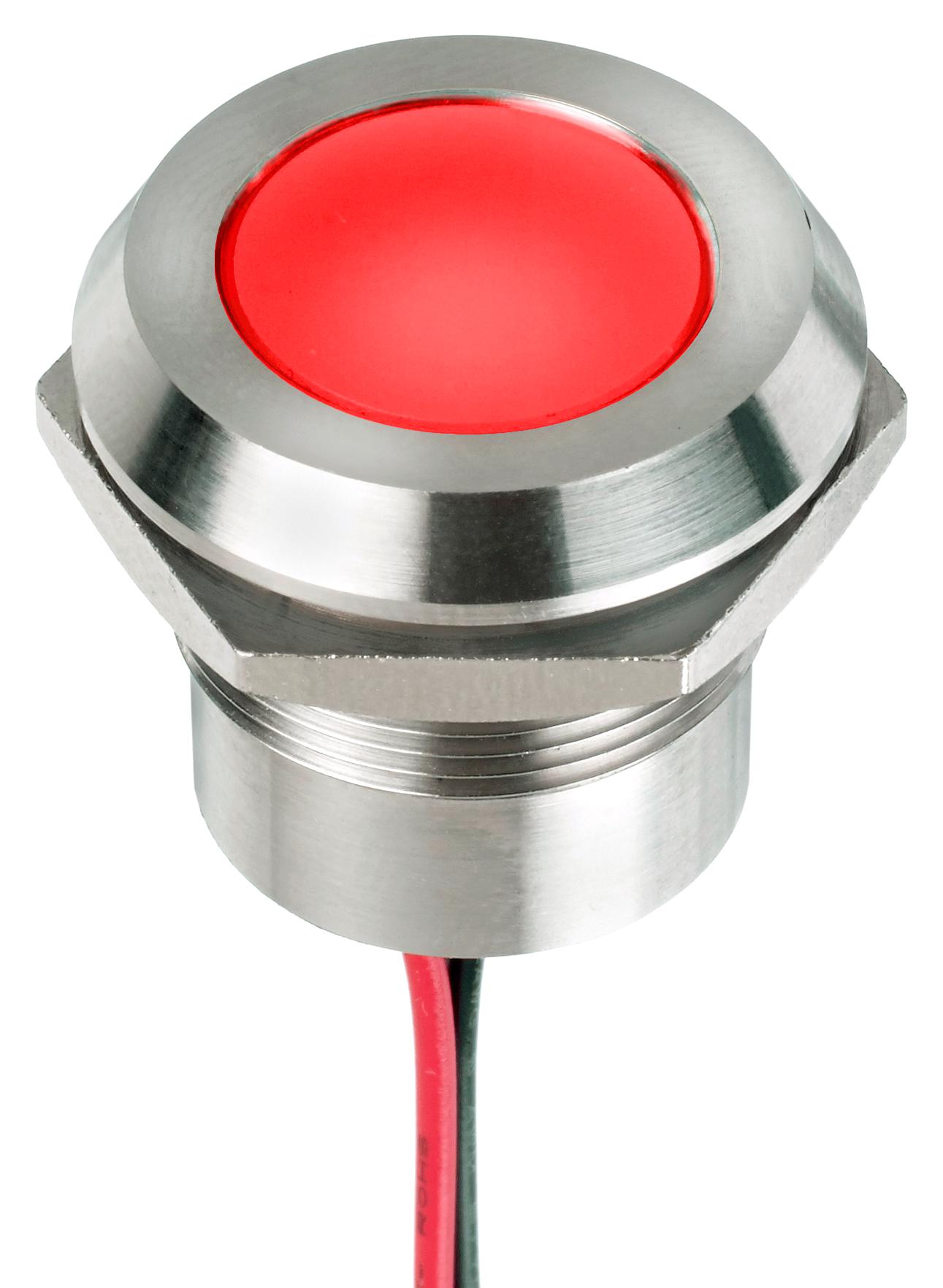

Apem Q22Y5SZZRGB12ECA Panel Mount LED Indicator
The Q22 series panel mount LED indicators are designed for industrial signaling and status indication with 22 mm diameter. They feature a diffused epoxy lens, compatibility with RGB color options, and various termination types including solder lug, faston, pins, or wires. With IP67 sealing available, these indicators endure harsh environments. They operate at different voltages from 3.3 VDC to 235 VAC, with a life expectancy of 100,000 hours. The construction includes a plated brass bezel, molded polycarbonate rear body, and sealed connections suitable for panel installation up to 12 mm thick. Suitable for automation, control panels, and machinery alert systems.
Apem Q22Y5SZZRGB12ECA Panel Mount LED Indicator Specifications:
- Diameter: 22 mm
- Lens Type: Diffused epoxy
- Color Options: Red, Green, Yellow, Blue, White, RGB
- Voltage Range: 3.3 VDC to 235 VAC
- Current: Max 40 mA (typical 20 mA for LED)
- Life Expectancy: 100,000 hours
- Sealing: IP67 (optional)
- Operating Temperature: -30°C to +85°C depending on body
- Material: Plated brass bezel, polycarbonate rear body, ABS bezel
- Mounting Panel Thickness: Up to 12 mm
- Viewing Angle: 30° to 100°
- Terminations: Solder lug, faston, pins, or wires (200 mm length)
- Bezel Finish: Bright chrome, black, satin grey, anodized
- LED Intensity: Standard and super bright options available
- Polarity: Reversible for bi-color, red/green/Yellow
- Certifications: Not specified
Buy the APEM Q22Y5SZZRGB12ECA – Reliable RGB Panel Mount LED Indicators for Industrial Applications
Order the APEM Q22Y5SZZRGB12ECA panel mount LED indicator today for dependable illumination in industrial control systems. These indicators feature RGB color capability, IP67 sealing for harsh environments, and wide voltage compatibility. They are designed for quick installation with various termination options, including solder lug, faston, pins, or wires, making them ideal for automation, machinery, and panel signaling. Built for long-lasting service with a 100,000-hour life expectancy, ensure your control panels are always visible and reliable by purchasing online now.
Get APEM Q22Y5SZZRGB12ECA today—built for precision, durability, and versatile signaling in control panels and industrial environments.
Frequently Asked Questions
Where can I buy Apem Q22Y5SZZRGB12ECA?
You can click on the BUY or RFQ button to purchase Q22Y5SZZRGB12ECA from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q22Y5SZZRGB12ECA?
You can download the Q22Y5SZZRGB12ECA datasheet or visit the Apem website for support.
Who is the manufacturer of Q22Y5SZZRGB12ECA?
Apem
