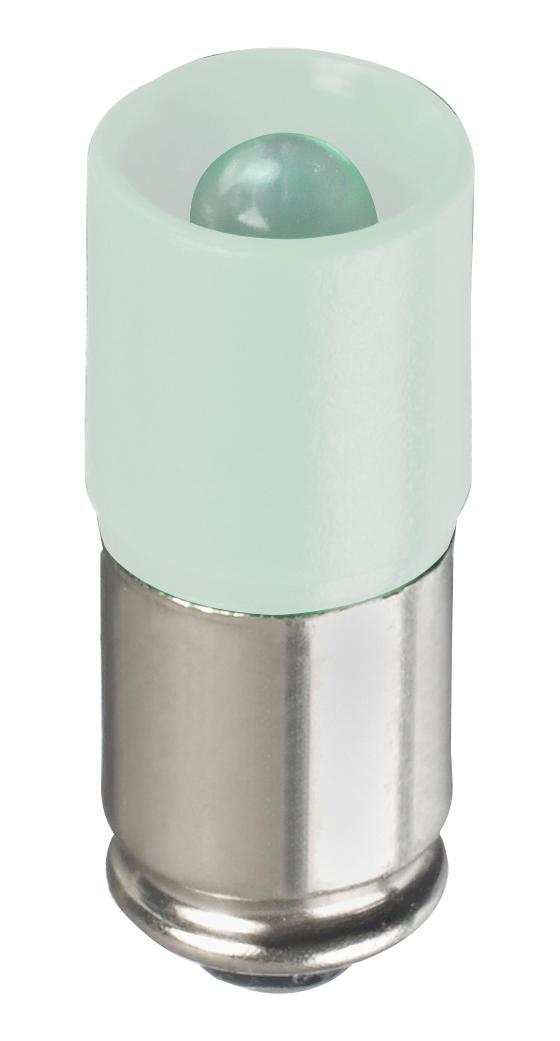

Apem MGSW12 Industrial groove-based LED
The MG series T1 3/4 Midget groove-based LEDs are versatile lighting components suitable for bulb replacement and indicator applications. These LEDs feature single or multichip illumination options, with colors including Red, Green, Yellow, Blue, and White. They operate within -20°C to +70°C temperatures, and accept voltages from 12V to 28V DC or AC with current ratings from 14mA to 30mA depending on configuration. Constructed with a polycarbonate body and nickel-plated brass base, they offer reliable, durable performance for industrial and electronic device illumination.
Apem MGSW12 Industrial groove-based LED Specifications:
- Series: MG
- Type: Single Chip or Multi Chip
- Colors: Red, Green, Yellow, Blue, White
- Voltage: 12V, 24V, 28V AC/DC
- Current: 14mA (single chip), 30mA (multi chip)
- Luminous Intensity: 1,750 med (Red), 1,610 med (Green), 630 med (Yellow), 490 med (White), 2,070 med (Blue), 40 med (Red multi-chip), 35 med (Green multi-chip), 45 med (Yellow multi-chip)
- Operating Temperature Range: -20°C to +70°C
- Materials: Polycarbonate body, Nickel-plated brass base
- Build: Groove-based LED for bulb replacement, suitable for industrial indicator applications
Buy the MG Series 12V-28V LED – Reliable Groove-Based LEDs for Industrial Applications
Enhance your electronic or industrial indicator systems with MG series groove-based LEDs. These reliable lights offer multiple color and chip configurations, operate effectively within -20°C to +70°C, and are constructed with durable polycarbonate and nickel-plated brass. Suitable for bulb replacements, they are ideal for industrial machinery, control panels, and electronic devices. Available in 12V, 24V, and 28V options with varying current ratings, these LEDs deliver dependable illumination and long-lasting performance for diverse applications.
Buy MG series groove-based LEDs now and experience high brightness, durability, and versatile color options for your industrial lighting needs.
Frequently Asked Questions
Where can I buy Apem MGSW12?
You can click on the BUY or RFQ button to purchase MGSW12 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part MGSW12?
You can download the MGSW12 datasheet or visit the Apem website for support.
Who is the manufacturer of MGSW12?
Apem
