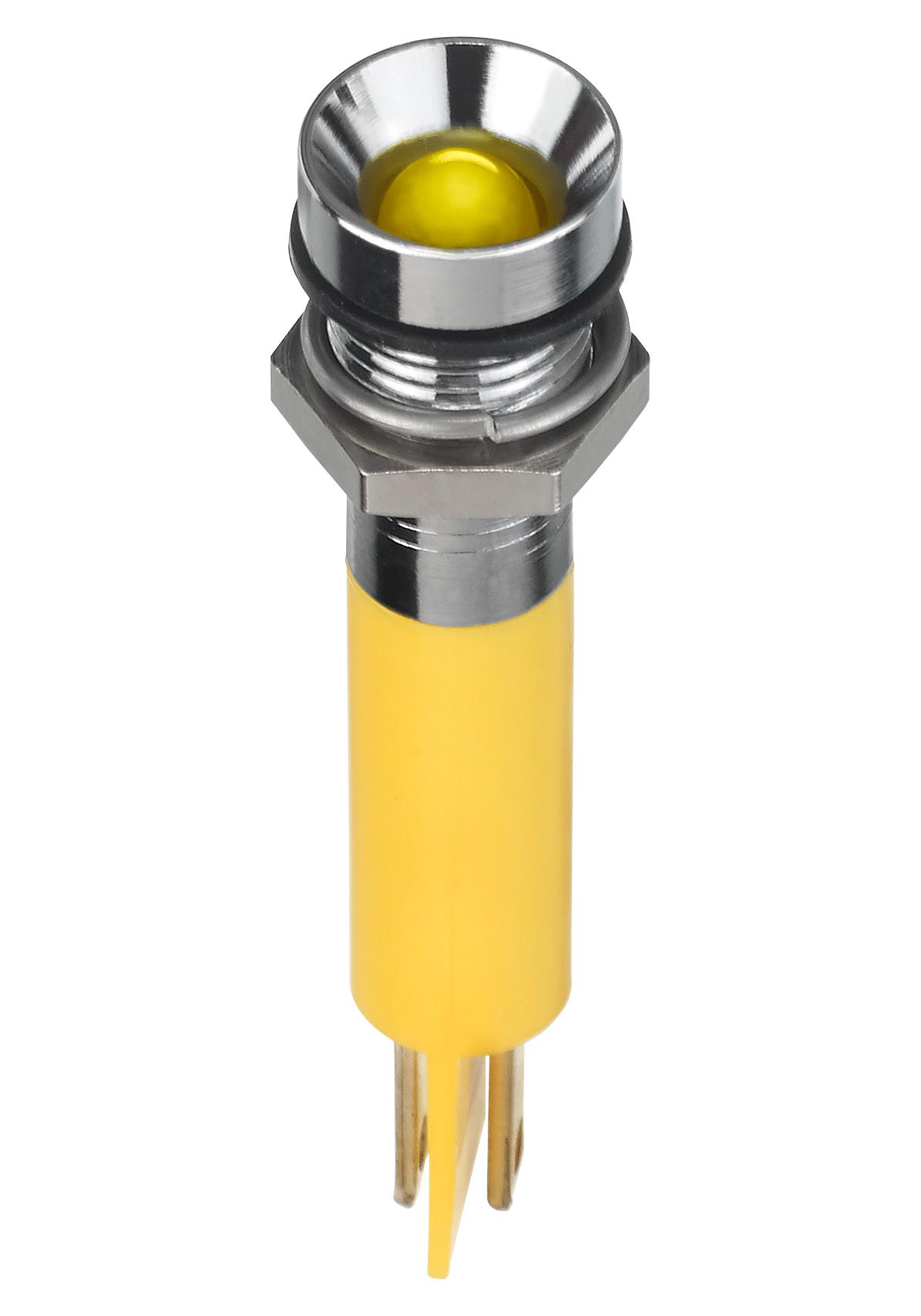

Apem Q8R1CXXY24E LED Indicator
The 8mm recessed LED indicator features a bright chrome bezel and IP67 sealing for waterproof and dustproof protection. Designed for panel mounting, it operates at 24VDC or 24VAC/DC with a yellow LED for high visibility. The indicator includes a fixed bright light with a viewing angle of 30-100°, max reverse voltage of 5V, and an average lifespan of 100,000 hours. Suitable for industrial, automation, or control panel applications, it offers reliable illumination with multiple terminal options like solder lug, fastons, or wires, ensuring versatile, durable performance in demanding environments.
Apem Q8R1CXXY24E LED Indicator Specifications:
- Flammability: UL 94V-0
- Material: Brass bezel with bright chrome finish
- Sealing: IP67 (waterproof and dustproof)
- Operating Voltage: 24VDC / 24VAC/DC
- Reverse Voltage Max: 5V
- Luminous Intensity: 3,300 med (yellow), 350 mcd (yellow super/ hyper bright)
- Forward Voltage: 2.0V (yellow LED)
- Viewing Angle: 30-100°
- Operating Temperature Range: -40 to +85°C
- Life Expectancy: 100,000 hours
- Terminals: Solder lug, fastons, wires, or rear epoxy pins
- Max Panel Thickness: 7mm
- Fixing Nut & Spring Washer included
- Panel Cutout: Max 0.75" (19mm)
Buy the APEM Series Q8 LED: 8mm Panel Mount Indicator - Q8R1CXXY24E
Order the APEM LED Indicator with 8mm recessed bezel, IP67 sealing, and bright yellow illumination online today. Designed for high durability and clear visibility in harsh environments, this indicator offers flexible terminal options including solder lug, fastons, or wire connections. Operating at 24V, it ensures reliable performance with a lifespan of 100,000 hours. Perfect for industrial, automation, or control applications, it combines waterproof sealing, robust materials, and a stylish chrome finish to enhance your equipment’s functionality and appearance.
Buy APEM Q8R1CXXY24E now and experience unmatched durability, waterproof sealing, and excellent visibility for industrial control panels.
Frequently Asked Questions
Where can I buy Apem Q8R1CXXY24E?
You can click on the BUY or RFQ button to purchase Q8R1CXXY24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q8R1CXXY24E?
You can download the Q8R1CXXY24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q8R1CXXY24E?
Apem
