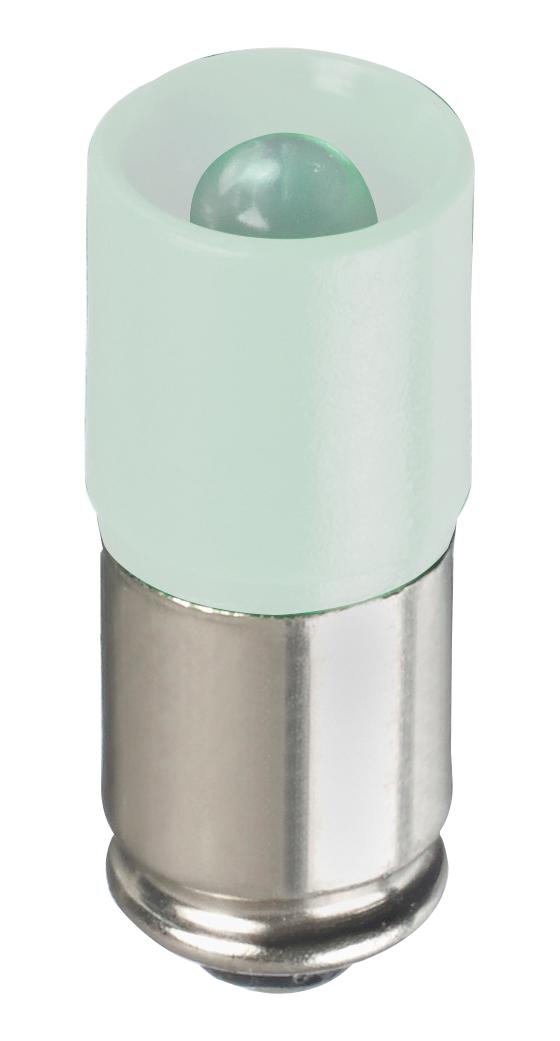

Apem MGSW24 LED Indicator Module
The MG series features T1 3/4 midget groove-based LED modules designed for bulb replacement in various applications. Available in single and multi-chip configurations, these LEDs provide bright illumination with luminous intensities ranging from 490 to 2,070 mcd depending on version and color. Constructed with durable polycarbonate bodies and nickel-plated brass bases, they operate reliably within -20°C to +70°C temperatures. Suitable for 12 VDC to 28 VAC/DC power supplies, they are ideal for indicator lights, signaling, and decorative lighting, offering versatile voltage options and vibrant color choices for numerous industrial and commercial uses.
Apem MGSW24 LED Indicator Module Specifications:
- Series: MG
- Type: Single Chip or Multi Chip
- Color: Red, Green, Yellow, Blue, White
- Voltage: 12V, 24V, 28V DC/AC
- Current: 14mA for single chip, 30mA for multi-chip (12V)
- Luminous Intensity: R-Red 1750 med, G-Green 1610 med, Y-Yellow 630 med, B-Blue 490 med, W-White 2070 med, Y-Yellow 45 med, G-Green 35 med, R-Red 40 med
- Materials: Body - Polycarbonate, Base - Nickel plated brass
- Operating & Storage Temperature: -20°C to +70°C (-4°F to +158°F)
Buy the Buy APEM MG Series Part Number MGSW24 Online
Discover the MG series LED indicator modules, designed with durable polycarbonate bodies and nickel-plated brass bases. These versatile LEDs offer bright illumination from 490 to 2,070 mcd, suitable for indoor and outdoor applications. They support 12V, 24V, and 28V power supplies, making them ideal for signaling, indicators, and decorative lighting in industrial settings. Easy to install, these modules provide high-quality performance, ensuring long-lasting operation in a wide temperature range, delivering reliable illumination for various electronic and automation projects.
Buy APEM MG series MGSW24 now and experience reliable, bright LED illumination perfect for signaling and indicator applications.
Frequently Asked Questions
Where can I buy Apem MGSW24?
You can click on the BUY or RFQ button to purchase MGSW24 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part MGSW24?
You can download the MGSW24 datasheet or visit the Apem website for support.
Who is the manufacturer of MGSW24?
Apem
