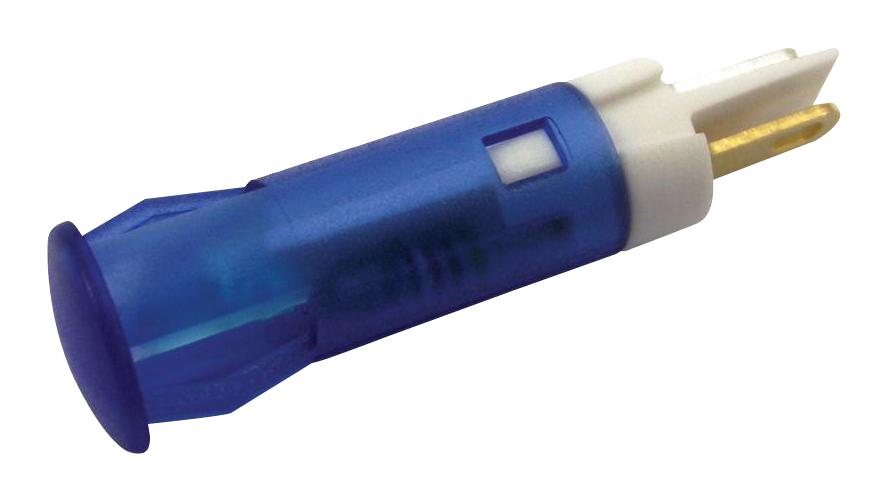

Apem QS61XXB12 Blue LED Indicator
The QS61XXB12 from APEM is a blue LED indicator in the QS series, designed for panel mounting via a snap-in mechanism. It features a polycarbonate lens and body, with a diffused flat lens suitable for replacing filament and neon indicators. This LED operates within a voltage range of 10.8 to 13.2VDC at 20mA and has a viewing angle of 30 degrees. Recognized according to UL496 standards, it has an expected lifespan of 100,000 hours. The device supports applications such as signalling in electronic equipment, fire alarm panels, power supplies, and household appliances, with operating temperatures from -30°C to +85°C.
Apem QS61XXB12 Blue LED Indicator Specifications:
- Operating Temperature Range: -30°C to +85°C
- Reverse Voltage: 5V
- Forward Voltage: 3.3V
- Voltage Range: 10.8 to 13.2VDC
- Operating Current: 20mA
- View Angle: 30 degrees
- Lifespan: 100,000 hours
- Lens Material: Polycarbonate
- Body Material: Polycarbonate
- Mounting: Snap-in panel mount, suitable for panel thickness 0.8 to 1.6 mm
- Standards: UL496 compliant
- Terminals: Solder lug/faston terminals (2 x 0.5mm)
Buy the APEM QS61XXB12 – Reliable Blue LED Indicator for Industrial Applications
Purchase the APEM QS61XXB12 blue LED indicator online today and enhance your electronic signalling systems. Featuring a durable polycarbonate body, this snap-in mount LED offers reliable performance with a lifespan of 100,000 hours. Operating within 10.8 to 13.2VDC at 20mA, it provides clear daylight viewing with a 30-degree angle, making it suitable for fire alarm panels, power supplies, and household appliances. Easy to install, compliant with UL496 standards, and built for longevity, order now for efficient and durable signalling solutions.
Get APEM QS61XXB12 today—built for precision and long-lasting durability, ideal for signalling in a variety of electronic and industrial systems.
