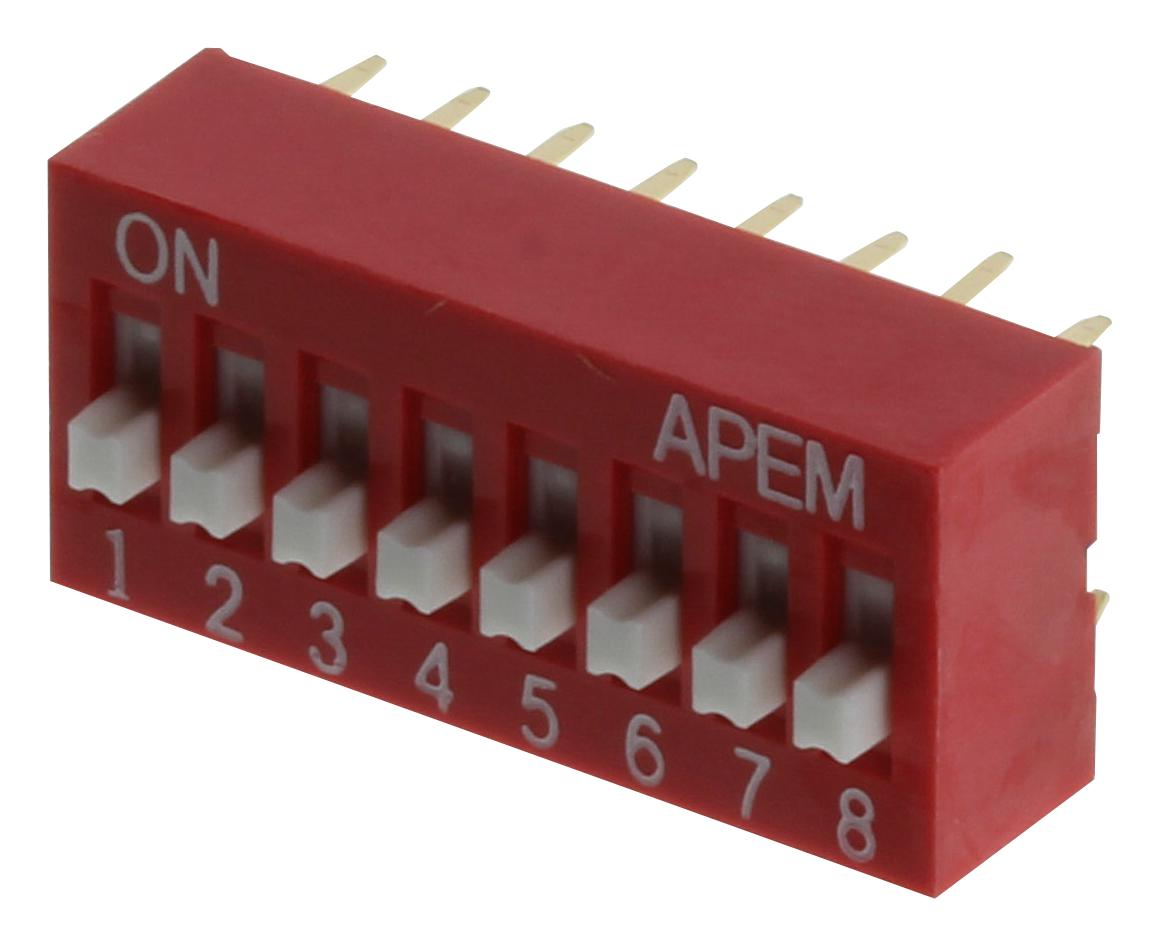

Apem NDS08V Dual In Line Switch
The NDS series dual in line switches feature self-cleaning wiping contacts and gold-plated terminals, ensuring reliable electrical connectivity. These washable switches operate within -40 °C to +85 °C, supporting circuit configurations from 1 to 12 ways with various actuator options. Designed with durable materials like PBT for cases and actuators, and PA66 for bases, they provide a maximum switching voltage of 24 VDC and current of 25 mA. Their mechanical and electrical specifications ensure longevity and performance suitable for diverse industrial and control applications.
Apem NDS08V Dual In Line Switch Specifications:
- Operating Temperature: -40 °C to +85 °C
- Storage Temperature: -40 °C to +85 °C
- Max. Current/Voltage Rating: 25 mA 24 VDC, Contact rating: 100 mA 50 VDC
- Initial Contact Resistance: 50 mΩ max
- Insulation Resistance: 100 MΩ min. at 500 VDC
- Dielectric Strength: 500 VAC min.
- Electrical Life: 2,000 cycles
- Operating force: 1,000 gf (9.8 N) max
- Case & Actuator Material: PBT
- Base Material: PA66
- Contact Material: Gold plated
- Terminal Material: Gold plated brass
- Protection tape: Polyimide
Buy the NDS Series Dual In Line Switches: NDS08V
Discover the reliable NDS series dual in line switches, designed with self-cleaning wiping contacts and gold-plated terminals. Supporting 1 to 12 ways, these switches operate in extreme temperatures from -40 °C to +85 °C, and are washable with tape seal for easy maintenance. Crafted with durable PBT and PA66 materials, they offer excellent electrical and mechanical longevity. Perfect for industrial automation, control panels, and manufacturing, order online today for fast delivery and consistent quality for your electronic switching needs.
Order your NDS Series dual in line switch today and ensure dependable, high-performance switching for your industrial or control projects.
Frequently Asked Questions
Where can I buy Apem NDS08V?
You can click on the BUY or RFQ button to purchase NDS08V from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part NDS08V?
You can download the NDS08V datasheet or visit the Apem website for support.
Who is the manufacturer of NDS08V?
Apem
