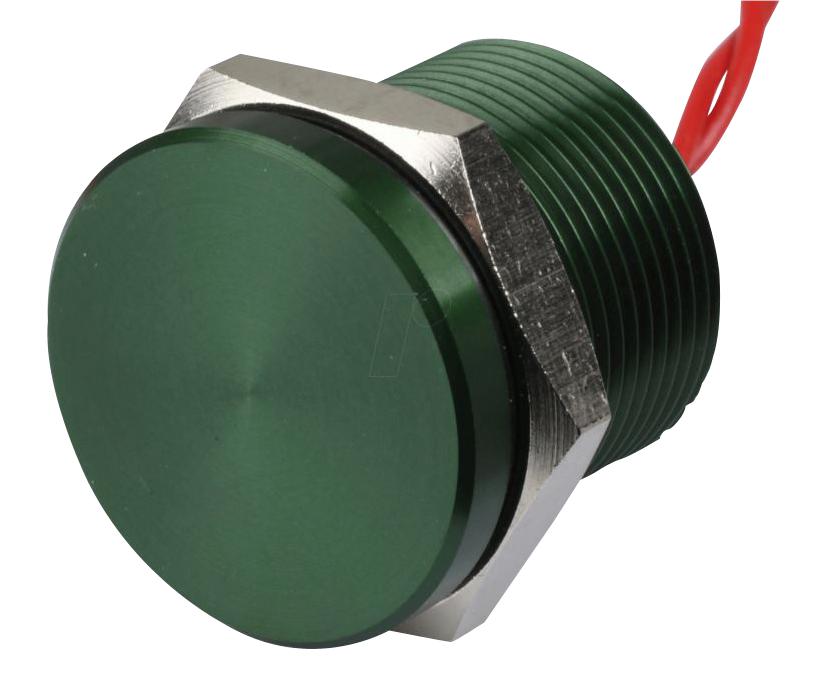

Apem PBAR9AF3000 Piezo Switch
The PBAR9AF3000 is a high-quality piezo switch designed for demanding environments, featuring IP66 sealing and stainless steel 316L construction. It offers long life expectancy, easy-to-clean metal surface, and illumination options including dot and ring LEDs. Suitable for applications requiring reliable switching under explosive atmospheres, it supports various electrical functions, including momentary and latching modes, with ratings up to 24VAC/DC and resistive loads. Its durable design ensures consistent performance in harsh conditions with operating forces between 2 to 6N and a lifespan of 50 million cycles.
Apem PBAR9AF3000 Piezo Switch Specifications:
- Bushing diameter options: 16 mm, 19 mm, 22 mm
- Sealing: IP66 according to IEC 60529
- Material: Stainless steel 316L
- Operating temperature: -40°C to +55°C
- Vibration resistance: 10-500 Hz / 10 g
- Electrical ratings: up to 24VAC/DC, 200mA max.
- Switch resistance (ON): 10Ω max, (OFF): 5MQ min.
- Life expectancy: 50 million cycles
- Operating force: 2 to 6N
- Torque: 2.5Nm to 3Nm
- LED consumption: 10mA (dot), 20mA (ring)
- Terminals: multi-wire leads, 0.22 mm², length 300 mm
- Environmental: suitable for high-pressure wash downs, immersion in water
Buy the Buy APEM Piezo Switch Part Number PBAR9AF3000 Online
Purchase the APEM PBAR9AF3000 piezo switch online now to ensure your project benefits from high reliability, long operational life, excellent sealing against water and dust, and versatile electrical functionalities suitable for explosive atmospheres and harsh industrial conditions. Featuring stainless steel construction, IP66 sealing, and comprehensive illumination options, it is ideal for demanding automation and control applications requiring robust switching solutions. Buy online today for quick delivery and expert support to keep your systems running smoothly and safely.
Order your APEM Series PBAR9AF3000 today and enjoy dependable performance with enhanced durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy Apem PBAR9AF3000?
You can click on the BUY or RFQ button to purchase PBAR9AF3000 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part PBAR9AF3000?
You can download the PBAR9AF3000 datasheet or visit the Apem website for support.
Who is the manufacturer of PBAR9AF3000?
Apem
