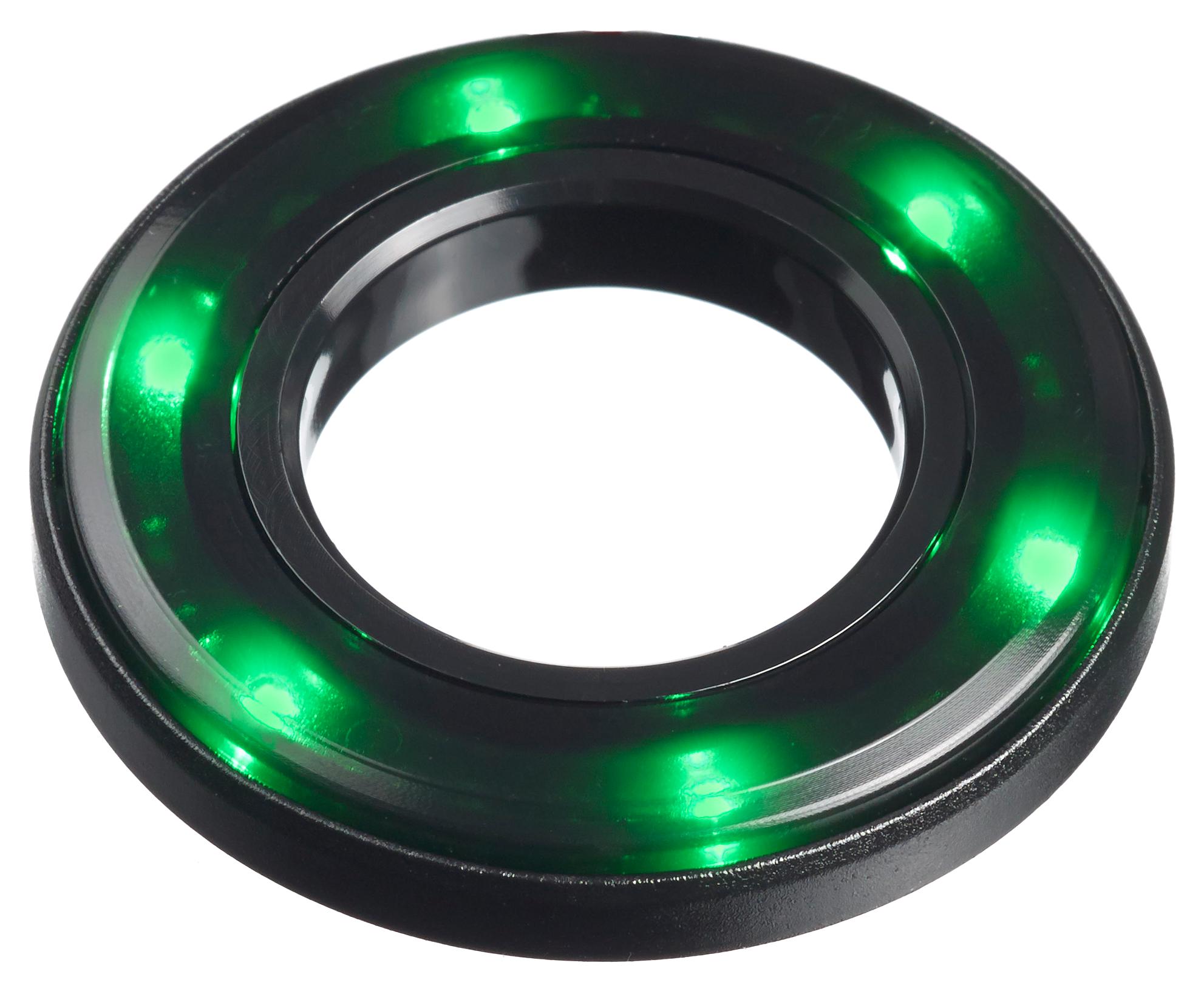

Apem QH22L28RGC Industrial Panel Indicator Light
The QH series Halo LED illumination offers versatile lighting solutions for industrial panels, available in single, dual, and RGB colors. Designed to fit 16, 19, and 22 mm panel cutouts, including oversized options for emergency switches, these sealed units are rated up to IP67 for environmental sealing. They feature a life expectancy of 50,000 hours, with various LED color configurations, operating at 12-24 VDC, and are constructed from durable PC materials. Ideal for indicators, switches, and automation panels requiring high reliability in harsh environments.
Apem QH22L28RGC Industrial Panel Indicator Light Specifications:
- Panel Seal: IP67 to EN60529: 1992
- Operating Voltage: 12 VDC to 24 VDC, with a tolerance of +/-10%
- Operating Current: 42 mA to 20 mA based on voltage
- LED Lifespan: 50,000 Hours
- Materials: Body and Lens made of PC
- Wire Termination: 200 mm, 26 AWG UL1061 wire
- LED Colors: White, Red, Green, Yellow, Blue, RGB
- Size Options: 16 mm, 19 mm, 22 mm, and oversized 22 mm
- Environmental Resistance: Sealed to IP67, EMC immunity EN61000-4-3, EN61000-6-4
- Temperature Range: -30°C to +70°C
- Reverse Voltage: Max 5 VDC
- LED Intensity: Ranges from 90 to 350 med depending on color
- Current: Typical 20 mA per LED, with resistor supply required
- Construction: PC body with frosted or tinted lens options
Buy the Ampere QH22L – Reliable Indicator for Industrial Applications
Order the Ampere QH22L Halo LED indicator online today and enhance your control panels with reliable, IP67 sealed illumination. Designed for harsh environments, it offers multiple color options including RGB, ensuring clear status indication. With a lifespan of 50,000 hours and operating voltage of 12-24 VDC, this indicator is ideal for automation, machinery, and safety systems. Easy to install with 200 mm wire leads, it combines durability and versatility to meet your industrial needs.
Buy Ampere QH22L now and experience durable, high-quality LED illumination perfect for industrial panels and control systems.
Frequently Asked Questions
Where can I buy Apem QH22L28RGC?
You can click on the BUY or RFQ button to purchase QH22L28RGC from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part QH22L28RGC?
You can download the QH22L28RGC datasheet or visit the Apem website for support.
Who is the manufacturer of QH22L28RGC?
Apem
