Apem Q10F5AGXXG24E LED Indicator
The Q10 series 10 mm panel mount LED indicators feature flush diffused LED lights with options for hyper bright, water clear, RGB, bi-color, and tricolor illumination. Designed with a flush chamfered bezel, these indicators offer IP67 sealing for rugged environments and operate effectively at temperatures from -40°C to +85°C. Equipped with stainless steel or anodized aluminum materials, they have a maximum panel thickness of 7 mm, a life expectancy of 100,000 hours, and wire terminations up to 200 mm long. Suitable for various industrial applications requiring reliable visual indicators.
Apem Q10F5AGXXG24E LED Indicator Specifications:
- Size: 10 mm diameter
- Material: Stainless Steel 316L or Anodized Aluminum
- Operating Temperature Range: -40°C to +85°C
- Max Panel Thickness: 7 mm
- Sealing: IP67 option available
- Life Expectancy: 100,000 hours
- Viewing Angle: 60°
- Reverse Voltage: 5 V
- Wire Length: 200 mm
- LED Colors: Red, Green, Yellow, Blue, White, Orange, RGB options, Bi-color, Tricolor
- LED Types: Standard, Super Bright, Hyper Bright
- Electrical Operating Voltage: 1.8 to 33 VDC, various specific voltages for different LED types
- Mounting: Flush bezel style with rear epoxy wires
- Torque: 20 to 25 cNm
- Maximum Panel Thickness: 7 mm

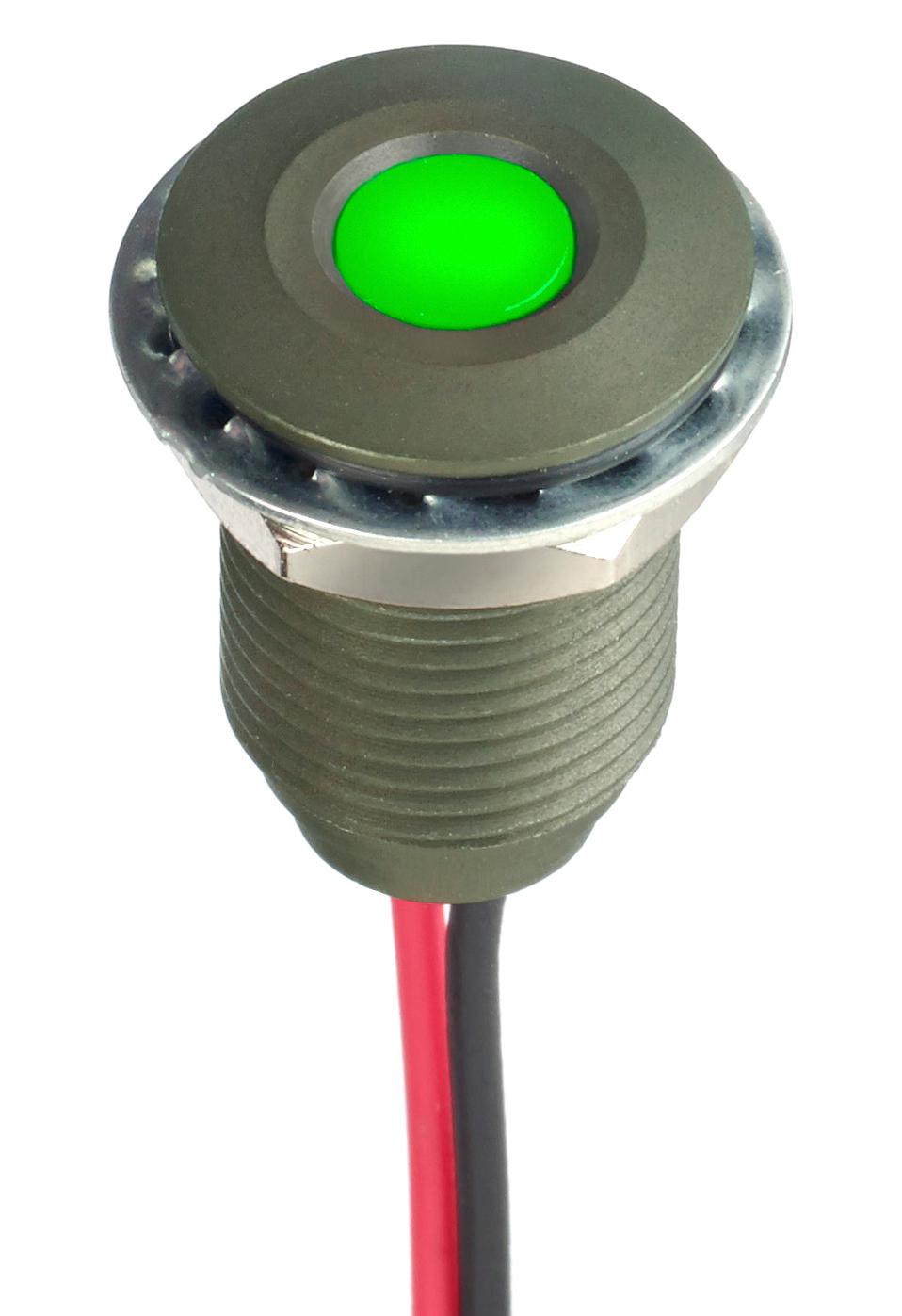

Buy the Q10 Series LED Indicators: 10 mm Panel Mount Indicator - Part Number Q10F5AGXXG24E
Choose the Q10 series LED indicator for reliable, long-lasting visual signaling in industrial settings. Featuring a flush design, IP67 sealing, and a variety of colors including RGB and bi-color options, these indicators are perfect for panel mounting applications. Crafted from durable stainless steel or anodized aluminum, they operate across a wide temperature range of -40°C to +85°C, ensuring performance in harsh conditions. With a long life expectancy of 100,000 hours and wire terminations of 200 mm, they provide clear, bright illumination for safety and operational awareness.
Get Q10 series LED indicators today—built for durability and visibility in rugged industrial environments.
Frequently Asked Questions
Where can I buy Apem Q10F5AGXXG24E?
You can click on the BUY or RFQ button to purchase Q10F5AGXXG24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q10F5AGXXG24E?
You can download the Q10F5AGXXG24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q10F5AGXXG24E?
Apem
