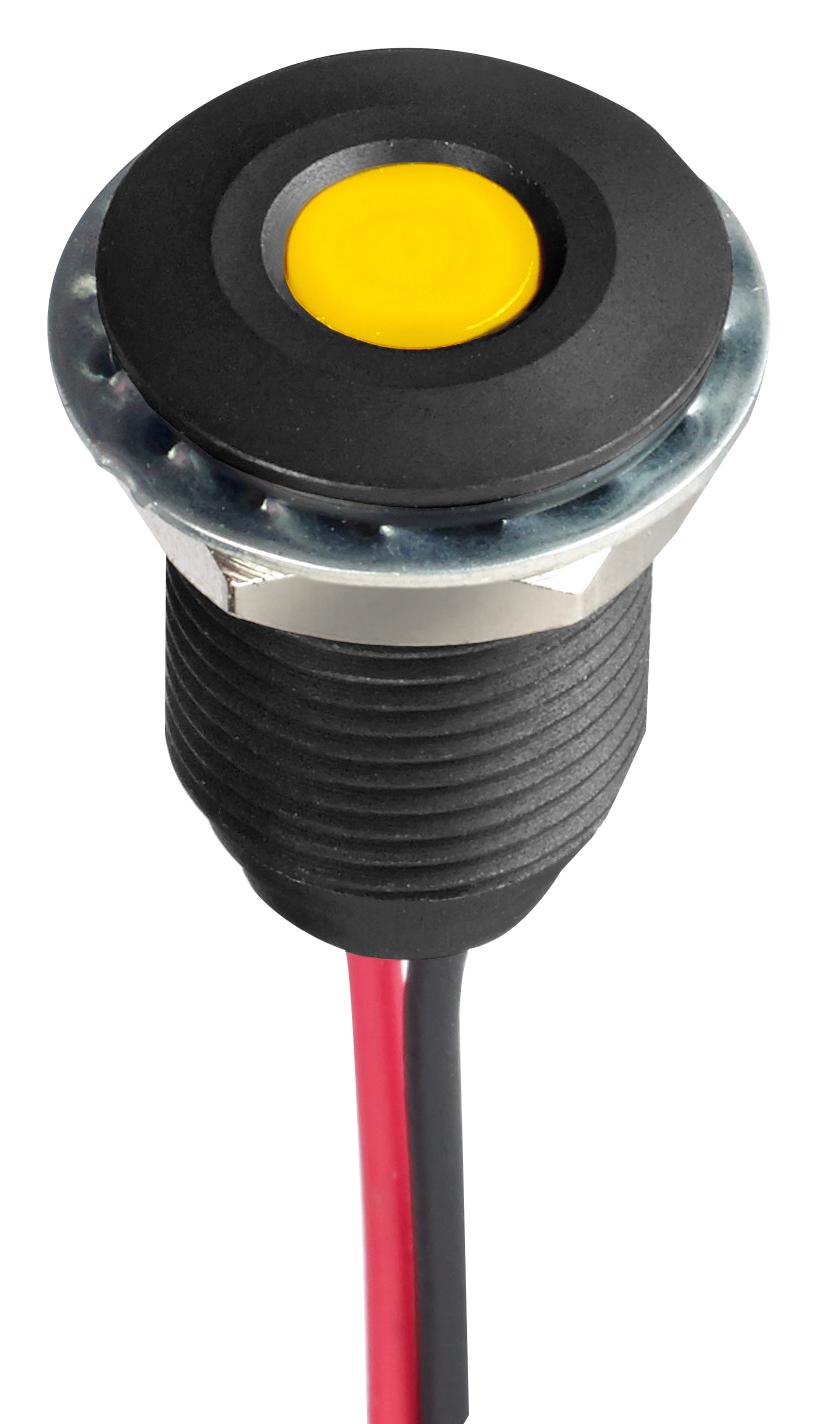

Apem Q10F5ANXXY02E LED Indicator Light
The Q10 series 10 mm panel mount LED indicators feature a 5 mm flush diffused or water clear LED with options for hyper bright or super bright intensities, available in RGB colors. They come with a flush chamfered bezel style and rear epoxy wires for easy connection. Suitable for environments requiring sealing, these indicators operate within -40°C to +85°C, with a rating of IP67 sealing option. Constructed with stainless steel 316L or anodized aluminum, they offer long life expectancy up to 100,000 hours and a versatile viewing angle of 60°. Max panel thickness supports installation up to 7 mm, with maximum reverse voltage of 5 V, and optional flash or steady illumination based on model. Designed for industrial and control applications, these indicators provide reliable visual status signals with a durable, corrosion-resistant build.
Apem Q10F5ANXXY02E LED Indicator Light Specifications:
- LED Size: 5 mm flush diffused or water clear with hyper bright and super bright intensities
- Material: Stainless Steel 316L or Anodized Aluminum with potted rear end
- Sealing: IP67 sealing option available
- Operating & Storage Temperature Range: -40°C to +85°C
- Max Reverse Voltage: 5 V
- Viewing Angle: 60°
- Max Panel Thickness: 7 mm
- Connection: 200 mm long rear epoxy wires
- Illumination Types: Fixed, flashing, bi-color, tricolor options
- LED Colors: Red, Green, Yellow, Blue, White, Orange, RGB, Hyper Bright variants
- Operating Voltage: 1.8 V to 33 V DC/AC depending on model
- Life Expectancy: 100,000 hours
- Torque: 20 to 25 cNm
Buy the APEM Series Q10 LED Indicator: Q10F5ANXXY02E
Enhance your control panels with the durable and reliable LED indicator from the Q10 series. Featuring a 5 mm flush diffused or water clear LED, available in various brightness options and RGB colors, this indicator ensures high visibility and long-lasting performance. With IP67 sealing, stainless steel or anodized aluminum construction, and operating temperatures from -40°C to +85°C, it suits harsh environments. Easy to install with rear epoxy wires, it provides precise visual signals for industrial automation, machinery, and control systems. Order now online for prompt delivery and trusted quality.
Order your APEM Series Q10 LED indicator today and give your industrial control panels the reliable visual status signals they deserve.
Frequently Asked Questions
Where can I buy Apem Q10F5ANXXY02E?
You can click on the BUY or RFQ button to purchase Q10F5ANXXY02E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q10F5ANXXY02E?
You can download the Q10F5ANXXY02E datasheet or visit the Apem website for support.
Who is the manufacturer of Q10F5ANXXY02E?
Apem
