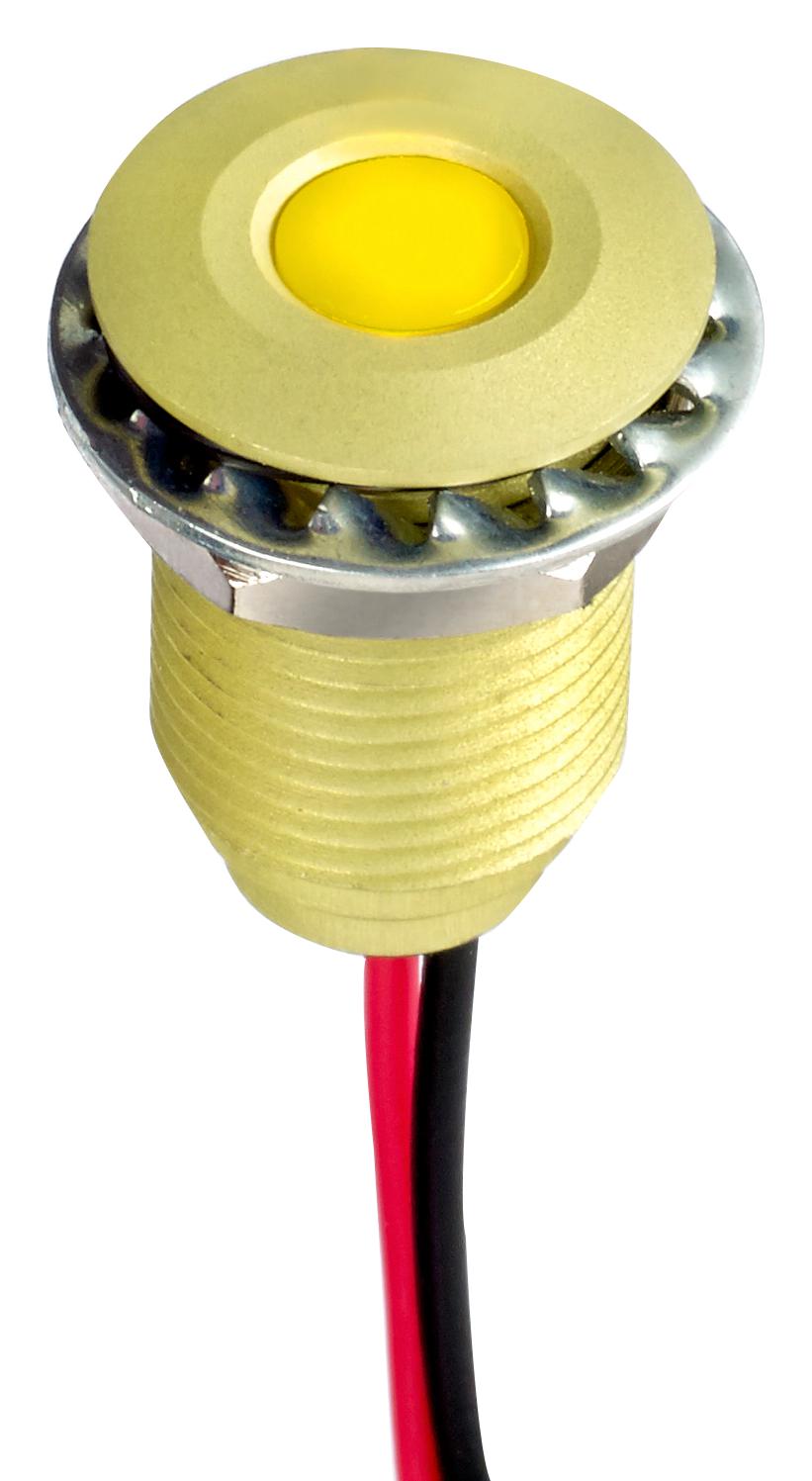

Apem Q10F5AYXXY02E LED Indicator
The Q10 series features 10 mm panel mount LED indicators with flush diffused or hyper bright LEDs, available in RGB, white, and other colors. Made from stainless steel 316L or anodized aluminum, these indicators offer IP67 sealing options, high durability, and a lifespan of 100,000 hours. Designed for easy panel installation with a maximum thickness of 7 mm, they operate at voltages from 1.8 V to 28 VDC or VAC, with various color-changing options through reversing polarity or connecting multiple LEDs. Suitable for industrial, automation, and control applications.
Apem Q10F5AYXXY02E LED Indicator Specifications:
- Series: Q10
- Diameter: 10 mm
- Material: Stainless Steel 316L or Anodized Aluminum
- Sealing: IP67 option available
- Operating Temperature Range: -40°C to +85°C
- Maximum Panel Thickness: 7 mm
- LED Lifespan: 100,000 hours
- Wire Length: 200 mm (standard)
- Wire Gauge: 24 AWG
- Operating Voltage: 1.8 V to 28 VDC/VAC
- Forward Voltage: Red 2 V, Green 3.3 V, Yellow 2 V, Blue 3.3 V, White 3.3 V
- Luminous Intensity: Standard, Super Bright, Hyper Bright options available
- Viewing Angle: 60°
- Installation: Flush bezel style, front or rear epoxy wires
Buy the APEM Series Q10 LED Indicator: Q10F5AYXXY02E
Order the APEM Q10F5AYXXY02E LED indicator online today. Featuring high durability, IP67 sealing, and multiple color options, these indicators are perfect for industrial automation, control panels, and machinery. Easy to install with flush bezel design and reliable LED technology, they provide long-lasting performance and clear visual signals. Shop now to enhance your control systems with high-quality, robust LED indicators designed for demanding environments.
Get APEM Q10F5AYXXY02E today—built for precision, durability, and high visibility in industrial environments.
Frequently Asked Questions
Where can I buy Apem Q10F5AYXXY02E?
You can click on the BUY or RFQ button to purchase Q10F5AYXXY02E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q10F5AYXXY02E?
You can download the Q10F5AYXXY02E datasheet or visit the Apem website for support.
Who is the manufacturer of Q10F5AYXXY02E?
Apem
