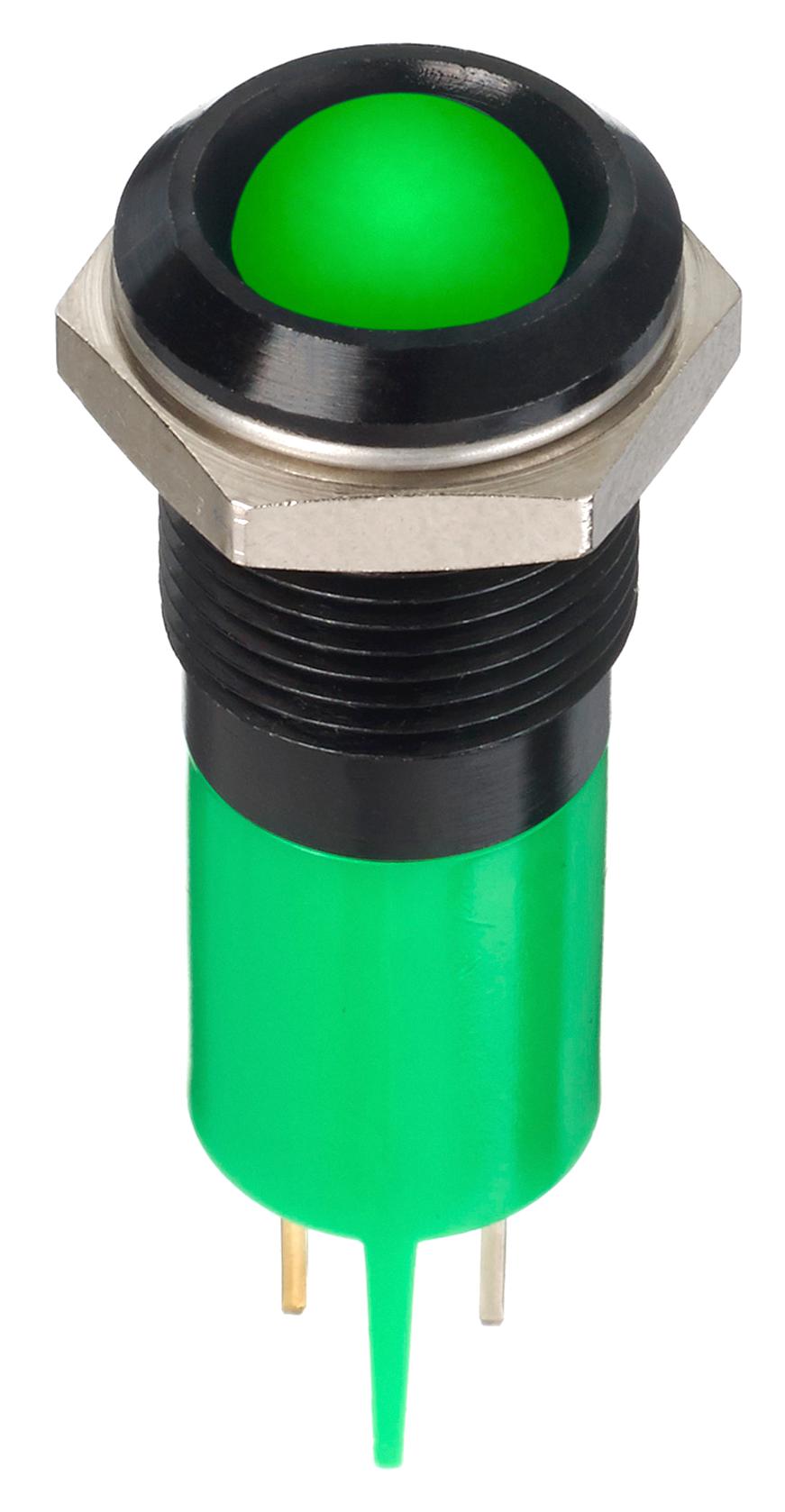

Apem Q16P1BXXHG24E Panel Mount LED Indicator
The Q16 series 16 mm panel mount LED indicators are designed for versatile applications with distinctive features such as secret until lit polycarbonate decals or custom engraving. They offer options for high brightness LEDs, RGB color variants, and sealed IP67 sealing for robust environments. These indicators include durable plated brass bezels finished in bright chrome, black, or satin grey, with various mounting styles including flush, recessed, short body, and wiring options. They operate over a wide temperature range (-30°C to +85°C), with a life expectancy of 100,000 hours, ensuring long-lasting performance in industrial and automation settings.
Apem Q16P1BXXHG24E Panel Mount LED Indicator Specifications:
- Diameter: 16 mm
- Mounting Hole: 16.00 mm ±0.15 mm
- Materials: Plated brass bezel, polycarbonate rear body
- Bezel Finishes: Bright chrome, black, satin grey
- Sealing: IP67 option available
- Operating Temperature Range: -30°C to +65°C (plastic body), -40°C to +85°C (epoxy body)
- Storage Temperature Range: -30°C to +85°C
- Max Reverse Voltage: 5 V
- Viewing Angle: 30-100° depending on model
- Lifespan: 100,000 hours
- Panel Thickness: Max 11 mm
- Terminals: Solder lug/faston, pins, or 200 mm wire terminations
- LED Types: Standard, super bright, hyper bright, RGB, bi-color, tricolor
- LED Forward Voltage: Red 2.0 V, Green 2.2 V, Yellow 2.4 V, Blue 3.3 V, White 3.3 V, Orange 2 V
- Operating Currents: 20 mA (typical), various voltages from 6 VDC to 220 VAC
- Connection Options: Rear epoxy wires, pins, short body wires, solder lug/faston
- Certificates: UL, CSA (specify if applicable)
Buy the Buy APEM Q16 Series Panel Mount LED Indicator Part Number Q16P1BXXHG24E Online
Order the APEM Q16 series panel mount LED indicator online now for superior visibility and durability. Designed with various mounting options, high-brightness LEDs, and optional IP67 sealing, these indicators are perfect for industrial automation, control panels, and signaling applications. Easy to install with solder lug or wire terminations, they are built for long-lasting performance with an impressive lifespan of 100,000 hours. Enhance your equipment’s clarity and reliability by purchasing these versatile and robust indicators today.
Get APEM Q16 series LED indicator today—featuring rugged construction, high brightness LEDs, and custom engraving options for your industrial panel needs.
Frequently Asked Questions
Where can I buy Apem Q16P1BXXHG24E?
You can click on the BUY or RFQ button to purchase Q16P1BXXHG24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q16P1BXXHG24E?
You can download the Q16P1BXXHG24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q16P1BXXHG24E?
Apem
