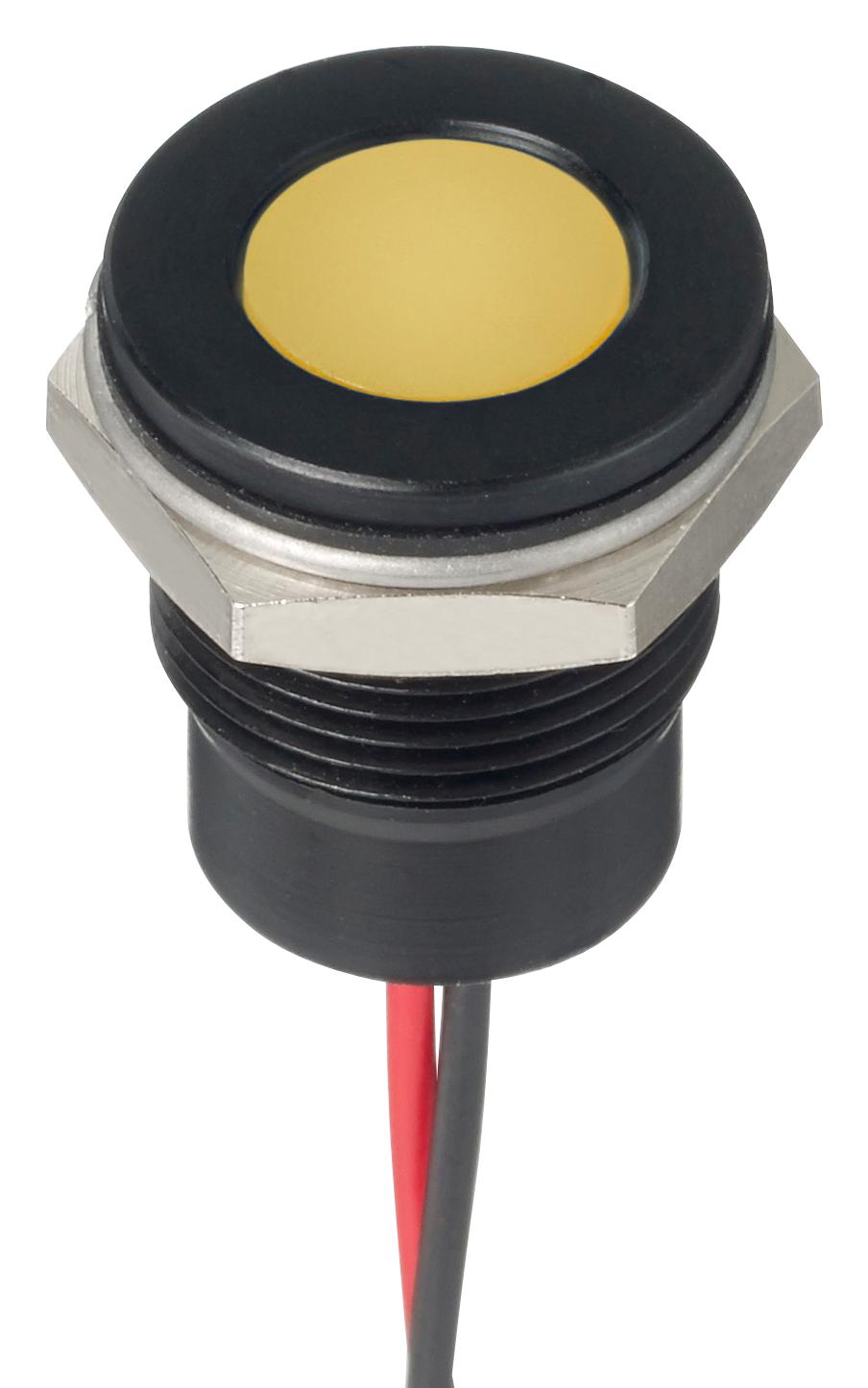

Apem Q127F5BXXHY12E LED Indicator
The Q12-7 series comprises 12.7 mm (0.5 inch) panel mount LED indicators designed for industrial applications. These indicators feature water-clear or diffused epoxy lenses with high brightness LEDs, operating across 2VDC to 220VAC. They offer various mounting options, including solder lug, faston terminals, pins, and long wire terminations, with sealed IP67 variants for harsh environments. Constructed with plated brass bezels finished in chrome, black, or satin gray, and molded polycarbonate bodies, these indicators have a lifespan of 100,000 hours and viewing angles from 30° to 100°.
Apem Q127F5BXXHY12E LED Indicator Specifications:
- Lens Types: Diffused epoxy or water clear
- LED Brightness Options: Super Bright, Hyper Bright
- Operating Voltage Range: 2VDC to 220VAC
- Terminals: Solder lug, faston, pins, or 200 mm long wire
- Material: Plated brass bezel with chrome, black, or satin gray finish
- Body Material: Molded polycarbonate
- Sealing: IP67 water-proof version available
- Operating & Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Max Reverse Voltage: 5 V
- Viewing Angle: 30° to 100° depending on model
- Life Expectancy: 100,000 hours
- Maximum Panel Thickness: 7 mm
- Mounting: Panel mount with various bezel styles
- Electrical Specifications: 2V to 220V, various LED intensities
- Standards: UL, CSA compliant (where applicable)
Buy the Industrial LED Indicators – Reliable Panel Mount Display for Industrial Applications
Order the Q12-7 series LED indicators online today for reliable, high-brightness illumination in industrial settings. Featuring IP67 sealing options, multiple terminal types, and durable construction with chrome, black, or gray finishes, these indicators are ideal for controlling and signaling applications. With operating voltages from 2VDC to 220VAC, a lifespan of 100,000 hours, and a maximum panel thickness of 7 mm, they combine visibility, ruggedness, and ease of installation. Perfect for demanding industrial environments, buy now to enhance your equipment's signaling performance.
Buy Q12-7 series LED indicators now and experience unmatched durability, bright illumination, and versatile mounting options suitable for harsh industrial environments.
Frequently Asked Questions
Where can I buy Apem Q127F5BXXHY12E?
You can click on the BUY or RFQ button to purchase Q127F5BXXHY12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q127F5BXXHY12E?
You can download the Q127F5BXXHY12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q127F5BXXHY12E?
Apem
