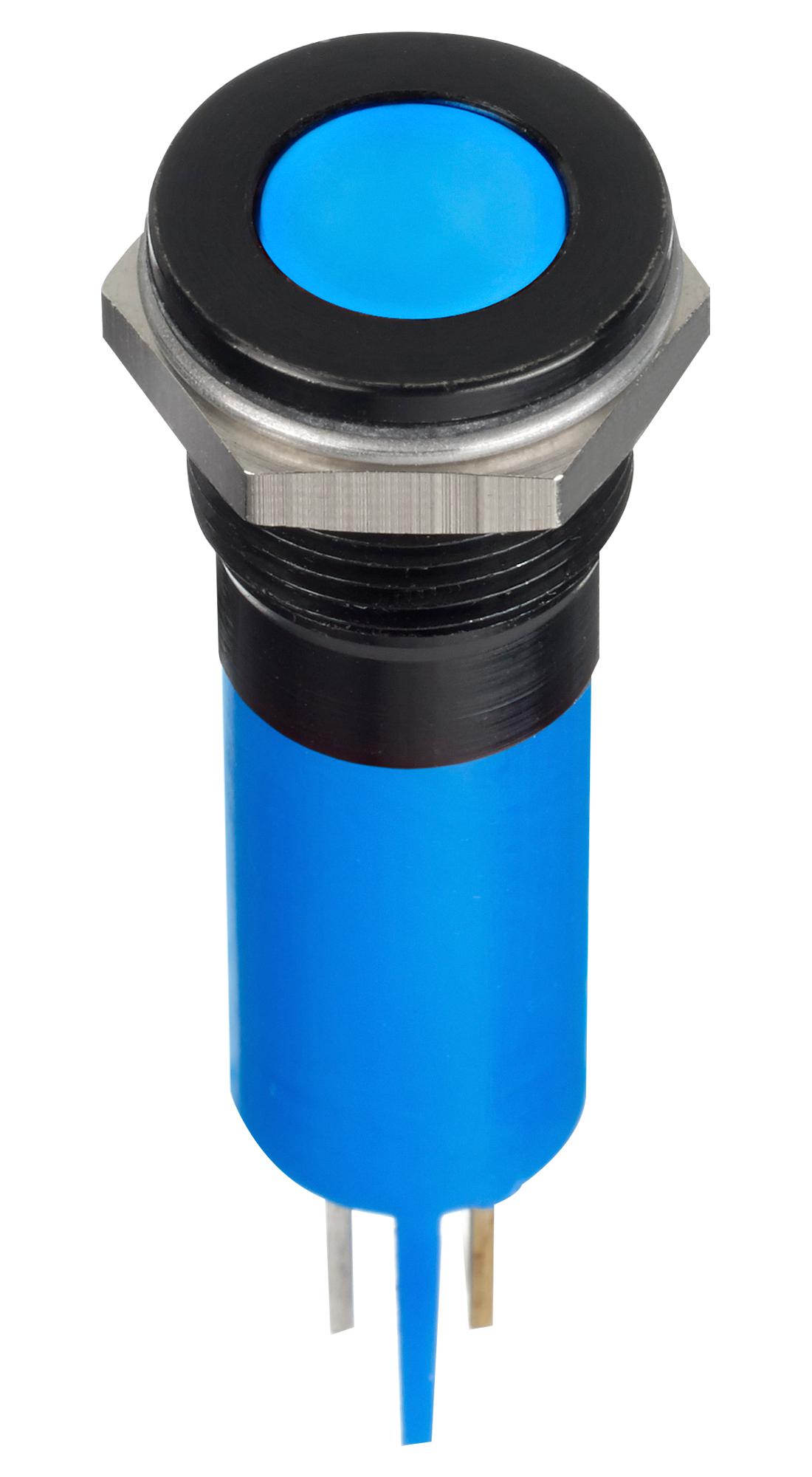

Apem Q12F1BXXB12E LED Indicator
The Q12 series consists of 12 mm panel mount LED indicators designed for visual signaling and status indication in industrial environments. Featuring a variety of colors including red, green, yellow, blue, white, and orange, these LED indicators offer super bright and hyper-bright lighting options to ensure visibility. They support multiple voltage levels from 6 VDC to 220 VAC, with sealed IP67 versions suitable for harsh conditions. The indicators have durable materials such as plated brass bezels with chrome, black, or satin grey finishes, and come with different mounting options including prominent or recessed bezels, and terminal configurations for versatile installation. With a life expectancy of 100,000 hours, these LEDs are ideal for demanding industrial applications requiring reliable, long-lasting performance.
Apem Q12F1BXXB12E LED Indicator Specifications:
- Lens Diameter: 12 mm
- Voltages Supported: 6 VDC, 12 VDC, 24 VDC, 28 VDC, 110 VAC, 220 VAC
- LED Colors: Red, Green, Yellow, Blue, White, Orange, bi-color options
- Sealing: Unsealed or IP67 sealed versions
- Materials: Plated brass bezel, molded polycarbonate rear body
- Operating Temperature Range: -30°C to +85°C
- Max Reverse Voltage: 5 V
- Viewing Angle: 30-100° depending on model
- Life Expectancy: 100,000 hours
- Terminals: Solder lug, faston, pins, or wires, standard length 200 mm
- Panel Thickness: Max 7 mm
- Soldering Temp: 300°C for 3 seconds
- Max Panel Mounting Hole: 12 mm
Buy the APEM Series Q12 LED Indicator: Q12F1BXXB12E
Order the Q12 series LED indicators online now for dependable visual signaling in demanding industrial settings. Featuring bright LEDs in multiple colors and sealed IP67 options, these indicators deliver long-lasting performance. With various voltage ratings from 6 VDC to 220 VAC, durable chrome or grey bezels, and versatile mounting options, they suit diverse applications. Purchase today for quick delivery and enhance your equipment’s signaling capability with reliable, high-quality LED indicators designed for harsh environments and extended use.
Get Q12 series LED indicators today—built for visibility, durability, and industrial performance.
Frequently Asked Questions
Where can I buy Apem Q12F1BXXB12E?
You can click on the BUY or RFQ button to purchase Q12F1BXXB12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q12F1BXXB12E?
You can download the Q12F1BXXB12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q12F1BXXB12E?
Apem
