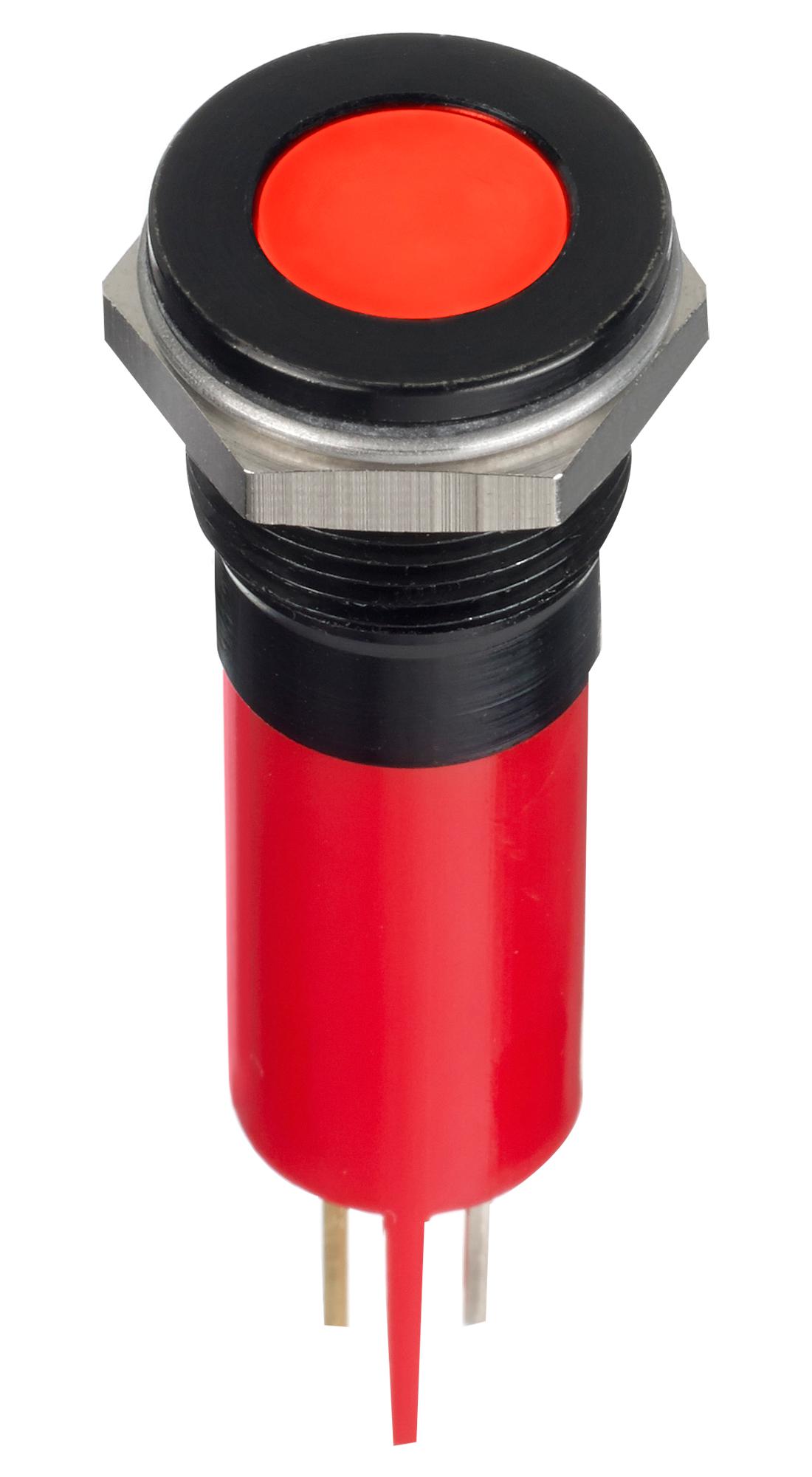

Apem Q12F1BXXHR12E LED Indicator
This Q12 series panel mount LED indicators feature 12 mm diffused epoxy lenses or water-clear lenses, with bright, hyper-bright LEDs available in various colors such as red, green, yellow, blue, and white. Suitable for industrial and control panel applications, these indicators operate from 2VDC to 220VAC, with options for sealed IP67 environments or unsealed mounting. They have long lifespan up to 100,000 hours, with different bezel finishes including bright chrome, black, and satin grey. Termination options include solder lug, faston, pins, or wires, making them versatile for diverse wiring needs. Designed for maximum panel thickness of 7 mm and equipped with viewing angles from 30° to 100°, they are ideal for status indication in demanding environments.
Apem Q12F1BXXHR12E LED Indicator Specifications:
- Lens Type: 8 mm diffused epoxy or water-clear
- LED Colors: Red, Green, Yellow, Blue, White, Orange, Bi-color, Tri-color
- Operating Voltage: 2VDC to 220VAC
- Luminous Intensity: Standard, Super Bright, Hyper Bright options
- Viewing Angle: 30° to 100° (dependent on model)
- Lifespan: Up to 100,000 hours
- Sealing: IP67 options or unsealed
- Material: Plated brass bezel in chrome, black or satin grey; molded polycarbonate rear body
- Max Panel Thickness: 7 mm
- Terminals: Solder lug, faston, pins, or wires (200 mm length)
- Temperature Range: Rear plastic body -30°C to +65°C; epoxy body -40°C to +85°C
- Max Reverse Voltage: 5V
- Torque: 75 cNm
- Diameter: 12 mm
- Mounting Hole: 12 mm
- Sealing: IP67 possible with sealing option
- Voltage Range: 6VDC to 28VDC, 110VAC, 220VAC
Buy the Acme Q12F1BXXHR12E – Reliable LED Indicators for Industrial Applications
Purchase the Acme LED Indicator online today—engineered for durability and visibility in industrial environments. These 12 mm panel mount indicators come with multiple lens options, bright LED types, and robust construction suitable for control panels and machinery. They operate from low voltage to mains power, ensuring compatibility with various systems. Available in sealed IP67 variants for harsh conditions or unsealed versions for general use, they feature long lifespan up to 100,000 hours, diverse mounting styles, and color options. Order now to enhance your equipment's status indication with high-performance LED indicators.
Get Acme Q12F1BXXHR12E today—built for precision and long-lasting durability with high brightness and versatile mounting options.
Frequently Asked Questions
Where can I buy Apem Q12F1BXXHR12E?
You can click on the BUY or RFQ button to purchase Q12F1BXXHR12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q12F1BXXHR12E?
You can download the Q12F1BXXHR12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q12F1BXXHR12E?
Apem
