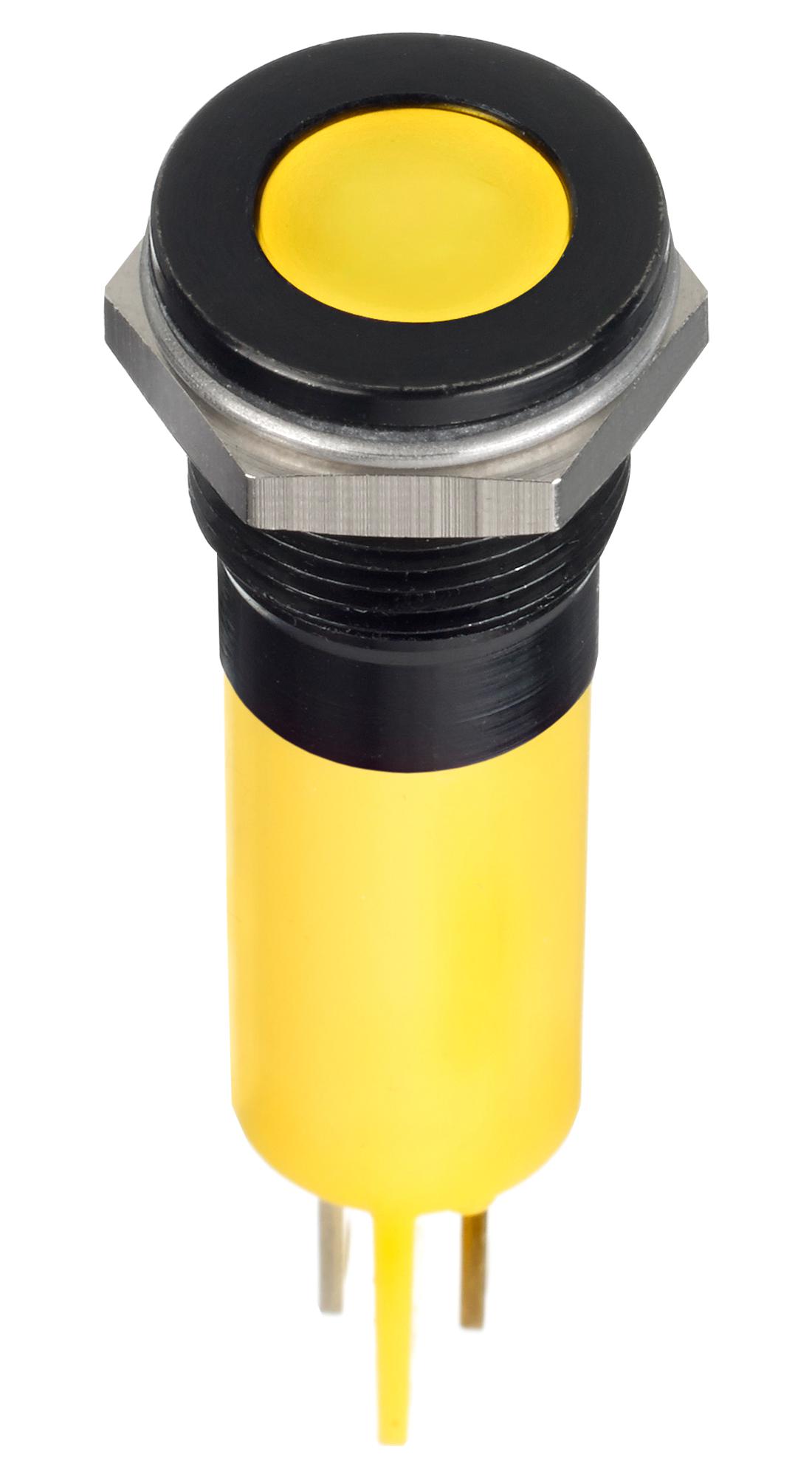

Apem Q12F1BXXHY220E LED Indicator
The Q12 series panel mount LED indicators are designed for prominent, water-resistant, and environmentally sealed indicator applications. They feature a 12 mm diameter, available in multiple bezel styles including prominent, recessed, and flush, with various terminal options such as solder lug, fastons, and pins. These LEDs operate at voltages from 2VDC to 220VAC, with options for different colors like red, green, yellow, blue, white, and orange. They provide high luminous intensity, long life expectancy of 100,000 hours, and an IP67 sealing rating for rugged environments, suitable for industrial and electronic control panels.
Apem Q12F1BXXHY220E LED Indicator Specifications:
- Diameter: 12 mm
- Sealing: IP67 (waterproof option available)
- Voltage Range: 2VDC to 220VAC
- LED Colors: Red, Green, Yellow, Blue, White, Orange, Bi-color, Tri-color
- Luminous Intensity: Super Bright and Hyper Bright options available
- Lifespan: 100,000 hours
- Operating Temperature: -30°C to +85°C depending on body type
- Viewing Angle: 30-100° (model dependent)
- Material: Moulded polycarbonate rear body, plated brass bezel
- Mounting Hole: 12 mm
- Terminal Options: Solder lug, fastons, pins, wires (lengths vary)
- Max Panel Thickness: 7 mm
- Max Reverse Voltage: 5 V
- Torque: 75 cNm
Buy the Brand Series Q12 LED Indicators: Q12F1BXXHY220E
Purchase the Brand Q12F1BXXHY220E LED indicator online today and enjoy reliable performance with long-lasting LEDs, water-resistant IP67 sealing, and versatile mounting options. Perfect for industrial control panels needing durable and bright status indicators. Choose from various colors and terminal configurations, including solder lug, fastons, and wire options. Easy to install with high visibility, these indicators ensure your equipment is clearly signaled in demanding environments. Order now and upgrade your control systems with top-quality LEDs built for durability and clarity.
Get Brand Q12F1BXXHY220E today—waterproof, high-brightness LED indicator designed for industrial environments.
Frequently Asked Questions
Where can I buy Apem Q12F1BXXHY220E?
You can click on the BUY or RFQ button to purchase Q12F1BXXHY220E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q12F1BXXHY220E?
You can download the Q12F1BXXHY220E datasheet or visit the Apem website for support.
Who is the manufacturer of Q12F1BXXHY220E?
Apem
