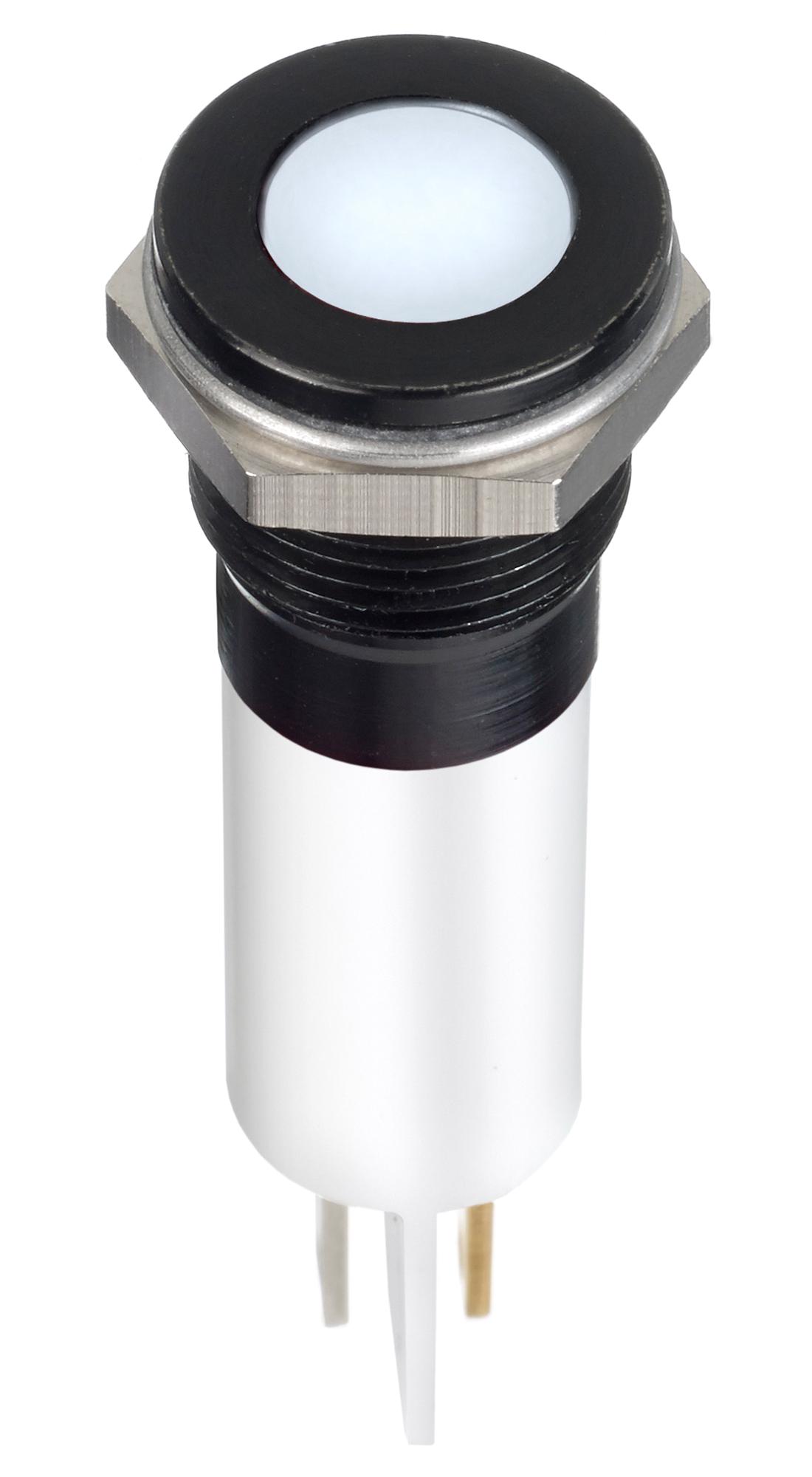

Apem Q12F1BXXW12E LED Indicator
The Q12 series panel mount LED indicators feature 12 mm diameter with various illumination options including super bright and hyper bright LEDs in multiple colors. They offer water-resistant IP67 sealing, making them suitable for demanding environments. The indicators have a wide viewing angle and long lifespan of 100,000 hours. Available with different mounting styles such as prominent and recessed bezels, they support voltage ranges from 2VDC to 220VAC, and feature durable materials like plated brass bezels and molded polycarbonate bodies, ensuring reliable electrical and environmental performance.
Apem Q12F1BXXW12E LED Indicator Specifications:
- Diameter: 12 mm
- Sealing: IP67 (optional)
- Lens: 8 mm diffused epoxy or water clear
- LED Colors: Red, Green, Yellow, Blue, White, Orange, Bi-color, Tri-color
- Voltage Range: 2VDC to 220VAC
- Current: 20 mA (typical)
- Viewing Angle: 30-100°
- Lifespan: 100,000 hours
- Materials: Plated brass bezel, molded polycarbonate body
- Operating Temperature: -30°C to +85°C depending on body type
- Termination: Solder lug, faston, pins, or wires
- Mounting Hole: 12 mm diameter, max panel thickness 7 mm
Buy the AMETEK Series Q12 LED Indicators: Q12F1BXXW12E
Order the AMETEK LED Indicator online today to ensure reliable performance in industrial environments. These 12 mm panel mount LED indicators feature bright LEDs, high durability, and IP67 sealing options. Suitable for a wide voltage range from 2VDC to 220VAC, they support various mounting styles and termination types, making installation flexible and straightforward. Crafted with high-quality materials like plated brass and polycarbonate, these indicators are designed for long-term use. Purchase now for quick delivery and enhanced visibility in your control panels and machinery.
Get AMETEK Q12F1BXXW12E today—built for precision, long-lasting durability, and versatile installation options.
Frequently Asked Questions
Where can I buy Apem Q12F1BXXW12E?
You can click on the BUY or RFQ button to purchase Q12F1BXXW12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q12F1BXXW12E?
You can download the Q12F1BXXW12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q12F1BXXW12E?
Apem
