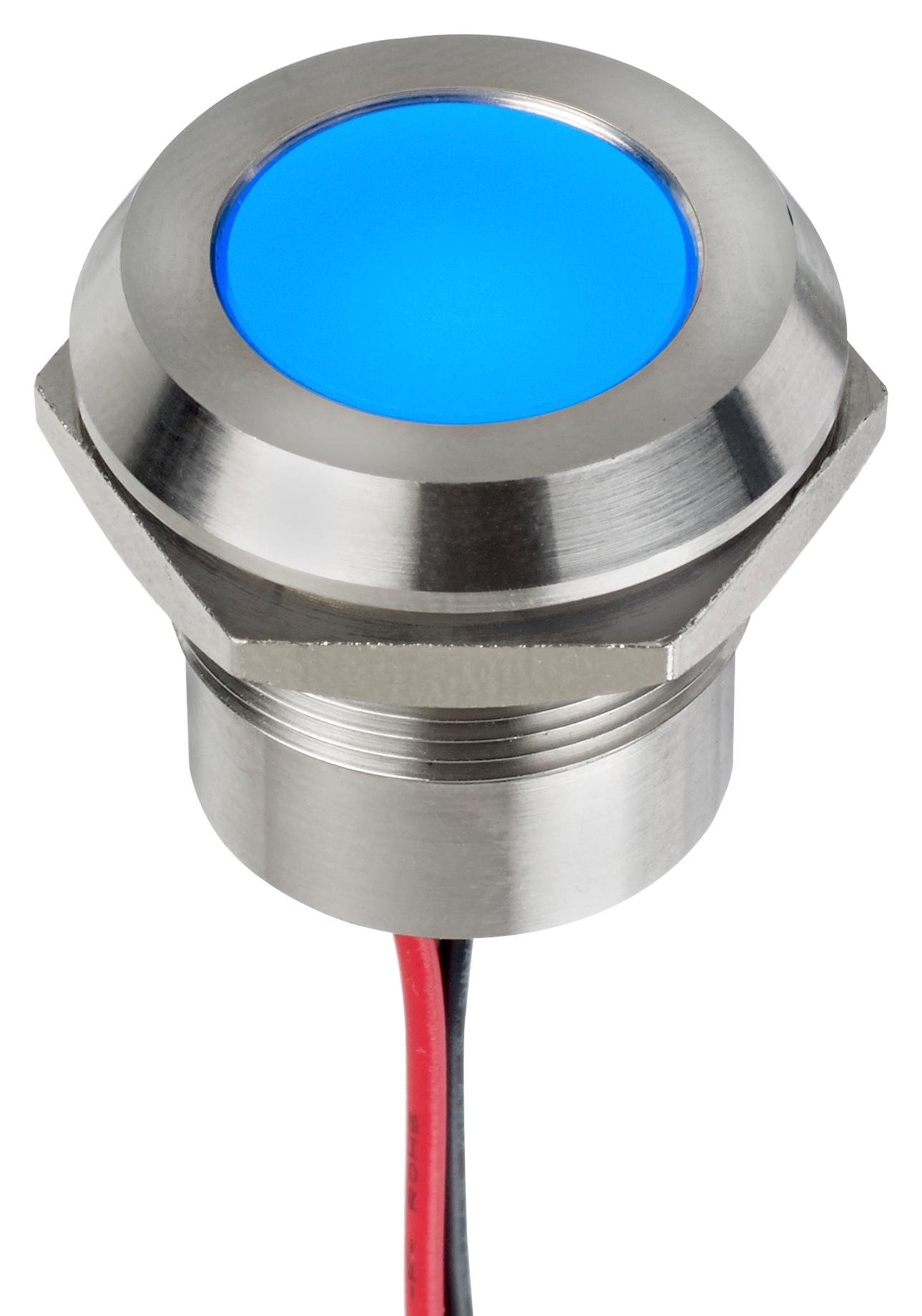

Apem Q22Y5SXXB12E LED Indicator
The Q22 series are 22 mm panel mount LED indicators designed for various illumination needs, including super bright, RGB, bi-color, and tri-color options. They feature a durable construction with plated brass bezels finished in bright chrome, black, or satin grey, and a molded polycarbonate rear body. These indicators are sealed up to IP67, operate within a temperature range of -40°C to +85°C, and have a lifespan of 100,000 hours. They include options for different mounting styles, terminal types, and voltage ratings, suitable for both industrial and automotive applications. Easy to install, they support multiple wiring and termination configurations, with customizable engraving options available for branding or identification.
Apem Q22Y5SXXB12E LED Indicator Specifications:
- Diameter: 22 mm
- Sealing: IP67 optional
- Operating Temperature Range: -40°C to +85°C
- Life Expectancy: 100,000 hours
- Bezel Material: Plated brass finished in bright chrome, black, or satin grey
- Rear Body Material: Moulded polycarbonate
- Max Panel Thickness: 12 mm (Prominent), 10 mm (Flush)
- LED Types: Super Bright, RGB, bi-color, tri-color
- Voltage Ratings: 05V to 28VDC, 110VAC, 220VAC
- Viewing Angle: 30-100°
- Electrical Max Reverse Voltage: 5 V
- Mounting Hole Size: 22 ± 0.15 mm
- Termination Options: Solder lug, faston, pins, wires
- Construction: Metal bezel, plastic rear body
- Operating Current: Max 40 mA
- Color Options: Red, Green, Yellow, Blue, White, RGB, Bi-color, Tri-color
- Luminous Intensity: Up to 1,000 med for white LEDs
- Connection: Gold faston, rear epoxy wires (standard 200 mm length)
Buy the APEM Series Q22 LED Indicator: Q22Y5SXXB12E
Order the APEM LED Indicator today online—designed for reliability and long-lasting performance. Perfect for industrial control systems, automation, and machinery, these 22 mm indicators feature IP67 sealing, multiple color and illumination options, and various mounting and wiring configurations. Enhance your equipment with LEDs that offer up to 100,000 hours of service. Choose from super bright, RGB, bi-color, and tri-color options, all easy to install with standard terminal connections. Purchase now for quality that stands the test of time, ensuring optimal visibility and safety in demanding environments.
Get APEM Q22Y5SXXB12E today—built for precision, durability, and versatile application in industrial environments.
Frequently Asked Questions
Where can I buy Apem Q22Y5SXXB12E?
You can click on the BUY or RFQ button to purchase Q22Y5SXXB12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q22Y5SXXB12E?
You can download the Q22Y5SXXB12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q22Y5SXXB12E?
Apem
