Apem Q12F1BXXW24E LED Indicator

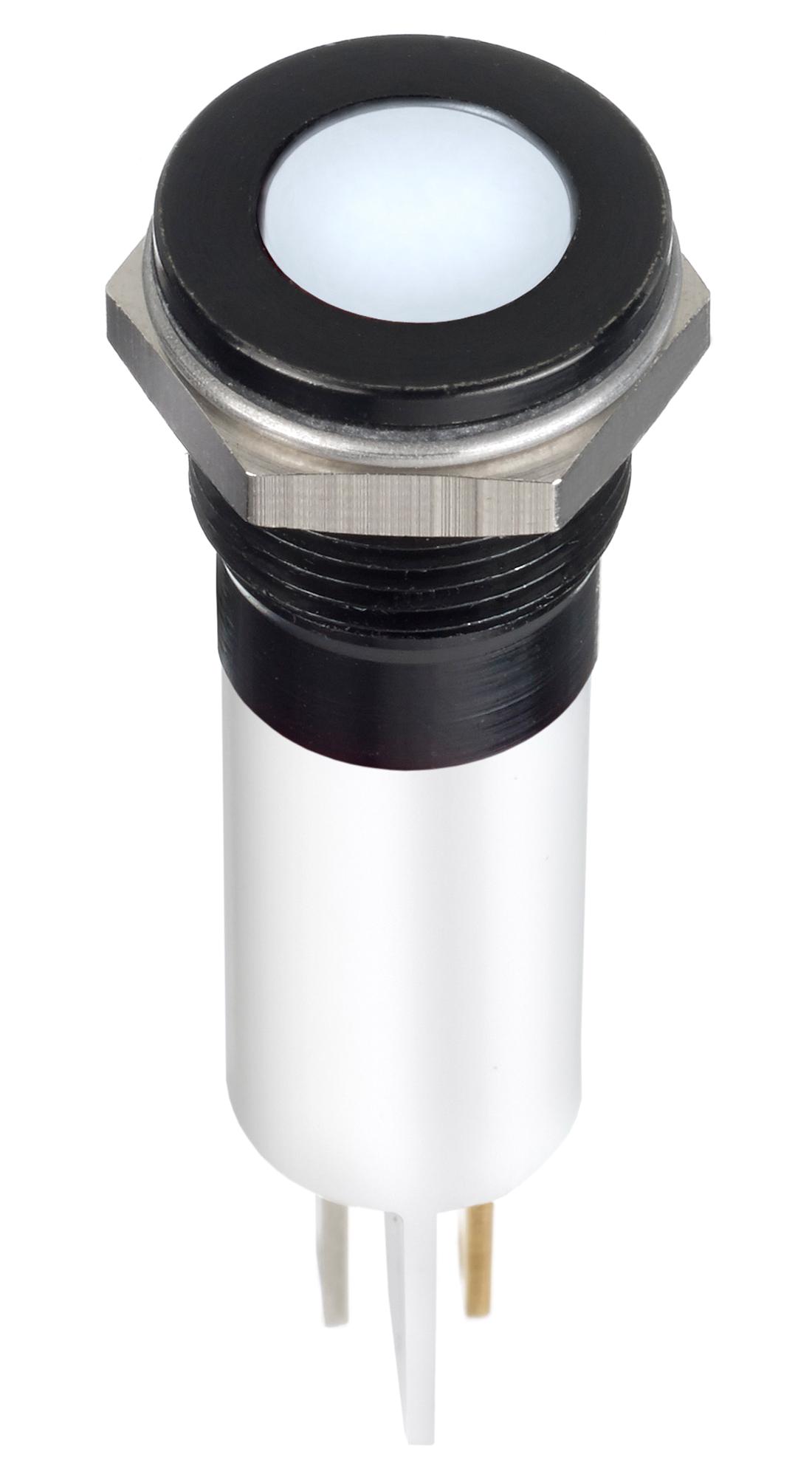

The Q12 series panel mount LED indicators feature 12 mm diameter lenses with optional diffused epoxy or water-clear diffusers for high visibility. They operate across a wide voltage range from 2VDC to 220VAC, with options for super bright LEDs at various colors and high luminous intensities. Constructed with plated brass bezels finished in chrome, black, or satin grey, and molded polycarbonate rear bodies, these indicators offer IP67 sealing for robust environmental protection. They are suitable for industrial control panels, equipment indicator lights, and automation systems, with a life expectancy of up to 100,000 hours and various mounting configurations, including solder lug, faston, pins, or wires.
Apem Q12F1BXXW24E LED Indicator Specifications:
- Lens Diameter: 12 mm
- Operating Voltage Range: 2VDC to 220VAC
- LED Brightness: Super Bright, Hyper Bright options available
- Luminous Intensity: Up to 12,000 mcd depending on model
- Viewing Angle: 30-100°
- Material: Plated brass bezel, molded polycarbonate rear body
- Finish: Bright chrome, black, satin grey
- Sealing: IP67 optional
- Maximum Panel Thickness: 7 mm
- Operating & Storage Temperature: -30°C to +85°C depending on body type
- Reverse Voltage: 5 V maximum
- Mounting Hole Size: 12 mm
- Terminals: Solder lug, faston, pins, or wires (200 mm UL1061, 24 AWG)
- Life Expectancy: approximately 100,000 hours
- Clamp Torque: 75 cNm
Buy the IndustrialSwitch Q12F1BXXW24E – Reliable LED Indicator for Industrial Applications
Order the LED indicator series online today for reliable performance in industrial automation, control panels, and machinery. Featuring a 12 mm lens, wide voltage range from 2V to 220VAC, and options for super bright or hyper bright LEDs, these indicators ensure high visibility and long operational life. They are constructed with durable materials, sealed with IP67 rating, and easy to install with various terminal options. Affordable, high-quality, and quickly shipped, these LED indicators are essential for professional electrical and industrial applications.
Get IndustrialSwitch Q12F1BXXW24E today—built for precision, durability, and high visibility in industrial control systems.
