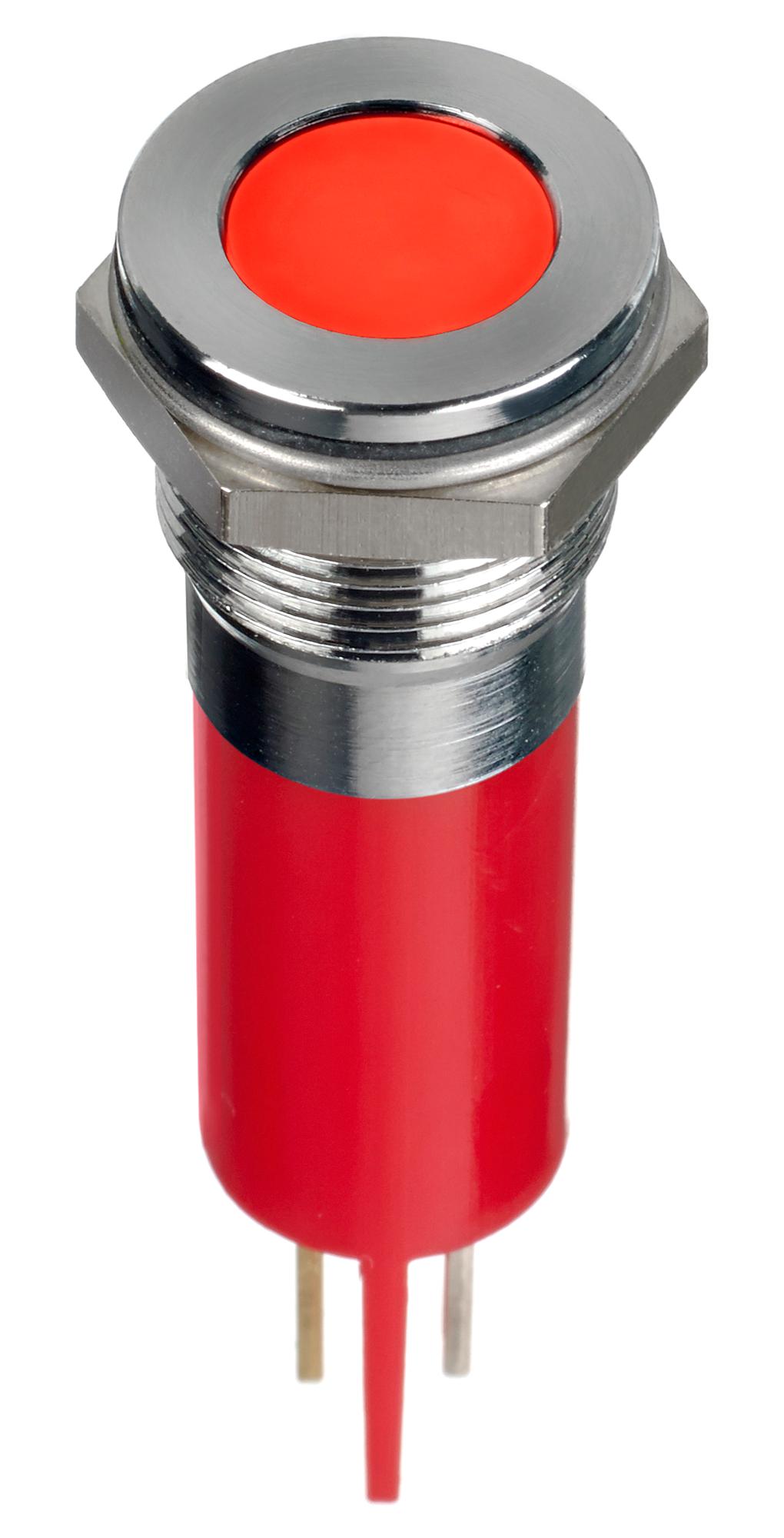

Apem Q12F1CXXHR12E Panel Mount LED Indicator
The Q12 series panel mount LED indicators feature 12 mm diameter lenses with high-intensity, super bright LEDs available in various colors, including red, green, yellow, blue, white, and orange. Designed for easy installation with options for solder lug, faston terminals, pins, or long wire terminations. They provide excellent visibility with a viewing angle of 30-100°, environmental sealing up to IP67, and a lifespan of 100,000 hours. Suitable for industrial and electronic equipment, these indicators operate across a wide voltage range from 2VDC to 220VAC, ensuring reliable performance in diverse applications.
Apem Q12F1CXXHR12E Panel Mount LED Indicator Specifications:
- Lens Diameter: 12 mm
- Viewing Angle: 30-100°
- Lifespan: 100,000 hours
- Operating Voltage: 2VDC to 220VAC
- Sealing: IP67 option available
- Environmental Temperature Range: -40°C to +85°C (Epoxy body), -30°C to +65°C (Plastic body)
- Max Reverse Voltage: 5 V
- Materials: Plated brass bezel, moldings in polycarbonate, epoxy body
- Terminal Options: Solder lug, faston, pins, or long wire
- LED Colors: Red, Green, Yellow, Blue, White, Orange, Bi-color, Tri-color
- LED Intensity: Super Bright and Hyper Bright variants
- Mounting Hole: 12 mm, maximum panel thickness 7 mm
- Connectors: 200 mm long wires, UL1061 AWG 24
Buy the Buy Brand Q12 Series Panel Mount LED Indicators Part Number Q12F1CXXHR12E Online
Enhance your electronic and industrial equipment with our high-quality 12 mm panel mount LED indicators. Featuring super bright LEDs in multiple colors, these indicators guarantee excellent visibility and durability. Their IP67 sealing ensures protection against dust and water, suitable for harsh environments. Easy to install with various terminal options including solder lug, faston, pins, or long wires, they operate across a wide voltage range from 2VDC to 220VAC. Invest in these reliable indicators to ensure your systems are clearly illuminated and highly visible in any situation.
Buy Brand Q12 Series panel mount LED indicators now and experience reliable, high-brightness illumination for industrial and electronic applications.
Frequently Asked Questions
Where can I buy Apem Q12F1CXXHR12E?
You can click on the BUY or RFQ button to purchase Q12F1CXXHR12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q12F1CXXHR12E?
You can download the Q12F1CXXHR12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q12F1CXXHR12E?
Apem
