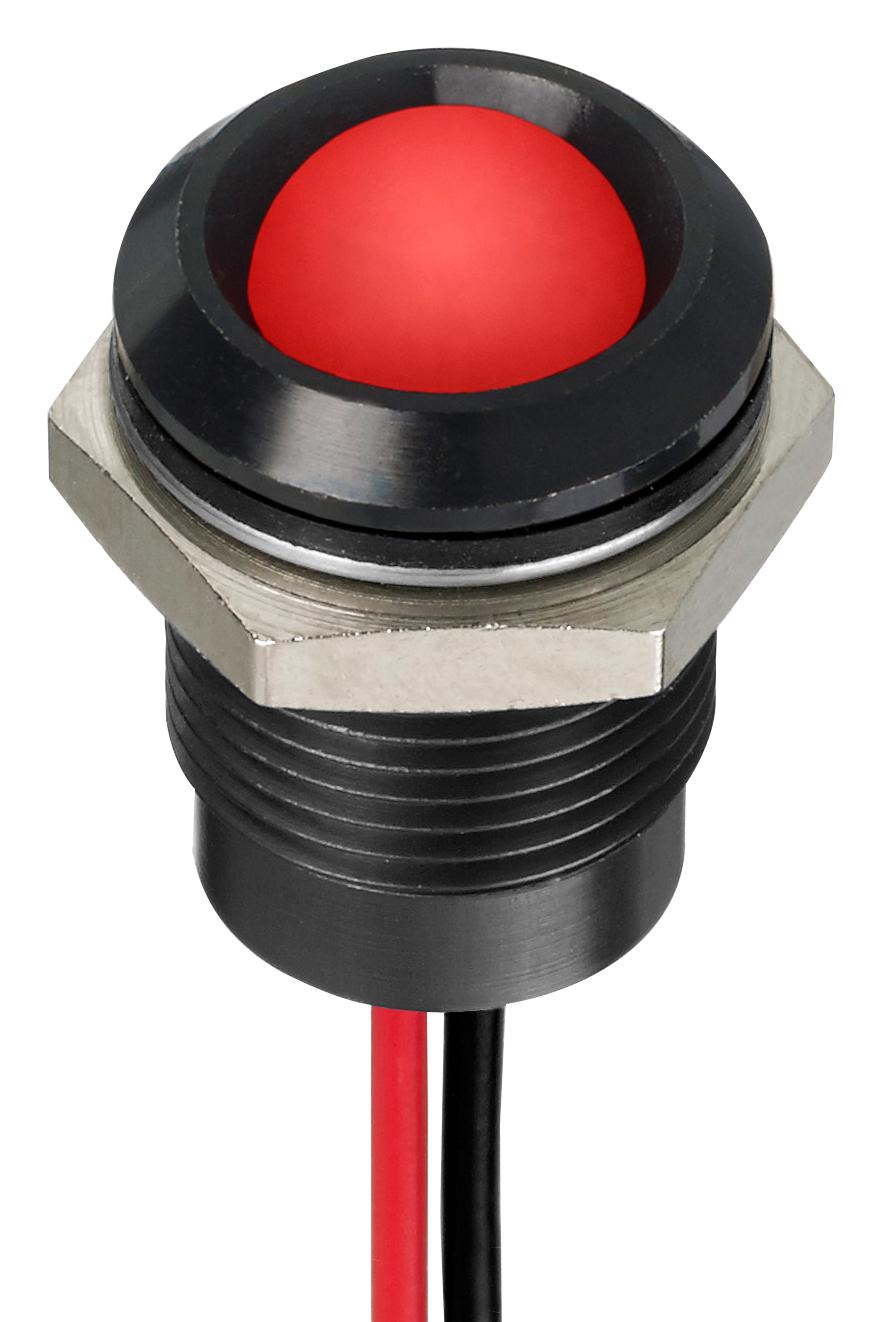

Apem Q14P5BXXHR24E Panel Mount LED Indicator
The Q14 series panel mount LED indicators feature 14 mm diameter, bright, super-bright, and RGB options with water-clear or diffused epoxy lenses. They offer prominent bezel styles including flush and recessed, with various terminal connectors like solder lug, faston, or rear epoxy wires. Designed for durability, these indicators are sealed with IP67 sealing options, support operating temperatures from -40°C to +85°C depending on body type, and have a life expectancy of 100,000 hours. They are suitable for industrial control panels requiring high visibility and environmental resistance.
Apem Q14P5BXXHR24E Panel Mount LED Indicator Specifications:
- Lens Size: 14 mm diameter
- Lens Types: Water clear or diffused epoxy
- LED Colors: Red, Green, Yellow, Blue, White, Orange, RGB, Bi-color, Tri-color
- Operating Temperature: -40°C to +85°C (rear epoxy body), -30°C to +65°C (plastic body)
- Lifespan: 100,000 hours
- Viewing Angle: 30-100° (model dependent)
- Max Reverse Voltage: 5 V
- Sealing: IP67 optional
- Material: Moulded polycarbonate rear body, plated brass bezel in chrome, black or satin grey
- Panel Thickness: Max 11 mm
- Mounting: M14x1.0 threaded bezel
- Terminals: Solder lug, faston, rear epoxy wires, short body pins
- Operating Currents: 20 mA typical
- Voltage Range: 1.8 VDC to 240 VAC/DC depending on model
- Life Expectancy: 100,000 hours
Buy the APEM Series Q14 LED: 14 mm Panel Mount Indicator Part Number Q14P5BXXHR24E
Order the APEM Panel Mount LED Indicator Q14P5BXXHR24E online today to enhance your industrial control panels. These compact, high-brightness indicators are designed for durability with IP67 sealing options and support operating temperatures up to 85°C. Ideal for applications requiring high visibility, long life, and environmental resistance, they come in various colors, bezel styles, and terminal types for flexible integration. Ensure your control system’s clarity and reliability with this high-quality, easy-to-install indicator available for swift purchase online.
Get APEM Q14P5BXXHR24E today—built for high visibility and durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy Apem Q14P5BXXHR24E?
You can click on the BUY or RFQ button to purchase Q14P5BXXHR24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14P5BXXHR24E?
You can download the Q14P5BXXHR24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q14P5BXXHR24E?
Apem
