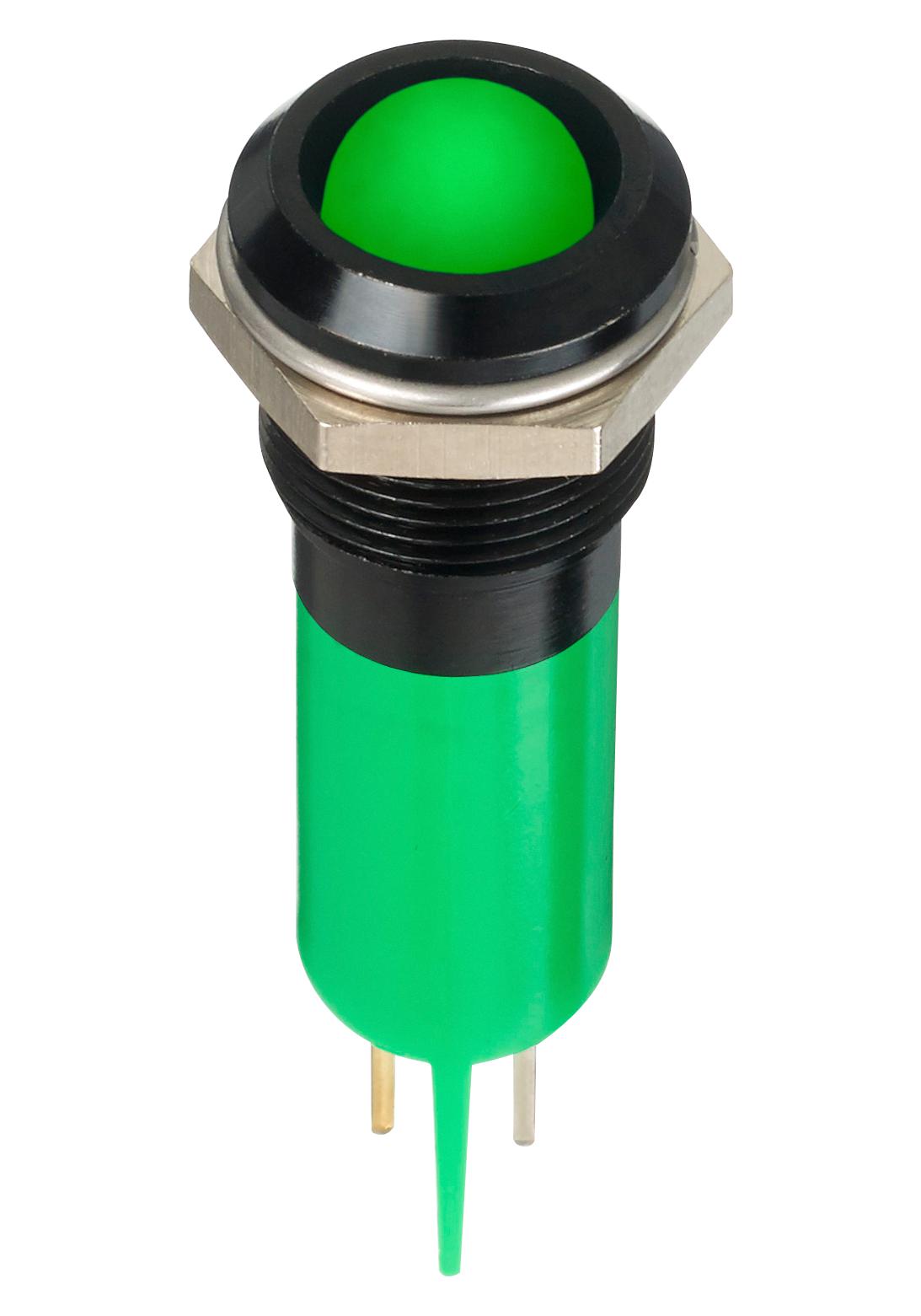

Apem Q12P1BXXG12 Panel Mount LED Indicator
The Q series panel mount LED indicators are 12mm diameter with prominent bezels, offering various LED colors including red, green, blue, yellow, orange, white, and bi-color options. They feature diffused epoxy lenses or water-clear LEDs, with high brightness, IP67 sealing, and long life expectancy of 100,000 hours. Suitable for industrial applications, they operate from 2VDC to 220VAC, with multiple terminal configurations (solder lug, pins, wires). Their rugged design includes plated bezels, molded polycarbonate bodies, and optional sealing for harsh environments.
Apem Q12P1BXXG12 Panel Mount LED Indicator Specifications:
- Diameter: 12mm
- Lens options: Diffused epoxy or water-clear
- Bezel finish: Bright chrome, satin grey, or black chrome
- Sealing: IP67 (optional)
- Operating Voltage Range: 2VDC to 220VAC
- Maximum Reverse Voltage: 5V
- Viewing Angle: 30-100°
- Luminous Intensity: Up to 800 med (mcd) depending on color and current
- Lifespan: 100,000 hours
- Operating Temperature: -40°C to +85°C
- Electrical connections: Solder lug, faston, pins, or wires (200mm)
- Maximum Operating Current: 20mA
- Panel Cutout: 12mm
- Panel Thickness: up to 7mm
- Max Voltage for pins/wires: 28V
- Certifications: UL Recognized, IP67 sealed option available
Buy the APEM Q12P1BXXG12 – Reliable Indicator for Industrial Applications
Purchase the APEM panel mount LED indicator today—engineered for industrial use with high brightness, IP67 sealing, and long-lasting performance. These 12mm indicators come in multiple colors, including bi-color options, with diffused epoxy lenses or water-clear LEDs. They feature rugged plated bezels, molded polycarbonate bodies, and various terminal options like solder lug, faston, pins, or wires. Suitable for panel thickness up to 7mm, operating from 2VDC to 220VAC, they are perfect for control panels, machinery, and automation systems requiring reliable visual indicators.
Get APEM Q12P1BXXG12 today—designed for precision, durability, and versatile installation in industrial environments.
Frequently Asked Questions
Where can I buy Apem Q12P1BXXG12?
You can click on the BUY or RFQ button to purchase Q12P1BXXG12 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q12P1BXXG12?
You can download the Q12P1BXXG12 datasheet or visit the Apem website for support.
Who is the manufacturer of Q12P1BXXG12?
Apem
