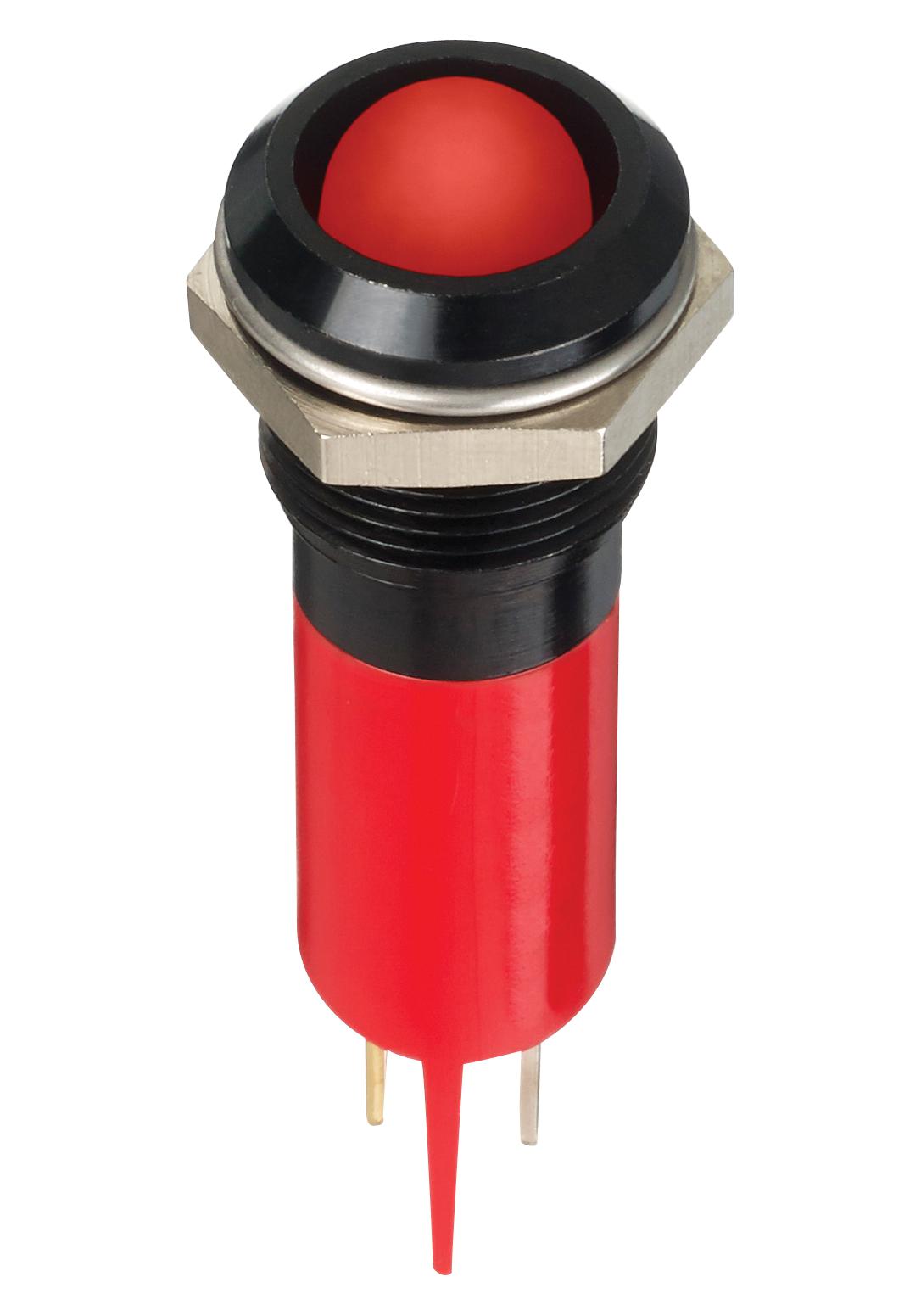

Apem Q12P1BXXR12 LED Indicator
The Q12 Series panel mount LED indicators feature a 12mm diameter with prominent bezel design, available in multiple colors such as green, yellow, blue, white, orange, and bi-color options. They offer high brightness with super-bright, hyper-bright, or standard LEDs and are suitable for panel sealing up to IP67. These indicators operate across a wide voltage range from 2VDC to 220VAC, with a life expectancy exceeding 100,000 hours, and have mounting options that include solder lug, faston terminals, pins, or long wire leads, making them versatile for various industrial applications.
Apem Q12P1BXXR12 LED Indicator Specifications:
- Diameter: 12mm
- Lens Types: Diffused epoxy, water clear
- Bezel Finish Options: Bright chrome, black chrome, satin grey
- Mounting: Prominent bezel, panel sealed IP67, fixing nut and spring washer included
- Electrical: 2VDC to 220VAC operating voltage, max reverse voltage 5V, operating current 20mA
- Viewing Angle: 30-100° depending on model
- Life Span: 100,000 hours typical
- Operating Temperature: -40 to +85°C
- Sealing: IP67 option available
- Terminals: Solder lug, faston, pins, or 200mm wire leads
- Panel Cutout: 12mm
- Certifications: UL Recognized
Buy the Buy APEM LED Indicators Part Number Q12P1BXXR12 Online
Purchase the APEM Q12 Series LED indicators online now to enhance your control panels and industrial equipment. With options in multiple colors, high brightness, and IP67 sealing, these indicators provide excellent visibility and durability. Operating across a wide voltage range from 2VDC to 220VAC, they suit various power supplies. Their long lifespan of over 100,000 hours and sturdy mounting options make them a dependable choice for industrial, automation, and control applications. Order today for fast delivery and reliable performance.
Order your APEM Series Q12 LED Indicator with 12mm prominent bezel today and ensure your industrial panels are highly visible and reliable.
Frequently Asked Questions
Where can I buy Apem Q12P1BXXR12?
You can click on the BUY or RFQ button to purchase Q12P1BXXR12 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q12P1BXXR12?
You can download the Q12P1BXXR12 datasheet or visit the Apem website for support.
Who is the manufacturer of Q12P1BXXR12?
Apem
