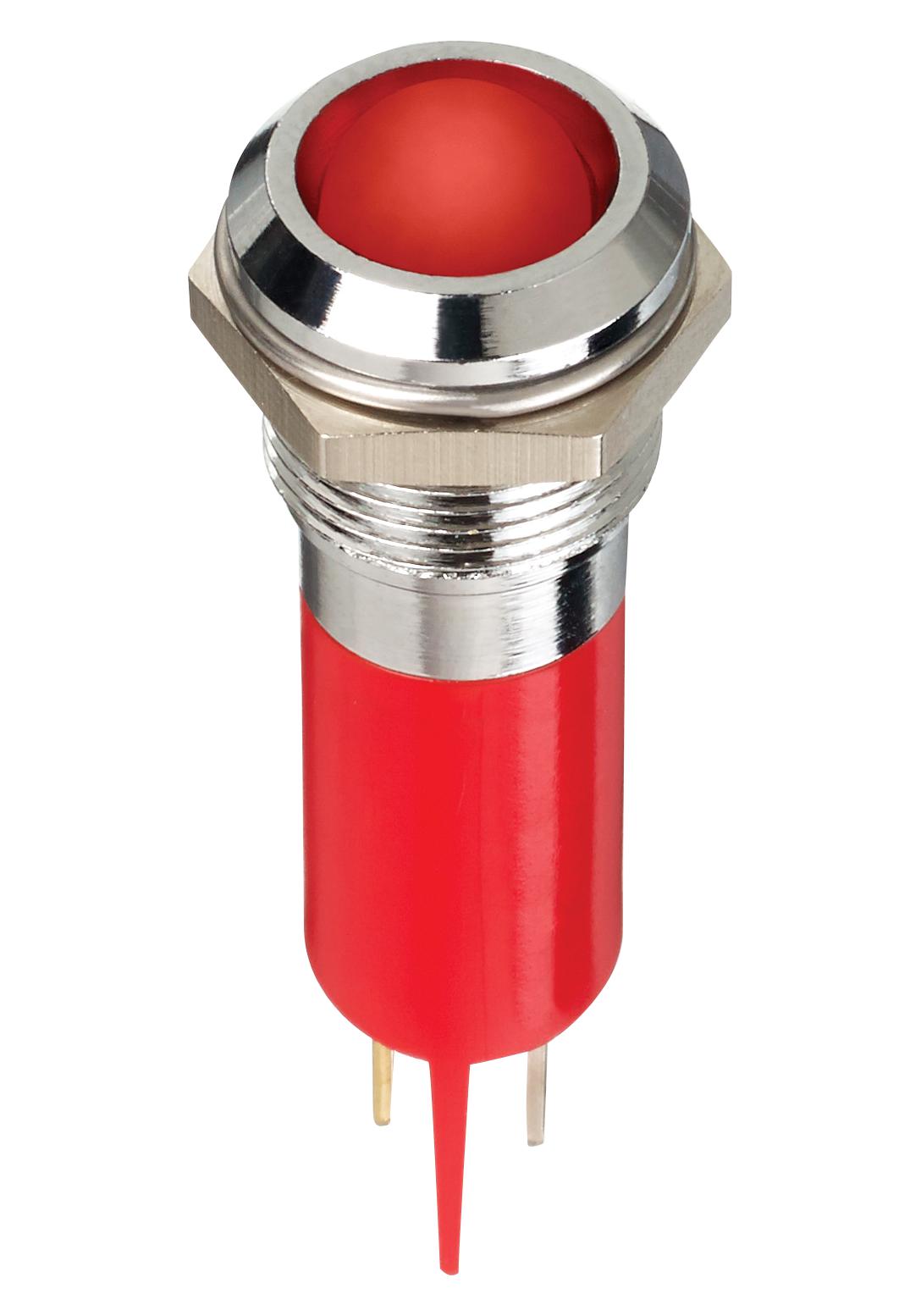

Apem Q12P1CXXHR220E Panel Mount LED Indicator
The Q12 Series panel mount LED indicators feature a 12mm diameter with a prominent bezel and options for diffused epoxy or water-clear LEDs. Available in various colors including red, green, yellow, blue, and orange, with bi-color and tri-color configurations. Suitable for panel thicknesses up to 7mm, they incorporate a bright chrome, satin grey, or black chrome bezel, with sealed IP67 options. Operating from 2VDC to 220VAC, they deliver a lifespan of up to 100,000 hours, with multiple termination and mounting options for versatile installation in industrial applications.
Apem Q12P1CXXHR220E Panel Mount LED Indicator Specifications:
- Diameter: 12mm (.472")
- Bezel Finish: Bright Chrome, Satin Grey, Black Chrome
- Lens: Diffused epoxy or water-clear water LEDs
- Operating Voltage: 2VDC to 220VAC
- Current: 20mA maximum
- IP67 sealing option available
- Lifespan: 100,000 hours
- Temperature Range: -40°C to +85°C
- Panel Thickness: Up to 7mm
- Max Reverse Voltage: 5V
- Viewing Angle: 30-100°
- Terminals: Solder lug, faston, pins or 200mm wire
- Certifications: UL Recognized
- Installations: Suitable for industrial control panels
Buy the Buy APEM LED Indicator Part Number Q12P1CXXHR220E Online
Purchase the high-quality APEM LED indicator part number Q12P1CXXHR220E online to ensure robust and reliable performance in industrial environments. Featuring a 12mm diameter with various color options like red, green, yellow, and blue, these indicators are designed for panel thickness up to 7mm. They operate seamlessly from 2VDC to 220VAC, with a lifespan of 100,000 hours. The sealed IP67 version guarantees protection against dust and water, making them ideal for control panels, automation, and machinery indicator applications. Easy to install with multiple termination options and a robust construction for long-term use.
Buy APEM Q12P1CXXHR220E now and experience unmatched reliability and performance with IP67 sealing and large display visibility.
Frequently Asked Questions
Where can I buy Apem Q12P1CXXHR220E?
You can click on the BUY or RFQ button to purchase Q12P1CXXHR220E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q12P1CXXHR220E?
You can download the Q12P1CXXHR220E datasheet or visit the Apem website for support.
Who is the manufacturer of Q12P1CXXHR220E?
Apem
