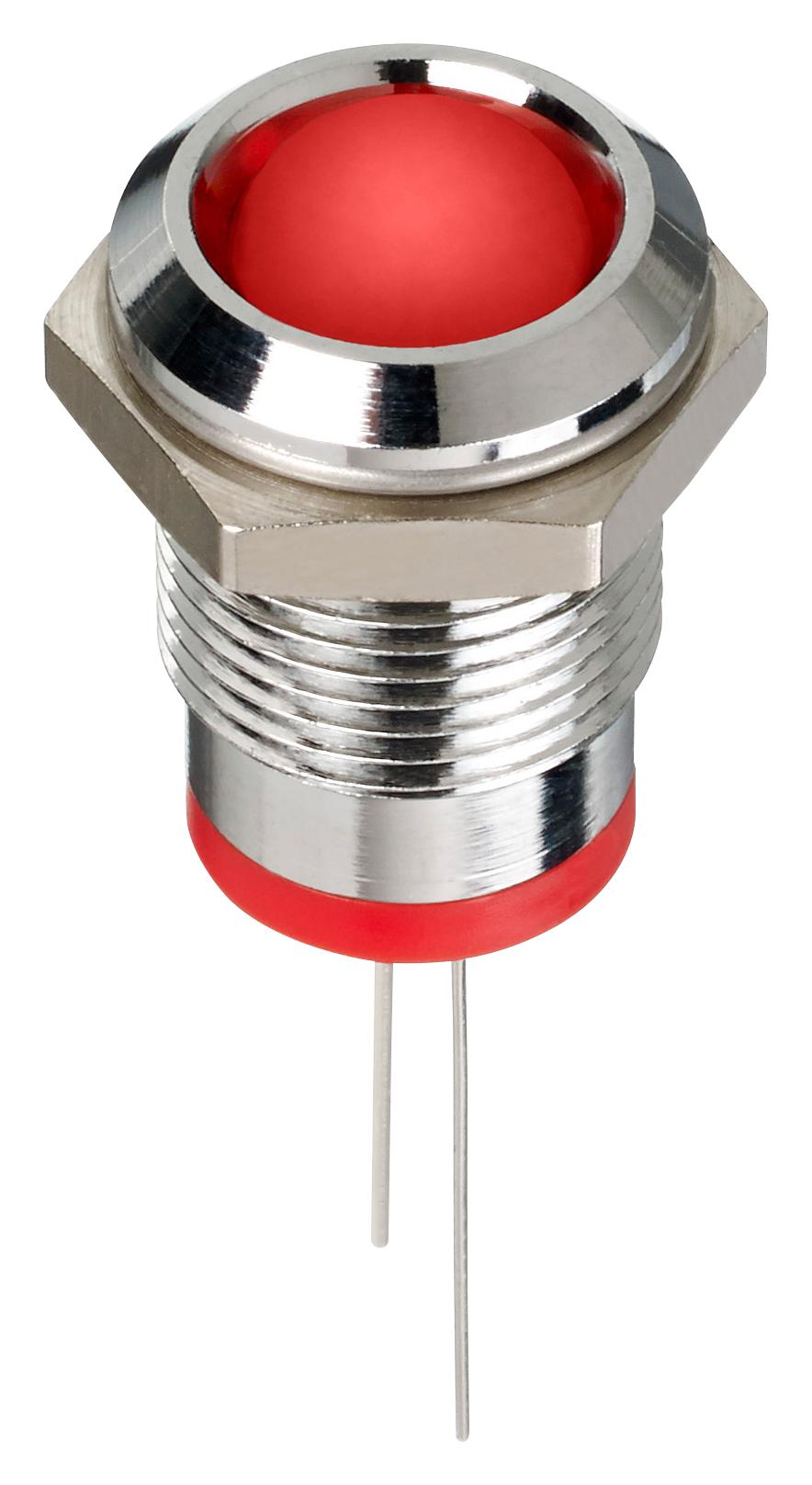

Apem Q14P6CXXR02 Panel Mount LED Indicator
The Q Series 014mm panel mount LED indicators feature a 14mm diameter and are designed for reliable visual signaling in industrial applications. These LEDs come with prominent, flush bezels finished in bright chrome, black chrome, or satin grey, and are available with diffused epoxy lenses or water-clear super bright LEDs. They support multiple voltages from 2VDC to 220VAC, feature IP67 sealing options, and are supplied with fixing nuts and spring washers. The indicators are UL recognized, with a maximum reverse voltage of 5V and a life expectancy of 100,000 hours, suitable for panel sealing and custom engraving options.
Apem Q14P6CXXR02 Panel Mount LED Indicator Specifications:
- Diameter: 14mm (.551 inch)
- Bezel finishes: Bright chrome, black chrome, satin grey
- Lens types: Diffused epoxy or water-clear super bright LEDs
- Voltage range: 2VDC to 220VAC
- Operating current: 20mA (typically)
- Max reverse voltage: 5V
- Viewing angle: 30-100° (dependent on model)
- Life expectancy: 100,000 hours
- Temperature range: -40 to +85°C
- Sealing: IP67 (optional)
- Terminals: Solder lug, Faston, pins, or 200mm wire
- Max panel thickness: 11mm
- UL Recognized component
- Solder temperature: 300°C for 3 seconds
Buy the APEM Q14P6CXXR02 – Reliable LED Indicators for Industrial Applications
Purchase the APEM Panel Mount LED Indicator online today for high reliability and precision signaling. Perfect for industrial control panels, these indicators feature IP67 sealing, multiple voltage options, and customizable bezels with engraved symbols. Easy to mount with included nuts and washers, they offer a lifespan of 100,000 hours under extreme conditions. Whether you need diffused or super bright LEDs in various colors, this product ensures clear visibility and long-lasting performance, suitable for demanding industrial environments. Buy now for quick delivery and quality assurance.
Get APEM Q14P6CXXR02 today—designed for durability and clear visual signaling in demanding environments.
Frequently Asked Questions
Where can I buy Apem Q14P6CXXR02?
You can click on the BUY or RFQ button to purchase Q14P6CXXR02 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14P6CXXR02?
You can download the Q14P6CXXR02 datasheet or visit the Apem website for support.
Who is the manufacturer of Q14P6CXXR02?
Apem
