Apem QRM85BXXR02E LED Indicator

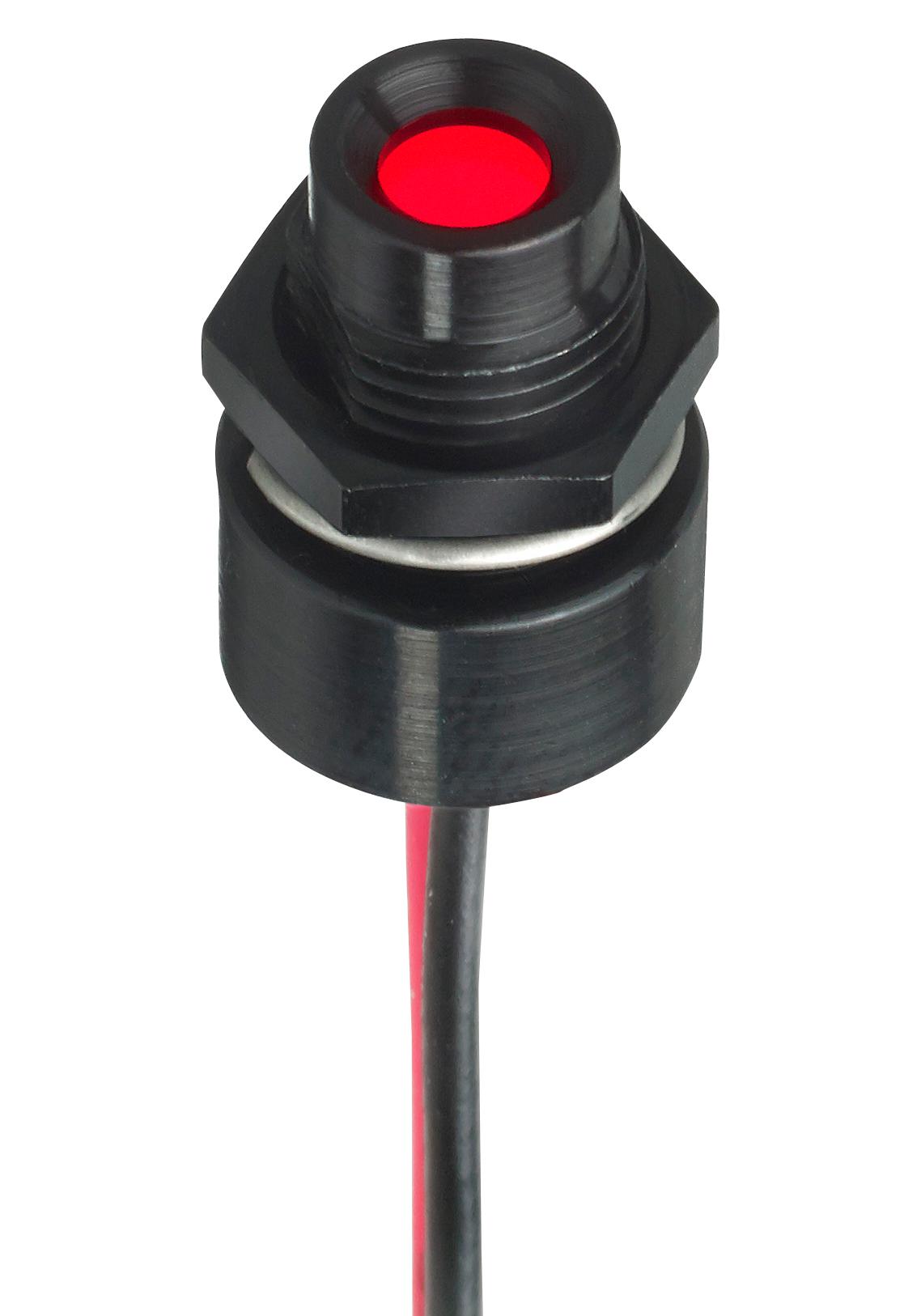

The QRM85BXXR02E is an 8 mm rear panel mount LED indicator designed for industrial applications. It features hyper bright and super bright LED options with various color options including red, green, yellow, blue, and white. The series supports bi-color and tri-color configurations, with a viewing angle of 60° and an operating temperature range of -40°C to +85°C. Made with durable materials like black plated brass or anodized aluminum, it ensures longevity with a life expectancy of 100,000 hours. Suitable for use in demanding environments with IP67 sealing options, these LEDs are ideal for panel indication and automation systems.
Apem QRM85BXXR02E LED Indicator Specifications:
- Illumination Colors: Red, Green, Yellow, Blue, White, Bi-color, Tri-color options
- LED Intensity: Hyper Bright, Super Bright
- Viewing Angle: 60°
- Max Reverse Voltage: 5 V
- Operating Voltage: 1.8 to 28 VDC (varies with color/type)
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -55°C to +100°C
- Body Material: Black plated brass or anodized aluminum
- Sealing: IP67 (optional)
- Dimensions: 8 mm diameter, maximum panel thickness 3.5 mm
- Wire Length: Standard 200 mm, 24 AWG UL1061
- Wave formed terminals, locking nuts, epoxy terminal seal, nitrile O-ring
- Life Expectancy: 100,000 hours
- Torque: 60 cNm
Buy the APEM QRM85BXXR02E – Reliable LED Indicators for Industrial Applications
Enhance your machinery or automation panel with the QRM85BXXR02E LED indicator, offering high brightness, durable construction, and versatile color options. Whether for status indication or signaling, this 8 mm rear mount LED combines reliability with ease of installation. Its wide operating temperature range and IP67 sealing make it suitable for harsh industrial environments. Purchase online today to ensure your projects benefit from high-quality, long-lasting LED signaling components that meet demanding industrial standards and improve operational efficiency.
Order your APEM Series QRM85BXXR02E today and enhance your automation systems with dependable, high-lumen LED indicators designed for demanding industrial environments.
Frequently Asked Questions
Where can I buy Apem QRM85BXXR02E?
You can click on the BUY or RFQ button to purchase QRM85BXXR02E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part QRM85BXXR02E?
You can download the QRM85BXXR02E datasheet or visit the Apem website for support.
Who is the manufacturer of QRM85BXXR02E?
Apem
