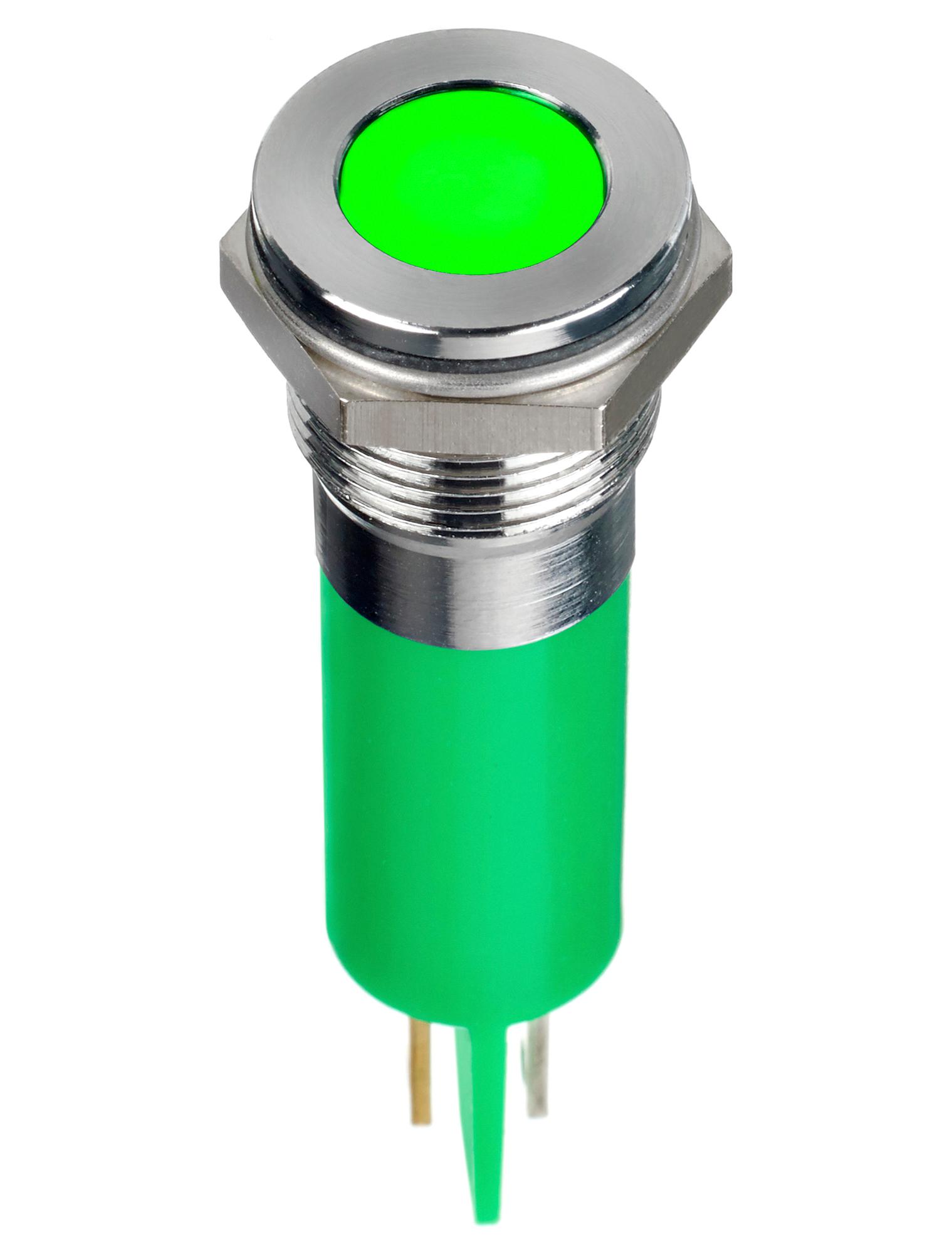

Apem Q14F1CXXG02E LED Indicator
The Q14 series LED indicators are 14 mm panel-mount units designed for industrial applications requiring high visibility and durability. Featuring water clear or diffused epoxy lenses, these indicators come with prominent and recessed bezel styles, IP67 sealing, and a variety of terminal options including solder lug, faston, and wire terminations. They operate in temperatures from -40°C to +85°C, with an impressive lifespan of 100,000 hours. Suitable for various voltages and color options, they offer robust construction with plated brass bezels and polycarbonate bodies for reliable performance in challenging environments.
Apem Q14F1CXXG02E LED Indicator Specifications:
- Lens Size: 14 mm, diffused epoxy or water clear
- Bezel Material: Plated brass, finished in bright chrome, black, or satin grey
- Operating Temperature Range: -40°C to +85°C (-40°F to +185°F)
- Sealing: IP67 (waterproof option available)
- Max Reverse Voltage: 5 V
- Viewing Angle: 30-100° (dependant on model)
- Life Expectancy: 100,000 hours
- Maximum Panel Thickness: 11 mm
- Electrical Voltage Options: 1.8 to 33 VDC, 6 VDC, 12 VDC, 24 VDC, 28 VDC, 110 VAC, 220 VAC
- Current: Up to 20 mA depending on voltage
- LED Colors: Red, Green, Yellow, Blue, White, Orange, RGB, Tri-color
- LED Intensity: Standard, Super Bright, Hyper Bright options
- Mounting Hole: M14x1.0 thread
- Terminals: Solder lug, faston (28 x 0.8), short body pins, rear epoxy wires
- Additional Features: Custom engraving available, various bezel styles, rugged design for industrial environments
Buy the APEM Q14F1CXXG02E – Reliable LED Indicators for Industrial Applications
Enhance your industrial control panels with the Q14 series LED indicators, featuring IP67 sealing, vivid illumination in multiple colors, and long-lasting performance. Designed for easy panel mounting with M14x1.0 threads, these indicators come with a variety of terminal options including solder lug, faston, and wire connections. Their rugged construction withstands harsh environments with operating temperatures from -40°C to +85°C and a lifespan of 100,000 hours. Perfect for machinery, automation, and safety systems, they ensure reliable visual signaling in demanding applications.
Buy APEM Q14F1CXXG02E LED indicators now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy Apem Q14F1CXXG02E?
You can click on the BUY or RFQ button to purchase Q14F1CXXG02E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14F1CXXG02E?
You can download the Q14F1CXXG02E datasheet or visit the Apem website for support.
Who is the manufacturer of Q14F1CXXG02E?
Apem
