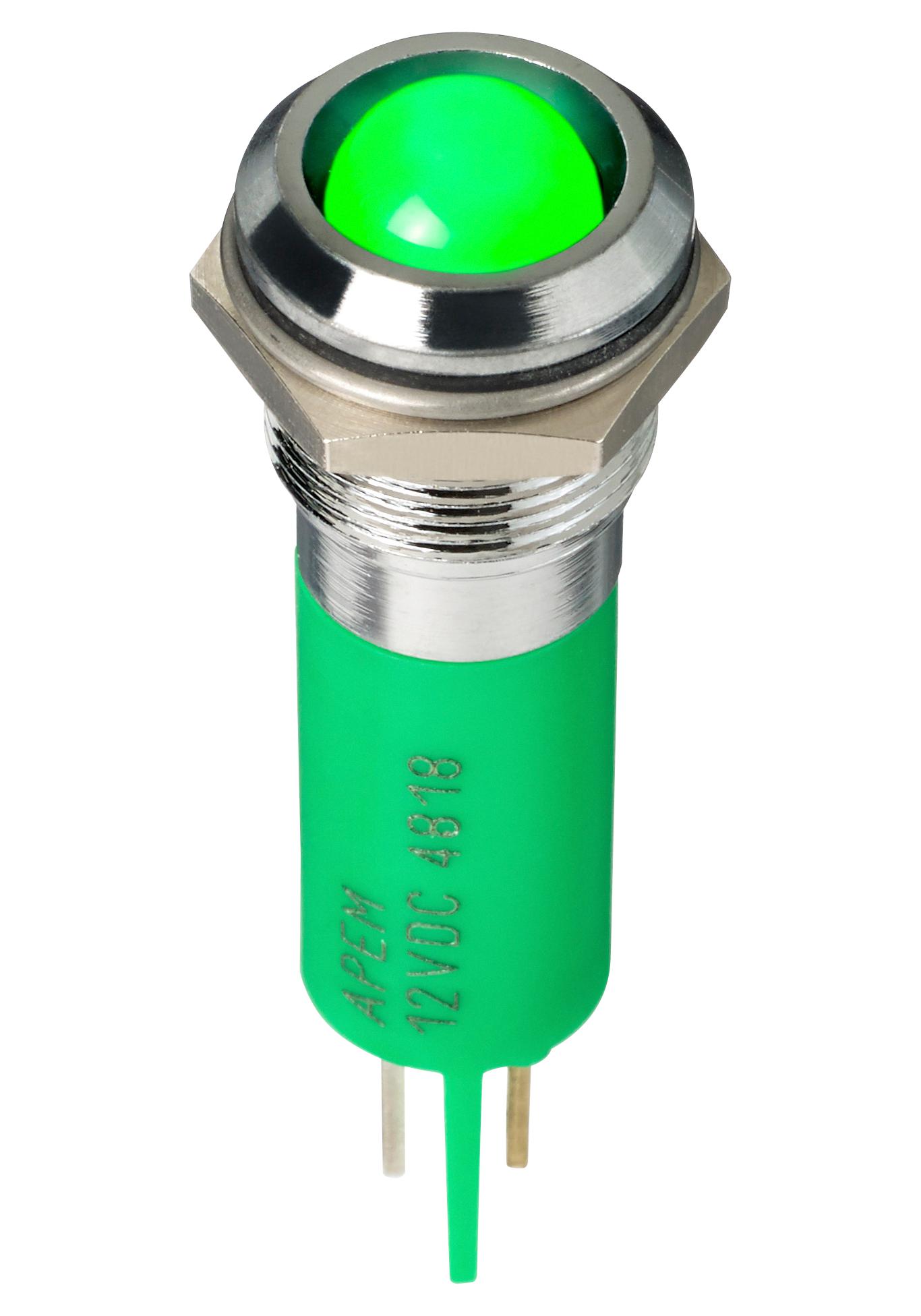

Apem Q127P1CXXHG12E Panel Mount LED Indicator
The Q12-7 series are 12.7 mm (0.5 inch) panel mount LED indicators designed for industrial environments, offering high brightness with super bright and hyper bright LED options. They feature a durable bezel, water-resistant sealing (IP67 option), and versatile mounting styles with solder lug, faston terminals, pins, or long wires. Operating from 2V DC to 220VAC, they are ideal for status indication in control panels, automation, and machinery, with a life expectancy of 100,000 hours and environmental resistance up to +85°C or -40°C depending on the body material.
Apem Q127P1CXXHG12E Panel Mount LED Indicator Specifications:
- Diameter: 12.7 mm (0.5 inch)
- Material: Plated brass bezel, molded polycarbonate rear body
- Sealing: IP67 sealing option (EN60529)
- Operating Voltage: 2V DC to 220VAC
- Operating Temperature Range: -40°C to +85°C (epoxy body) / -30°C to +65°C (plastic body)
- Lens: 8 mm diffused epoxy or water clear
- LED Brightness: Super bright and Hyper bright options, with forward voltages ranging from 2.1V to 33V
- Viewing Angle: 30° to 100° depending on model
- Life Expectancy: 100,000 hours
- Mounting: Panel thickness up to 7 mm, various bezel finishes including bright chrome, black, and satin grey
- Terminals: Solder lug, faston, pins, or 200 mm wire terminations
- Max Reverse Voltage: 5 V
- Physical Dimensions: Approximately 12.7 mm diameter, with mounting hole size 12.7 mm
- Environmental Resistance: Suitable for industrial application, sealed with IP67 option
Buy the ELECTRONIC COMPONENTS Q12-7 – Reliable LED Indicators for Industrial Applications
Purchase the Q12-7 series LED indicators online today to enhance your control panels with high brightness illumination and reliable performance. These indicators feature durable bezels, both plastic and epoxy options, IP67 sealing for water resistance, and a versatile range of termination styles including solder lug, faston, pins, or long wires. Operating from 2V to 220VAC, they ensure long-lasting visibility and performance in harsh industrial conditions, with a life expectancy of 100,000 hours. Order now for fast delivery and comprehensive support to upgrade your automation and control systems.
Get Q12-7 series LED indicators today—built for precision, durability, and high brightness in industrial environments.
Frequently Asked Questions
Where can I buy Apem Q127P1CXXHG12E?
You can click on the BUY or RFQ button to purchase Q127P1CXXHG12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q127P1CXXHG12E?
You can download the Q127P1CXXHG12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q127P1CXXHG12E?
Apem
