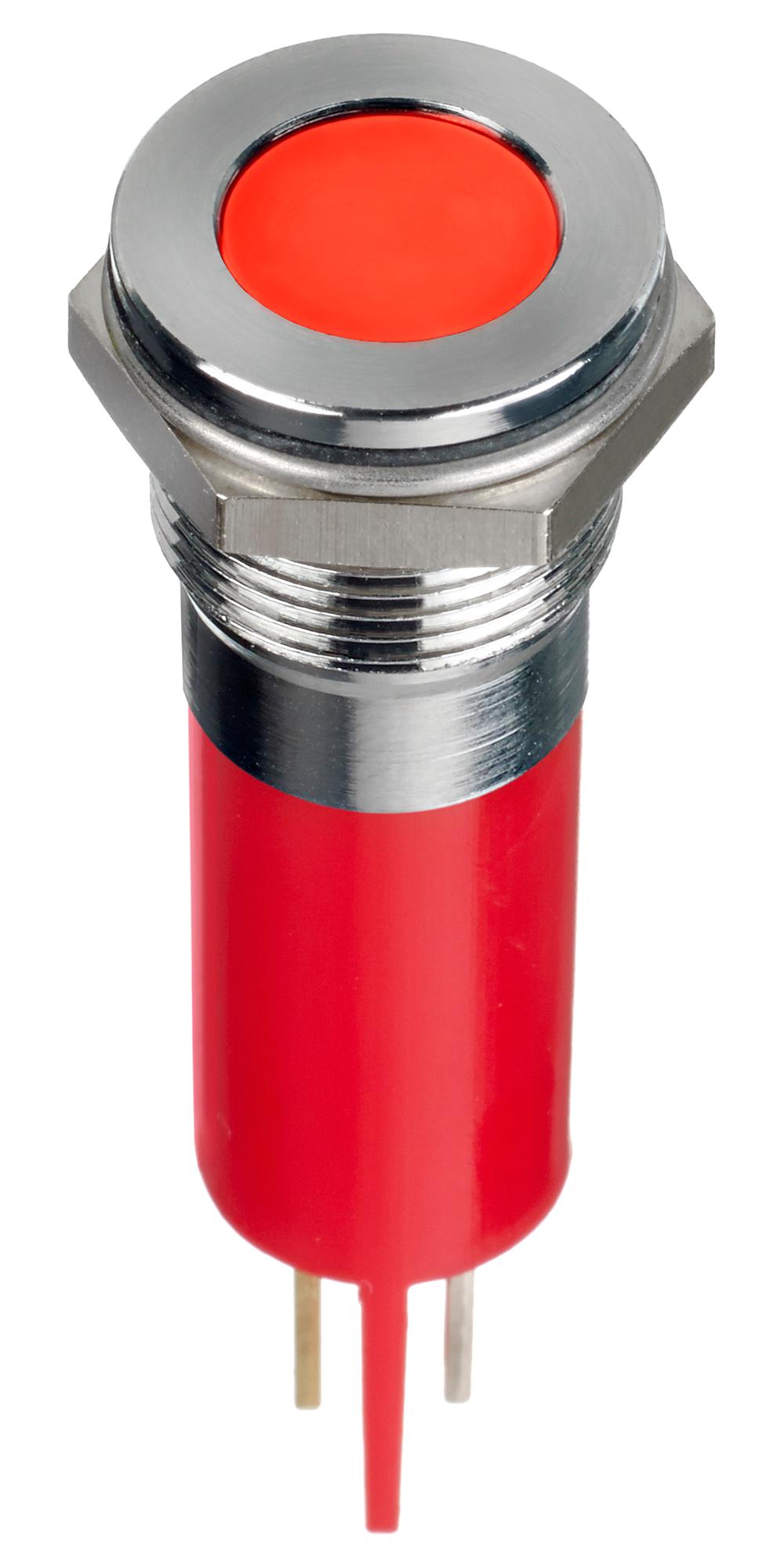

Apem Q14F1CXXR02E Panel Mount LED Indicator
The Q14 series are 14 mm panel mount LED indicators designed for high visibility in various industrial applications. They feature water-clear or diffused epoxy lenses, with bright LEDs available in multiple colors including RGB options. The indicators are sealed to IP67, suitable for harsh environments, and come with multiple mounting and terminal options such as solder lug, faston, pins, or wire terminations. Operating temperature ranges from -30°C to +85°C, with a life expectancy of 100,000 hours, making them ideal for signaling and indicator functions in control panels and machinery.
Apem Q14F1CXXR02E Panel Mount LED Indicator Specifications:
- Lens: 10 mm water clear or diffused epoxy
- Operating Temperature: -30°C to +85°C
- Ingress Protection: IP67 sealed option available
- LED Life Expectancy: 100,000 hours
- View Angle: 30-100° depending on model
- Reverse Voltage: Max 5 V
- Panel Thickness: Max 11 mm
- Material: Plated brass bezel in chrome, black, satin grey; Moulded polycarbonate rear body
- Mounting Hole: 14x1.0 mm
- Terminal Types: Solder lug, faston, short body pins, rear epoxy wires
- Power Supply: 1.8 V to 33 V DC, 6 V to 110 VAC, 12 V to 220 VAC options
- LED Colors: Red, Green, Yellow, Blue, White, Orange, RGB, Tri-color
- LED Intensities: Standard, super bright, and hyper bright options available
- Connection: Rear epoxy wires (200 mm), solder lug, faston terminals, pins
- Custom engraving: Available with standard white infill
Buy the APEM Series Q14 LED: 14 mm Panel Mount Indicators: Q14F1CXXR02E
Order the high-performance Panel Mount LED Indicator from our extensive online catalog. Designed for durability and visibility in demanding environments, it features IP67 sealing, multiple LED color options including RGB, and versatile mounting with solder lug, faston, or wire terminals. Operating temperature ranges from -30°C to +85°C, ensuring functionality across various conditions. With a life expectancy of 100,000 hours and high-intensity LED options, this indicator is perfect for control panels, machinery, and signaling applications. Purchase now for fast, secure delivery and elevate your industrial signaling solutions.
Buy APEM Q14F1CXXR02E now and experience unmatched reliability and performance in industrial signaling applications with high brightness LED indicators.
