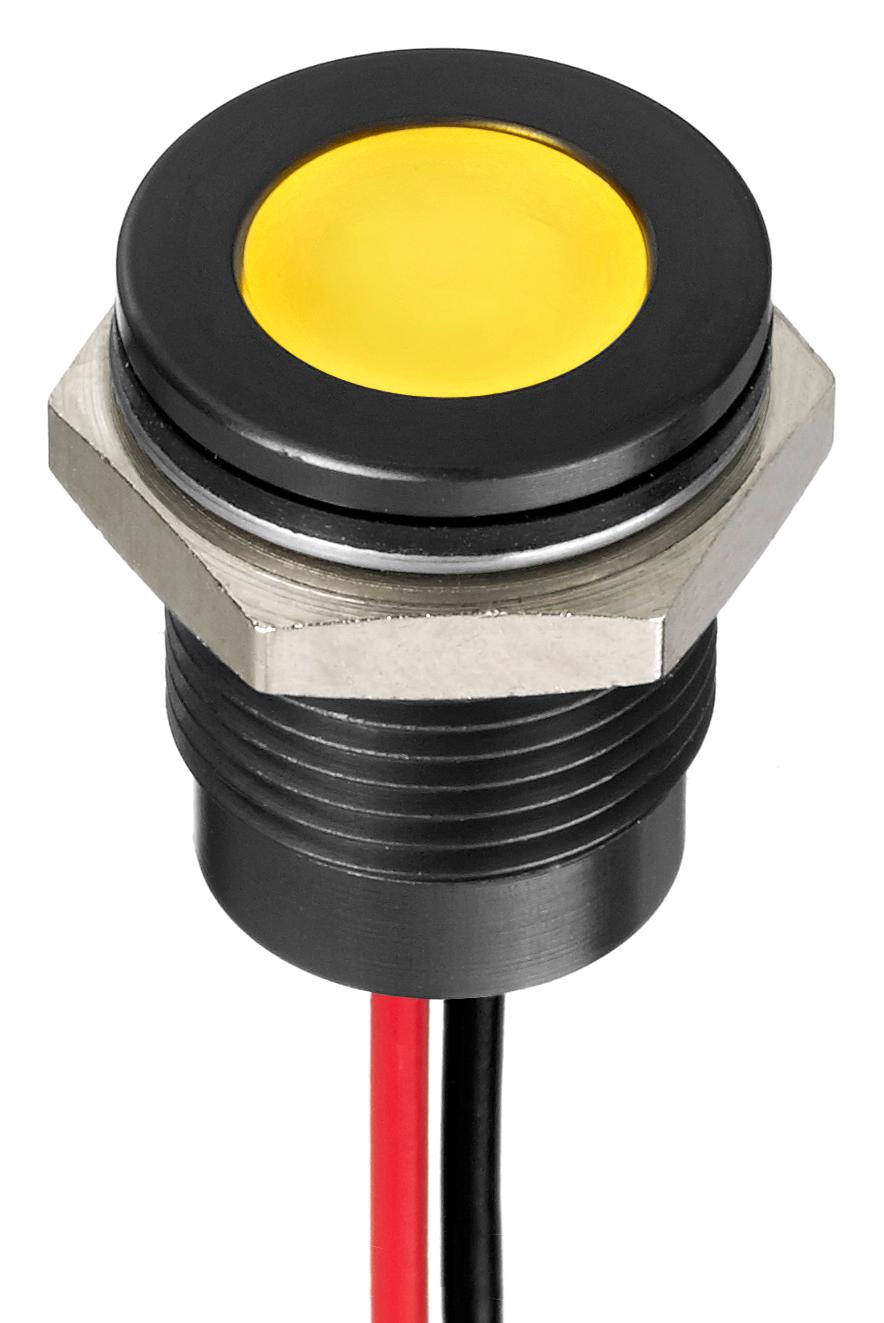

Apem Q14F5BXXHY12E LED Indicator
The Q14 series are 14 mm panel mount LED indicators designed for industrial applications, featuring water-clear or diffused epoxy lenses, prominent and recessed flush bezel styles, and various terminal options including solder lug, faston terminals, pins, or 200 mm long wires. They offer high brightness LEDs with a life expectancy of 100,000 hours, IP67 sealing option, and operate within temperature ranges from -40°C to +85°C. Available in multiple colors including RGB, they are suitable for alerting and status indication in demanding environments.
Apem Q14F5BXXHY12E LED Indicator Specifications:
- Lens Types: 10 mm diffused epoxy or water clear
- Bezel Finish: Bright chrome, black, satin grey
- Max Panel Thickness: 11 mm
- Sealing: IP67 option available
- Operating Temp Range: Rear plastic -30°C to +65°C, Rear epoxy -40°C to +85°C
- Life Expectancy: 100,000 hours
- Viewing Angle: 30-100°
- Reverse Voltage: Max 5 V
- LED Colors: Red, Green, Yellow, Blue, White, Orange, RGB, Bi-color, Tri-color
- LED Voltages: 2V to 33V DC/AC, Hyper Bright and Super Bright options available
- Mounting: M14x1.0 threaded bezel, flush, recessed styles
- Current: Up to 20 mA depending on LED type
- Materials: Moulded polycarbonate rear body, plated brass bezel
- Electrical Connections: Solder lug, faston terminals, pins, or 200 mm long wires
Buy the ACME Q14F5BXXHY12E – Reliable LED Indicator for Industrial Applications
Purchase the Q14 series LED indicator online today and ensure your industrial systems are equipped with durable, bright, and reliable signaling components. These indicators feature IP67 sealing, high lumen LEDs, and versatile mounting options, making them ideal for harsh environments. With a life expectancy of 100,000 hours and multiple color options including RGB and bi-color, they deliver excellent visibility and performance. Whether for alert systems, control panels, or status indication, buying online ensures fast delivery and trusted quality for your critical applications.
Order your ACME Series Q14F5BXXHY12E today and enhance your industrial projects with dependable, high-brightness LED indicators designed for demanding environments.
Frequently Asked Questions
Where can I buy Apem Q14F5BXXHY12E?
You can click on the BUY or RFQ button to purchase Q14F5BXXHY12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14F5BXXHY12E?
You can download the Q14F5BXXHY12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q14F5BXXHY12E?
Apem
