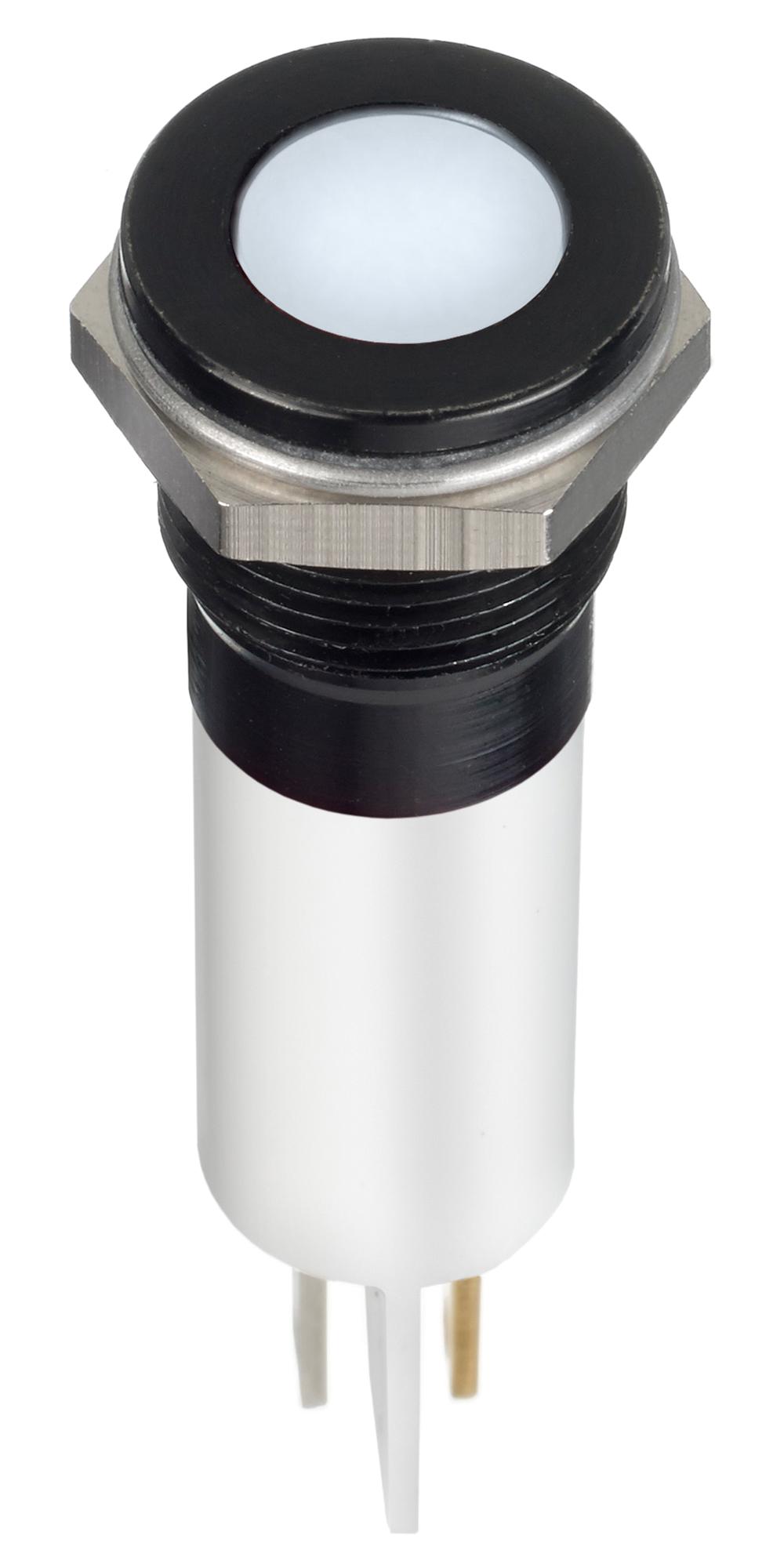

Apem Q14F1CXXW02E LED Indicator
The Q14 series panel mount LED indicators are 14 mm diameter fixtures designed for industrial and electronic panel applications. Featuring super bright and hyper-bright LEDs in various colors, they offer high visibility with diffused epoxy lenses or water clear lenses. The indicators have different mounting options including flush, recessed, and prominent bezels, with several terminal configurations such as solder lug, faston, and wire terminations. They are suitable for environments requiring IP67 sealing, operate within -40°C to +85°C, and include options for custom engraving, RGB colors, and various sourcing voltages. Constructed with plated brass bezels and molded polycarbonate bodies, these indicators are durable, suitable for high-reliability use in industrial automation and control systems.
Apem Q14F1CXXW02E LED Indicator Specifications:
- Lens Type: 10 mm diffused epoxy or water clear
- Colors Available: Red, Green, Yellow, Blue, White, Orange, RGB, Bi-color, Tri-color
- Maximum Panel Thickness: 11 mm
- Operating Temperature Range: -30°C to +85°C depending on body type
- Sealing: IP67 option available
- Voltage Range: 1.8 VDC to 235 VAC depending on model
- Electrical Life Expectancy: 100,000 hours
- Viewing Angle: 30-100° depending on model
- Max Reverse Voltage: 5 V
- Operating Current: up to 20 mA
- Materials: Plated brass bezel, molded polycarbonate rear body
- Mounting: M14x1.0 threaded bezel, flush, recessed, prominent styles
- Terminals: Solder lug, faston, rear epoxy wires
- Environmental Resistance: Sealed, IP67 option available
- Additional Features: Custom engraving, RGB options, various terminal configurations
Buy the Build Your Part Series – Reliable LED Indicators for Industrial Applications
Purchase the Q14 series LED indicators online today to enhance your industrial control system with high brightness, durable construction, and customizable options. These 14 mm panel mount indicators are ideal for various environments, offering IP67 sealing, multiple color choices, and different wiring configurations. Designed for long-lasting performance, they're perfect for automation, machinery, and control panels. Simplify your procurement process and ensure reliable operation by ordering this high-quality indicator directly from our online store now.
Get Q14 series LED indicators today—built for high durability, bright illumination, and versatile mounting options for industrial control panels.
